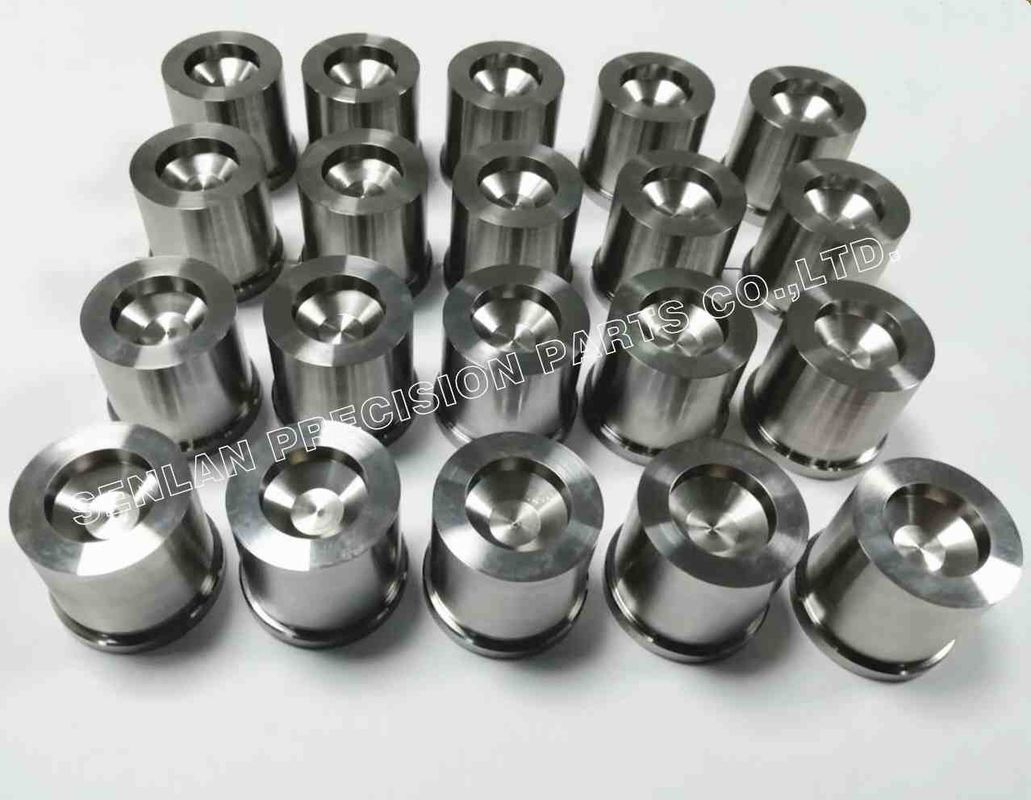

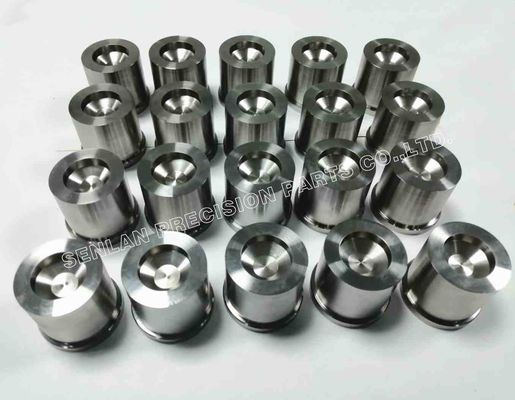

Custom Core Inserts for CNC-Machined Mold Parts
Core inserts are precision mold components that form critical internal features of injection-molded parts. Using core inserts instead of machining the core geometry directly into a full plate improves serviceability, accuracy control, and maintenance efficiency—especially for molds running high cycles or requiring frequent refurbishment.
Our custom core inserts are CNC-machined to customer drawings as part of our precision mold components manufacturing service. We focus on repeatable quality across single pieces and multi-piece sets, with controlled machining processes for datums, fits, concentricity/runout, surface finish, and interchangeability. Whether for new molds or replacement tooling, our core inserts are built to support stable assembly and consistent molding performance.
Product Description
A core insert (mold core) is a replaceable forming component typically installed on the moving half of an injection mold. It creates internal geometry such as bores, inner diameters, seating surfaces, channels, and functional interfaces—features that often determine whether the molded part assembles correctly and performs reliably.
Typical Characteristics
- Cylindrical or stepped geometries with controlled locating datums
- Functional forming zones require a fine surface finish
- Tight-fit installation features (shoulders, locating diameters, retention details)
- Replaceable design to reduce downtime and extend mold life
Common Design Elements
- Locating the diameter/shoulder for repeatable installation
- Forming tip profile or internal geometry features
- Relief/vent-related features as specified by the mold design
- Optional threaded sections or assembly interfaces (if required)
Materials, Heat Treatment & Finishing
Core insert material is selected based on wear, corrosion exposure, required polishability, and expected service life. Typical options include stainless mold steels and tool steels. Heat treatment and optional surface treatments/coatings can be applied according to your specification to improve hardness, wear resistance, and surface stability.
Applications
Custom core inserts are used in plastic injection molds for:
- New mold builds requiring insert-based core construction
- Replacement cores for maintenance and refurbishment
- Multi-cavity molds needing consistent core-to-core matching
- Molds with tight tolerance requirements where repeatability is essential
- Tooling programs that rely on interchangeable spare inserts to reduce downtime
(End products vary by customer design; we manufacture to your drawings and mold architecture.)
Precision & Manufacturing Capabilities
Core inserts often combine tight fits with finish-critical forming areas. We control the parameters that affect molding stability and assembly repeatability.
Manufacturing Processes
- Precision CNC turning and milling
- Grinding for critical fits, datums, and sealing lands (as required)
- EDM / wire EDM for special geometry (project-dependent)
- Heat treatment coordination for target hardness and dimensional stability
- Polishing/fine finishing for forming surfaces
- Set matching and consistency control for multi-piece orders
Key Quality Controls
- Datum-based machining to ensure repeatable installation
- Fit tolerance control (locating diameters/shoulders) to reduce hand-fitting
- Concentricity/runout control for coaxial or stepped designs
- Surface finish management for stable release and reduced wear
- Consistency control across sets (sampling or 100% inspection options)
Inspection & Documentation
- Dimensional inspection reports available (key features or full report)
- Material certificates and heat treatment records upon request
- Marking/traceability options for set management
Customer Value for Insert-Based Mold Reliability
Faster maintenance and lower downtime
Replaceable core inserts allow targeted replacement without reworking the entire mold block or plate.
Consistent molding performance
Accurate datums and controlled fits improve repeatability and reduce variation caused by assembly differences.
Longer mold life
Optimized material and surface treatment improve wear resistance, protecting critical forming zones over long production runs.
Better interchangeability for spare parts programs
Matched inserts and consistent manufacturing support quick swap-in replacement and predictable maintenance schedules.
What We Need for Quotation
To quote custom core inserts accurately, please provide:
- 3D CAD (STEP/IGES) and 2D drawing (PDF/DWG)
- Quantity (single pieces or multi-piece sets)
- Material requirement (or operating conditions for recommendation)
- Heat treatment/target hardness specification
- Surface finish requirement for forming areas (Ra / polish level)
- Critical tolerances (datums, fits, runout/concentricity, sealing zones if applicable)
- Mold interface details (locating diameter/shoulder, retention method, mating plate dimensions)
- Inspection/document needs (FAI, report format, sampling vs. 100% inspection)
- Lead time and packaging requirements
If this is a replacement core insert, sharing the mating interface dimensions helps ensure drop-in compatibility.
Frequently Asked Questions
Do you manufacture core inserts strictly to customer drawings?
Yes. We produce according to your drawings, GD&T, and datum references. If tolerances are not specified, we can propose a practical tolerance plan for approval.
What are the most critical features of a core insert?
Typically, forming geometry, locating datums, and coaxial features (runout/concentricity) affect assembly fit and molded part consistency.
Can you supply matched sets for multi-cavity molds?
Yes. We can manufacture matched sets with controlled variation and provide inspection data for key dimensions.
Do you provide polishing and finishing on forming surfaces?
Yes. Polishing and fine finishing can be applied according to your requirements.
Do you provide inspection reports and material certificates?
Yes. Inspection reports, material certificates, and heat treatment records are available upon request.
Need a reliable supplier for custom core inserts and CNC-machined mold parts?
Send us your STEP/2D drawings, quantity, tolerance, and finish requirements, material/hardness specs, and target lead time. We'll respond quickly with a clear quotation and available quality documentation options.
