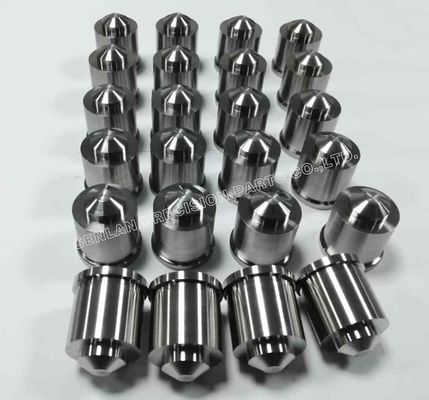

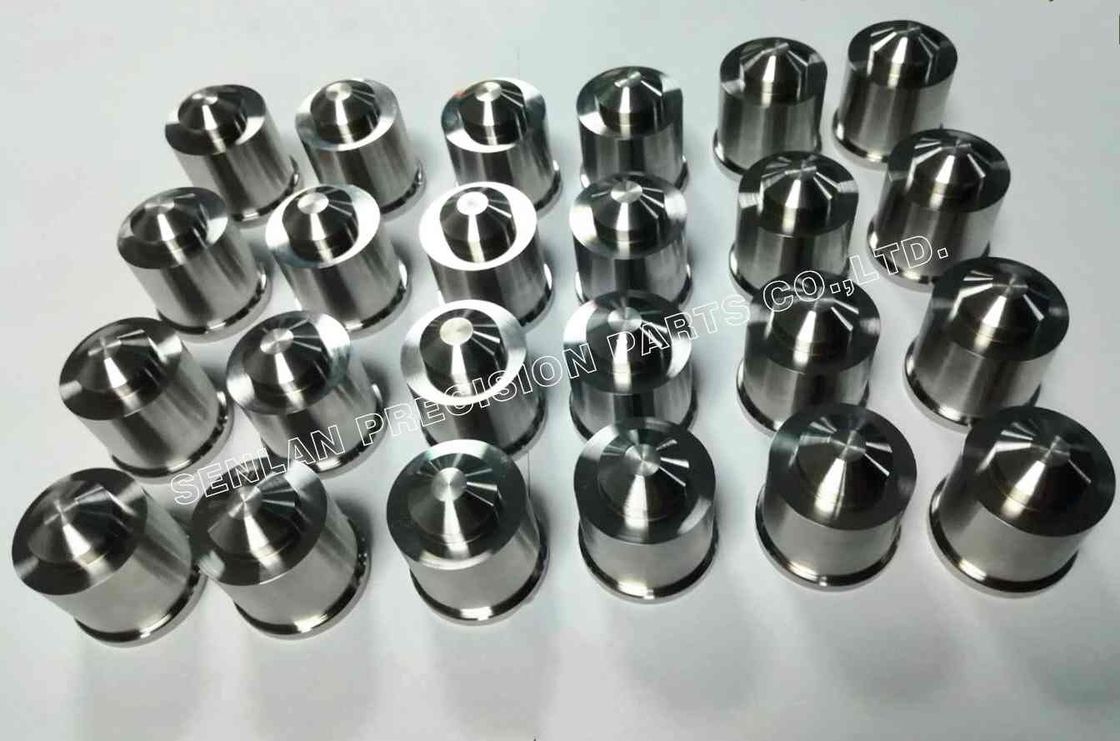

CNC Machined Guide Bushings for Plastic Injection Mold Parts
Guide bushings are precision alignment components that work with guide posts (leader pins) to ensure injection molds close smoothly, accurately, and repeatedly. In production molds, stable guiding reduces mismatch, protects cavity/core edges, and helps moving mechanisms operate consistently over long cycles.
Our CNC machined guide bushings are custom mold parts manufactured to customer drawings for reliable fit, low friction sliding, and long service life. We control the features that matter most for guiding components—inner diameter fit, coaxial accuracy, surface finish, and hardness—so bushings perform consistently in both new mold builds and replacement programs.
Product Description
A guide bushing is a precision sleeve installed in one mold half that mates with a guide post in the opposite half. Together, they control alignment during mold opening/closing and reduce wear on expensive mold components.
What Guide Bushings Do in an Injection Mold
- Maintain accurate mold alignment during cycling
- Reduce parting line mismatch and flash risk caused by misalignment
- Protect core/cavity edges and shut-off surfaces from impact wear
- Support stable performance of slides, lifters, and other moving elements
Common Guide Bushing Designs
- Straight bushings for standard mold base guidance
- Flanged bushings for secure retention and repeatable installation
- Bushings with lead-in chamfers for smoother engagement
- Custom designs with specific seating, lubrication, or retention details
Material and Treatment Considerations
Guide bushings are wear components. Material selection and heat treatment are chosen to resist abrasion and reduce galling under repeated sliding contact. Depending on mold environment, bushings may also require corrosion resistance or special surface treatments to improve wear life and reduce friction.
Applications
- New mold builds requiring precise guiding interfaces
- Multi-cavity molds where alignment consistency is critical
- High-cycle production molds needing durable wear components
- Mold maintenance and refurbishment (replacement bushings)
- Mold stacks with slides/lifters where guiding stability impacts mechanism life
Precision & Manufacturing Capabilities
Manufacturing Processes
- Precision CNC turning for ID/OD and seating geometry
- Grinding/honing for tight ID tolerances and surface finish
- Heat treatment coordination for target hardness and stability
- Fine finishing/polishing to reduce friction and wear
- Optional surface treatments/coatings (project-dependent)
Key Quality Controls
- ID fit control to match the guide post clearance requirement
- Coaxial accuracy between ID and OD to prevent uneven wear
- Surface finish control on sliding surfaces for smooth movement
- Seating geometry verification for repeatable installation
- Hardness verification (per specified requirement)
Inspection & Documentation
- Dimensional inspection reports available (key sizes)
- Material certificates and heat treatment records upon request
- Traceability marking options if required
Customer Value for Mold Alignment & Wear Life
Better Alignment, Better Part Quality
Consistent guiding reduces mismatch and helps keep parting lines stable.
Less Wear on Expensive Components
Guide bushings protect cavity/core edges and shut-offs by ensuring controlled mold closing.
Smoother Operation & Longer Service
Correct fit and surface finish reduce friction and galling, extending bushing and post life.
Lower Downtime
Bushings are designed to be replaced, helping restore mold alignment quickly during maintenance.
What We Need for Quotation
- 2D drawing (PDF/DWG) and/or 3D CAD (STEP/IGES)
- Quantity and required lead time
- Bushing type (straight/flanged/custom) and seating structure
- Critical dimensions: ID, OD, length, flange details (if any)
- Fit requirement with guide post (clearance specification if defined)
- Material requirement (or operating conditions for recommendation)
- Heat treatment/hardness requirement
- Surface finish requirement for sliding surfaces
- Inspection/document needs (report format, traceability)
If replacing an existing bushing, sharing the guide post diameter and current fit requirement helps confirm correct ID clearance.
Frequently Asked Questions
What's the difference between a guide bushing and a guide post?
A guide post (leader pin) is the hardened pin; the guide bushing is the mating sleeve installed in the opposite mold half. Together they guide mold alignment.
Why do guide bushings wear out?
Common causes include incorrect clearance, poor lubrication, contamination, insufficient hardness, or misalignment. Correct material, surface finish, and fit control reduce wear.
Can you make custom guide bushings to match our mold base?
Yes. We manufacture guide bushings to customer drawings and can follow standard mold base systems when specified.
Do you provide inspection reports and certificates?
Yes. Inspection reports and material/heat treatment certificates are available upon request.
Send us your drawings (STEP/2D), quantities, fit requirements, and required delivery date for CNC machined guide bushings. We'll respond quickly with a clear quotation, lead time, and available quality documentation.
