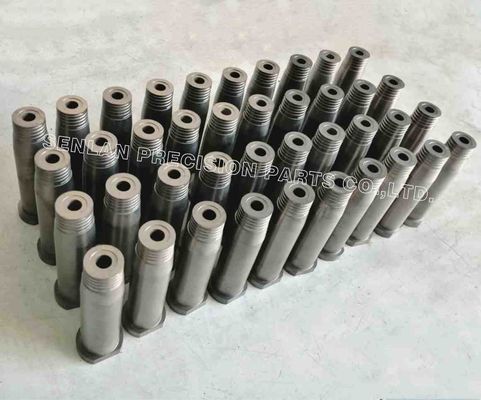

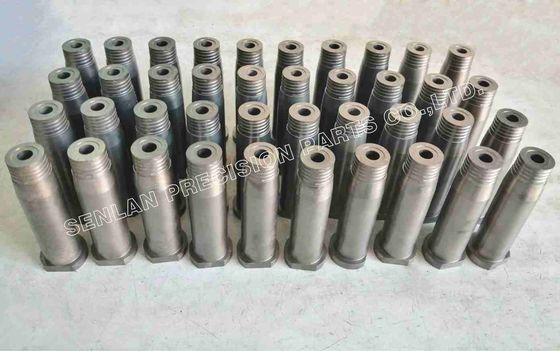

±pm$0.005mm High Accuracy Mold Core Pins | ISO 9001 Certified Injection Mold Parts

Product Overview

High-accuracy mold core pins are precision components used in plastic injection molds where dimensional stability, concentricity, and repeatability are critical. Manufactured under an ISO 9001 quality management system, these core pins are produced through precision CNC machining and controlled finishing processes. All parts are custom manufactured strictly according to customer drawings and technical specifications to ensure reliable mold performance.

Key Features & Technical Advantages

• Manufactured under the ISO 9001 quality management system

• High-accuracy CNC machining for tight dimensional control

• Stable concentricity for consistent wall thickness formation

• Reliable surface finish for smooth demolding

• Suitable for high-cycle and multi-cavity injection molds

• Consistent interchangeability for spare and replacement parts

• Fully customized / OEM / Built-to-Print manufacturing

Applications & Industries

These high-accuracy mold core pins are widely used in:

• Injection molds for packaging caps and closures

• Mold systems for bottle caps and sealing components

• Medical packaging and syringe-related injection molds

• Precision plastic molds requiring stable dimensional control

They are particularly suitable for applications requiring tight tolerances, consistent geometry, and repeatable mold performance.

Mold Structure & Design Description

Mold core pins are installed on the core side of plastic injection molds to form internal features of molded parts.
Key design considerations include:

• Accurate pin diameter, length, and tip geometry

• Controlled concentricity relative to cavity inserts

• Proper fit with surrounding mold components

• Structural stability under injection pressure

All core pins are designed and manufactured strictly according to customer drawings to ensure correct mold assembly and stable production.

Manufacturing Capability & CNC Machining

Senlan Precision manufactures high-accuracy mold core pins using advanced CNC machining and precision finishing technologies.
Our production facilities are equipped with high-precision machining centers and CNC systems from MAKINO (Japan) and HARDINGE (USA), enabling:

• High-accuracy CNC turning and milling

• Stable tolerance and concentricity control

• Consistent surface finish across production batches

• Reliable repeatability for customized and replacement mold components

Machining processes are optimized according to geometry complexity and accuracy requirements.

Custom Manufacturing & OEM Cooperation

We specialize in custom manufacturing and OEM cooperation, supporting:

• Built-to-Print production from 2D drawings or 3D models

• Customized core pin dimensions, tolerances, and geometries

• Flexible material and process selection

• Small-batch prototyping and volume production

• Long-term supply of replacement and spare mold core pins

Clear and efficient technical communication is maintained throughout the project.

Quality Control & Export Experience

With over 20 years of experience in exporting precision mold components, Senlan Precision applies a structured quality control system:

• Incoming material inspection and traceability

• In-process dimensional and concentricity inspection

• Final inspection prior to shipment

• Complete inspection records and technical documentation

We are familiar with international quality standards and professional engineering communication practices.

Related Mold Components

• Precision mold core pins

• Mold cavity inserts

• Mold sleeves and bushings

• Multi-cavity mold spare parts

All related products are available on a custom manufacturing basis.

Technical FAQ

Q1: Are these mold core pins manufactured strictly according to drawings?
Yes. All components are produced strictly based on customer-provided drawings and technical specifications.

Q2: What accuracy levels can be achieved?
High accuracy suitable for precision injection mold applications can be achieved depending on part geometry and requirements.

Q3: Are replacement core pins interchangeable with existing molds?
Yes. Replacement and interchangeable core pins can be manufactured to match existing mold designs.

Q4: Is ISO 9001 applied throughout the manufacturing process?
Yes. ISO 9001 procedures are applied from material control through machining, inspection, and final delivery.

Request a Quotation

For pricing, lead time, or technical discussion regarding ISO 9001 high-accuracy mold core pins for plastic injection molds, please provide your drawings or technical specifications.
Our engineering team will review your requirements and provide a professional quotation accordingly.
