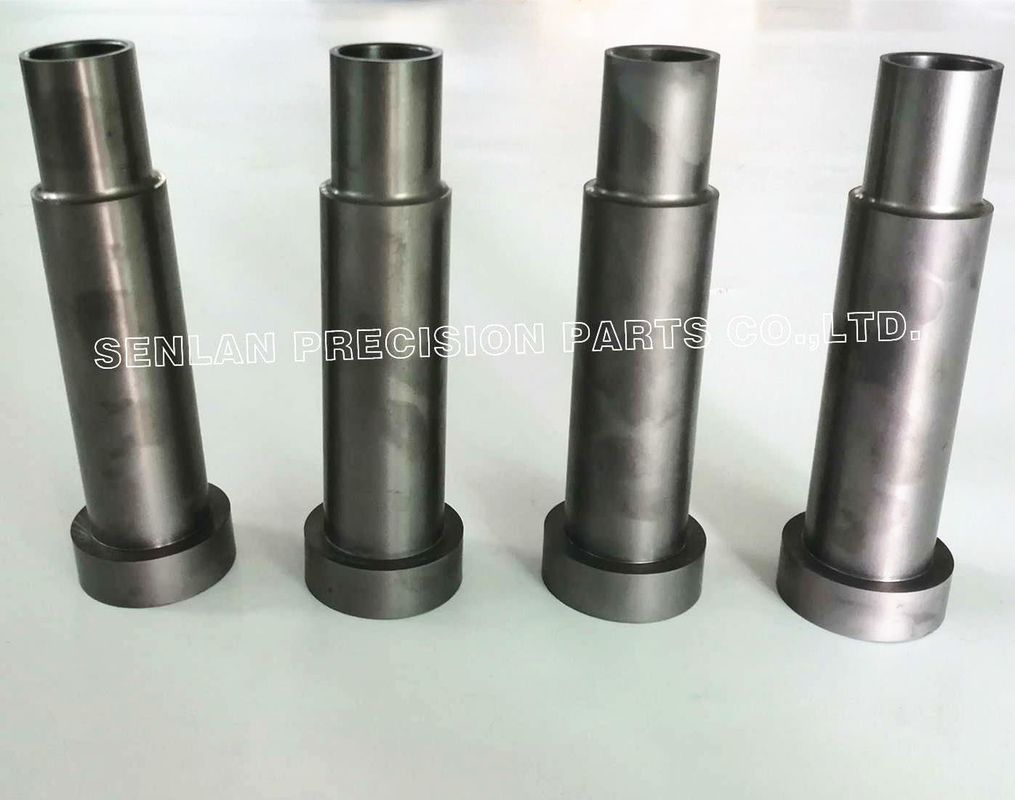

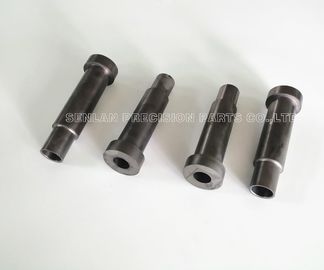

Nitriding Ejector Pins And Sleeves / Mold Sleeve Bushing For Plastic Molding

Nitriding Ejector Pins And Sleeves / Mold Sleeve Bushing For Plastic Molding
Nitriding Ejector Pins And Sleeves / Mold Sleeve Bushing For Plastic Molding
Nitriding Ejector Pins And Sleeves / Mold Sleeve Bushing For Plastic Molding Nitriding Ejector Pins And Sleeves / Mold Sleeve Bushing For Plastic Molding Nitriding Ejector Pins And Sleeves / Mold Sleeve Bushing For Plastic Molding

Large Image :  Nitriding Ejector Pins And Sleeves / Mold Sleeve Bushing For Plastic Molding

Product Details:
Place of Origin: China
Brand Name: SENLAN
Certification: ISO9001
Model Number: SL-146
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Coated with anticorrosive oil, packed in carton box
Delivery Time: 5-15 working days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 2000pcs/week
Contact Now

Nitriding Ejector Pins And Sleeves / Mold Sleeve Bushing For Plastic Molding

Description
Product Name: Ejector Sleeve Material: 1.2344
Tolerance: +/-0.01mm Application: Plastic Molding
Dimensions: As Per Drawings Parallelism: 0.01mm
Concentricity: 0.01mm
Highlight:

sleeve ejector pin

,

mould ejector pins

,

Plastic Molding Ejector sleeve

Nitriding Ejector Pins and Sleeves / Mold Sleeve Bushing for Plastic Molding
An ejector sleeve functions similarly to an ejector pin or rod, pushing finished plastic mold pieces out of the core or cavity of the mold base. Inside and outside diameters are ground concentric to ensure proper alignment.
Product Documentation (PDF)
Product Specifications
Material 1.2344
Hardness 46-52HRC
Heat Treatment Available
Service Made-to-order
Surface Treatment /
Closest Tolerance ±0.01mm
Polishness Ra0.6
Axiality 0.01mm
Verticality 0.01mm
Product Range
Our products include plastic mold core pins and inserts, movable core components, and more. They are widely used in medical, cosmetics, automotive die-casting, daily packaging, electronic appliances, automation, and other industries.
Manufacturing Capabilities
Manufacturing and inspection capacity in steel, stainless, and copper materials for precision mold parts including cavity pins, core pins, punches, ejector sleeves, and CNC machining parts.
Services
CNC machining, CNC milling, Sodick EDM, Sodick wire-cut, OD grinding, ID grinding, surface grinding, thread grinding, and polishing.
Industries Served
Medical, packaging, aerospace, and electronic industries.
Applications
Automobile parts, medical equipment, daily necessities packaging, cosmetic packaging, and related applications.
Why Choose Our Products
  • Specialized manufacturer of precision core pins, cavity pins, and insert pins
  • 8 years of experience in stamping die parts, injection die parts, auto parts, and metal-working products
  • Advanced production equipment and experienced operators
  • Extensive OEM and ODM experience
  • Competitive pricing, high quality, and fast delivery
Technical Advantages
  • Highly polished finish: 6-8 micro finish
  • Precision form ground to close diameter tolerance: ±0.005mm
  • Common fractional sizes available up to 3 1/2" long
  • M-2 high speed steel: 60-63 Rockwell C
  • Custom sizes available up to 1" diameter
  • Custom hardness RC 64-65 and triple drawn available on request
Ordering Information
Payment Terms: T/T, PayPal, Western Union - 50% deposit, balance before shipment
Packaging: Coated with anti-corrosive oil, packed in carton boxes
Shipping Methods: DHL, TNT, FedEx available
Order Process
  1. Submit drawing, sample (non-standard parts), or series number (standard parts)
  2. NDA available for intellectual property protection
  3. Immediate evaluation of drawing and requirements
  4. Same-day quotation provided
  5. 50% deposit required to begin manufacturing
  6. Standard production: 10 working days; samples: 7 days
  7. Shipping options: express, air, or sea freight
Inquiry Requirements
  • Product drawings when possible
  • Required material specifications
  • Dimensions and tolerances
  • Hardness and surface treatment requirements
  • Order quantity if available
We offer a wide range of products to meet your needs and look forward to establishing a business relationship. Please contact us with any questions.
