Hitachi DAC Die Casting Mold Parts / Die Casting Mold Cavity Inserts Components

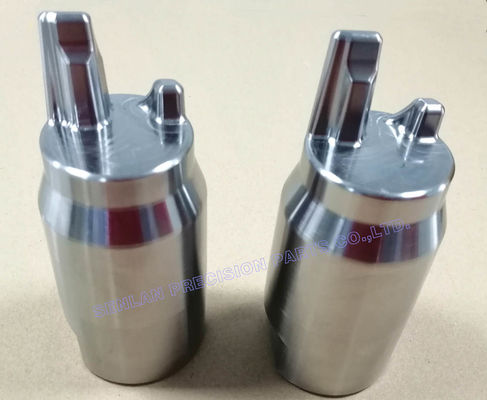

H13 Tool Steel Cavity Inserts for Die Casting Mold Components
H13 Tool Steel Cavity Inserts are precision-engineered die casting mold parts designed to form the external shape and detailed features of metal casting products. Installed directly inside the mold cavity, these inserts determine the final geometry and surface quality of die-cast components.
Manufactured from high-performance H13 hot-work tool steel, these cavity inserts provide excellent resistance to heat, wear, and thermal fatigue. Their durability makes them ideal for high-pressure die casting processes where molds are exposed to extreme temperatures and repetitive production cycles.
With high machining accuracy and reliable material performance, H13 cavity inserts are widely used in aluminum, zinc, and magnesium die casting molds for automotive, electronics, and industrial components.
Product Description
Cavity inserts are interchangeable mold components that form the outer surface of die-cast parts. Instead of machining the entire mold cavity directly into the mold base, inserts are used to simplify maintenance, improve mold durability, and allow easier replacement when wear occurs.
Our H13 tool steel cavity inserts are produced through precision CNC machining, EDM processing, and professional heat treatment to achieve optimal hardness and dimensional stability.
Key product features include:
- Manufactured from premium H13 hot-work tool steel
- Excellent thermal fatigue resistance
- High hardness and wear resistance
- Precision-machined surfaces for accurate mold fitting
- Smooth cavity surfaces for improved casting finish
- Customizable designs based on product geometry
These inserts are engineered to maintain stable performance in high-pressure die casting molds, even under demanding production conditions.
Applications
H13 cavity inserts are widely used in die casting mold systems across many industrial sectors.
Aluminum Die Casting
- Automotive engine components
- Structural aluminum housings
Zinc Die Casting
- Precision electronic components
- Hardware and decorative metal parts
Magnesium Die Casting
- High-pressure die casting molds
- Custom metal casting molds
Cavity inserts allow mold manufacturers to maintain high casting accuracy and easy mold maintenance.
Precision & Manufacturing Capabilities
Our company produces high-precision die casting mold components using advanced equipment and strict quality control procedures.
Manufacturing capabilities include:
- High-precision CNC machining centers
- Wire EDM and sinker EDM processing
- Precision surface grinding and polishing
- Professional vacuum heat treatment
- High-quality cavity surface finishing
- Dimensional tolerance control up to ± 0.005 mm
Each cavity insert undergoes detailed inspection to ensure accurate dimensions, stable structure, and reliable mold integration.
Advantages for Die Casting Mold Manufacturers
Using high-quality cavity inserts significantly improves mold performance and maintenance efficiency.
Improved Mold Durability
H13 tool steel provides excellent resistance to heat, wear, and thermal fatigue.
Easier Mold Maintenance
Replaceable cavity inserts allow damaged sections to be replaced without rebuilding the entire mold.
Better Casting Surface Quality
Precision cavity surfaces improve the appearance and dimensional accuracy of cast parts.
Stable High-Volume Production
Durable mold components support long production runs with minimal downtime.
Custom Mold Engineering
Cavity inserts can be designed according to specific product geometry and mold structures.
What We Need for Quotation
To provide an accurate quotation for custom cavity inserts, please provide the following information:
- Product drawings or CAD files
- Insert dimensions and structure details
- Required material (H13 or equivalent)
- Surface treatment or polishing requirements
- Order quantity
- Application type (aluminum, zinc, or magnesium die casting)
Our engineering team will review your project and recommend the most suitable manufacturing solution.
Frequently Asked Questions
What are cavity inserts used for in die casting molds?
Cavity inserts form the external shape and detailed surface features of die-cast products.
Why are cavity inserts used instead of machining the mold cavity directly?
Using inserts allows easier maintenance and replacement, which reduces mold repair costs and downtime.
Why is H13 steel suitable for die casting mold inserts?
H13 tool steel offers excellent heat resistance, toughness, and thermal fatigue resistance, making it ideal for high-temperature die casting processes.
Can cavity inserts be customized?
Yes. All cavity inserts can be custom manufactured based on product drawings and mold design requirements.
Do you provide quality inspection before shipment?
Yes. Every cavity insert undergoes strict dimensional inspection and quality control before delivery.
