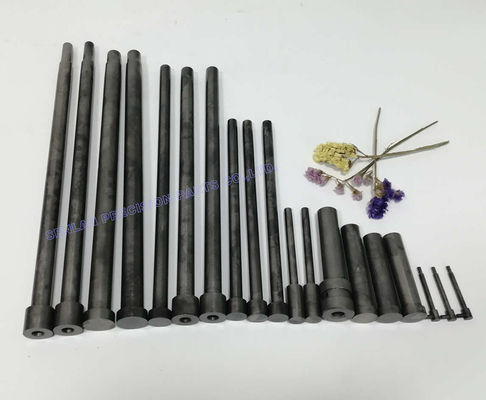

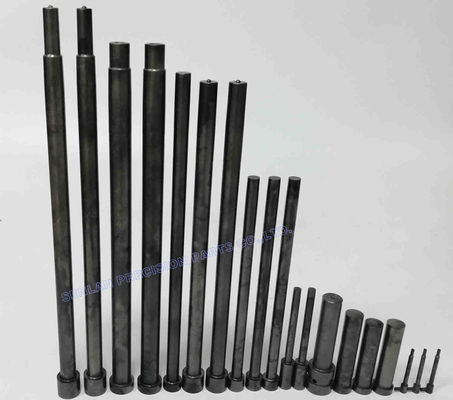

High Performance Nitriding Coated Die Casting Mold Core Pins with 0.01mm Parallelism and 1.2344 Material

High Performance Nitriding Coated Die Casting Mold Core Pins with 0.01mm Parallelism and 1.2344 Material
High Performance Nitriding Coated Die Casting Mold Core Pins with 0.01mm Parallelism and 1.2344 Material
High Performance Nitriding Coated Die Casting Mold Core Pins with 0.01mm Parallelism and 1.2344 Material High Performance Nitriding Coated Die Casting Mold Core Pins with 0.01mm Parallelism and 1.2344 Material High Performance Nitriding Coated Die Casting Mold Core Pins with 0.01mm Parallelism and 1.2344 Material

Large Image :  High Performance Nitriding Coated Die Casting Mold Core Pins with 0.01mm Parallelism and 1.2344 Material

Product Details:
Place of Origin: China
Brand Name: SENLAN
Certification: ISO9001
Model Number: SL-131
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Coated with anticorrosive oil, packed in carton box
Delivery Time: 5-15 working days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 2000pcs/week
Contact Now

High Performance Nitriding Coated Die Casting Mold Core Pins with 0.01mm Parallelism and 1.2344 Material

Description
Product Name: Die Casting Mold Parts Material: 1.2344
Tolerance: +/-0.01mm Surface Treatment: Nitriding Coated
Application: Die Casting Mold Dimensions: As Per Drawings
Parallelism: 0.01mm Concentricity: 0.01mm
Highlight:

plastic injection mould parts

,

injection molding parts

High Performance Mold Core Pins Die Casting Tools Parallelism 0.01mm
Various Sizes Nitrided Die Casting Mold Parts

Round shape core pins are die-casting parts, primarily used for threaded bottom holes and pin bottom holes. We utilize Japan imported materials and heat treatment equipment for manufacturing these core pins.

Available in various customized sizes with customizable features including shoulder width, head diameter, positioning surface size, and number of positioning surfaces. Depending on core pin size, single central cooling holes or stepped cooling holes can be customized.

Product Specifications
Material 1.2344
Hardness 45-50HRC
Heat treatment Available
Service Made-to-order
Surface treatment Nitriding coated
Closest tolerance ±0.01mm
Polishness Ra0.6
Axiality 0.01mm
Verticality 0.01mm

Our product range includes plastic mold core pins and inserts, movable core components, and more. These are widely used across medical, cosmetics, automotive die-casting, daily packaging, electronic appliances, and automation industries.

Business Range
  • Manufacturing & inspection capacity in steel, stainless and copper materials for precision mould parts
  • Cavity pins, core pins, punches, ejector sleeves, CNC machining parts
  • Services: CNC machining, CNC milling, Sodick EDM, Sodick wire-cut, OD grinding, ID grinding, surface grinding, thread grinding, polishing
  • Industries Served: Medical, Packaging, Aerospace, Electronic
Application Fields

Automobile parts, medical equipment, daily necessities packaging, cosmetic packaging, and more.

Why Choose Us
  • Specialized manufacturer of precision core pins, cavity pins, and insert pins
  • 8 years of experience in stamping die parts, injection die parts, auto parts, and metal-working products
  • Advanced production equipment and experienced operators
  • Extensive experience with OEM and ODM services
  • Competitive pricing, superior quality, and fast delivery
Technical Advantages
  • Highly polished finish: 6-8 micro finish
  • Precision form ground to close diameter tolerance: ±0.005mm
  • Common fractional sizes available up to 3 1/2″ long
  • M-2 high speed steel: 60-63 Rockwell C
  • Custom sizes available up to 1″ diameter
  • Custom hardness RC 64-65 and triple drawn available on request
Ordering Process
  1. Submit drawing, sample (non-standard parts), or series number (standard parts)
  2. NDA available for intellectual property protection
  3. Immediate evaluation of drawing and requirements
  4. Same-day quotation provided
  5. 50% deposit required before order processing, 50% balance before shipment
  6. Production time: 10 working days (standard), 7 days (samples)
  7. Multiple shipping options: express, air, or sea freight
Business Terms

Payment: T/T, PayPal, Western Union (50% deposit, balance before shipment)

Packaging: Coated with anti-corrosive oil, packed in carton boxes

Shipping: DHL, TNT, FedEx available

High Performance Nitriding Coated Die Casting Mold Core Pins with 0.01mm Parallelism and 1.2344 Material 0

We have numerous items that may match your requirements and look forward to establishing a business relationship with you. Please feel free to contact us with any questions.
