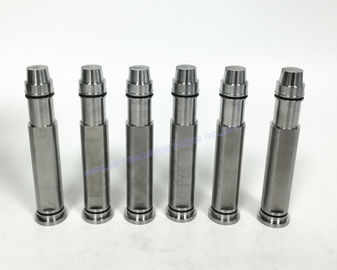

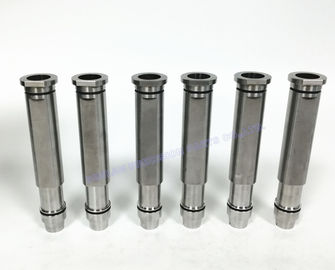

Durable Precision Mould Parts EDM Mold Core With 0.01mm Concentricity
Our S136 Precision Mould Parts Mold Inserts EDM Mold Core are engineered for exceptional precision with 0.01mm concentricity, manufactured using imported materials with excellent anti-rust properties and superior polishing performance.
Product Specifications
| Material |
S136 |
| Hardness |
50-52HRC |
| Heat treatment |
Available |
| Service |
Made-to-order |
| Surface treatment |
/ |
| Closest tolerance |
±0.01mm |
| Polishness |
Ra0.6 |
| Axiality |
0.01mm |
| Verticality |
0.01mm |
Manufacturing Excellence
Our products are precision-machined using imported CNC equipment, OD grinders, and ID grinders to ensure consistent altitude, dimensional stability, and complete interchangeability. For specialized applications, we offer TIN and DLC surface treatments to enhance wear resistance and extend service life.
Product Range
We manufacture plastic mold core pins and inserts, movable core components, and various precision mould parts including cavity pins, core pins, punches, ejector sleeves, and CNC machining components.
Services & Industries
Manufacturing Services: CNC machining, CNC milling, Sodick EDM, Sodick wire-cut, OD grinding, ID grinding, surface grinding, thread grinding, and polishing.
Industries Served: Medical, packaging, aerospace, electronics, automotive, cosmetics, and daily necessities.
Key Advantages
- Highly polished finish with 6-8 micro finish
- Precision form ground to close diameter tolerance ±0.005mm
- Common fractional sizes available up to 3 1/2″ long
- M-2 high speed steel with 60-63 Rockwell C hardness
- Custom sizes available up to 1″ diameter
- Custom hardness RC 64-65 and triple drawn available on request
Why Choose Our Manufacturing
- Specialized manufacturer of precision core pins, cavity pins, and insert pins
- 8+ years experience in stamping die parts, injection die parts, auto parts, and metal-working products
- Advanced production equipment with experienced operators
- Extensive OEM and ODM experience
- Competitive pricing, superior quality, and fast delivery
Ordering Process
- Submit your drawing, sample (for non-standard parts), or series number (for standard parts)
- We evaluate requirements and provide immediate assessment
- Receive quotation on the same day
- Upon agreement, 50% deposit required before production begins
- Standard production time: 10 working days (7 days for samples)
- Flexible shipping options: express, air, or sea freight
Business Terms
Payment: T/T, PayPal, Western Union (50% deposit, balance before shipment)
Packaging: Coated with anti-corrosive oil, packed in carton boxes
Shipping: DHL, TNT, FedEx available
We welcome the opportunity to establish a business relationship and are available to answer any questions regarding our precision mould parts and manufacturing capabilities.
