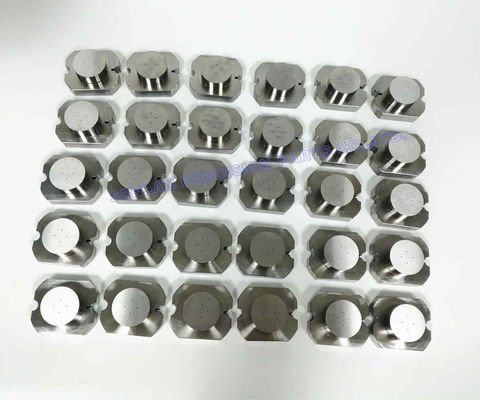

High-Precision Plastic Mold Components | $\pm$0.01mm Tight Tolerance Tooling

Product Overview

Customized Plastic Mould Parts from Senlan Precision are manufactured for injection molding applications requiring tight dimensional control and high repeatability. With achievable tolerances up to ±0.01 mm, these mold components are produced under a stable CNC machining process and quality system, supporting multi-cavity, high-volume, and precision plastic molding projects.

Key Features & Advantages

• High Precision Tolerance ±0.01 mm
  Suitable for mold components where dimensional consistency directly affects part quality and cycle stability.

• Built-to-Print / OEM Manufacturing
  All parts are produced strictly according to customer drawings, specifications, and GD&T requirements.

• Material Flexibility
  Tool steels, stainless steels, and special mold materials can be selected based on molding conditions and lifespan needs.

• Stable Machining Consistency
  CNC machining and grinding processes ensure repeatable quality across batch production.

• Support for Multi-Cavity Molds
  Designed to maintain uniform performance across high-cavity injection mold systems.

Applications & Industry Use

• Packaging Injection Molds
  Mold components for bottle caps, closures, and thin-wall packaging parts.

• Medical Plastic Molding
  Precision mold parts used in molds for medical consumables and disposable components.

• High-Cavity Injection Molding
  Core and cavity components for molds requiring tight tolerance control.

• Industrial Plastic Molding
  Mold components where dimensional accuracy and stability are critical.

Mold Structure & Design Description

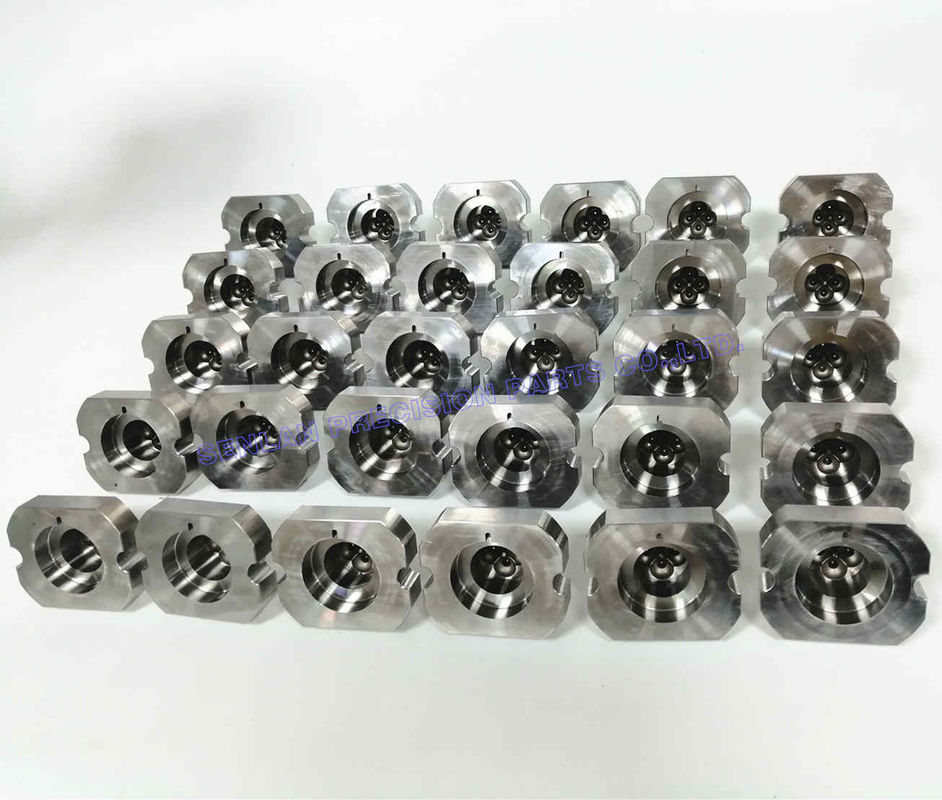

Customized plastic mould parts typically function as core inserts, cavity inserts, sliders, or support components within the injection mold. Tolerances, parallelism, concentricity, and surface finish are controlled according to the mold design to ensure stable plastic flow, consistent part geometry, and reduced mold wear during long production cycles.

Manufacturing Capability & CNC Machining

• CNC Milling & Turning
  Precision shaping of complex mold geometries.

• High-Accuracy Grinding
  Diameter, flatness, and alignment control for critical mold interfaces.

• EDM Machining (Optional)
  For complex contours and sharp internal features.

• Surface Finishing Options
  Fine machining, polishing, or technical surface treatments as required.

Custom Development / OEM Cooperation Process

1. Drawing Review & Technical Confirmation
   Analysis of drawings, tolerances, and application requirements.

2. Material & Process Selection
   Selection based on molding temperature, wear resistance, and lifespan expectations.

3. Precision Manufacturing
   CNC machining, grinding, and finishing according to approved specifications.

4. Quality Inspection
   Dimensional inspection to ensure ±0.01 mm tolerance compliance.

5. Delivery & Export Packaging
   Secure packaging suitable for international shipment.

Quality Control & Export Experience

• ISO 9001 Quality Management System
  Ensures consistent process control and traceability.

• Precision Measurement Equipment
  Inspection of critical dimensions, flatness, and positional accuracy.

• Documented Inspection Records
  Quality reports available upon request.

• Global Export Experience
  Supplying precision mold components to international injection molding customers.

Related Products (Internal Links)

• Precision Mold Core Pins

• Custom Mold Core Inserts

• Injection Mold Cavity Components

• CNC Machined Mold Parts

FAQ

Q1: Can ±0.01 mm tolerance be achieved for all mold components?
Tolerance capability depends on part geometry and material, which will be evaluated during drawing review.

Q2: Do you support OEM and non-standard designs?
Yes. All mold parts are manufactured based on customer drawings and specifications.

Q3: What materials are available for these mould parts?
Common options include tool steels, stainless steels, and specialized mold steels.

Q4: Are these parts suitable for multi-cavity molds?
Yes. They are designed to support consistency across high-cavity mold layouts.

Q5: Can inspection reports be provided?
Yes. Dimensional inspection records can be supplied with each order.

Get a Quote

For Customized Plastic Mould Parts with ±0.01 mm Tolerance, please contact Senlan Precision.
Submit your drawings, material requirements, and project details to receive a technical evaluation and quotation.
