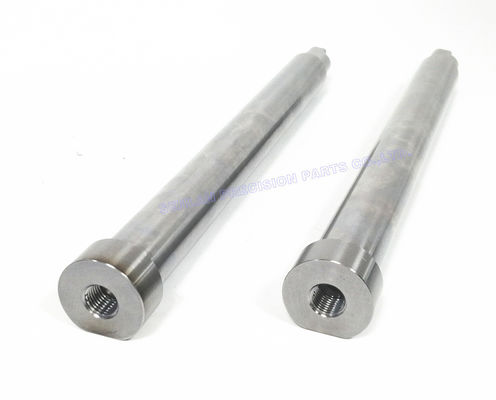

H13 Steel Custom Ejector Pins for Die Casting Molds with Precision Ground Surfaces

H13 Steel Custom Ejector Pins are specialized die casting mold components designed to remove solidified metal parts from mold cavities during the ejection stage of the die casting process. Unlike standard ejector pins, custom ejector pins are engineered with unique shapes, lengths, or head structures to match complex mold designs and specific casting requirements.

Manufactured from high-quality H13 hot-work tool steel, these ejector pins provide excellent resistance to high temperatures, wear, and thermal fatigue. Their durability allows them to perform reliably in demanding high-pressure die casting environments, including aluminum, zinc, and magnesium casting applications.

With precision machining and strict quality control, our custom ejector pins are produced to ensure stable ejection performance and long service life in die casting molds.

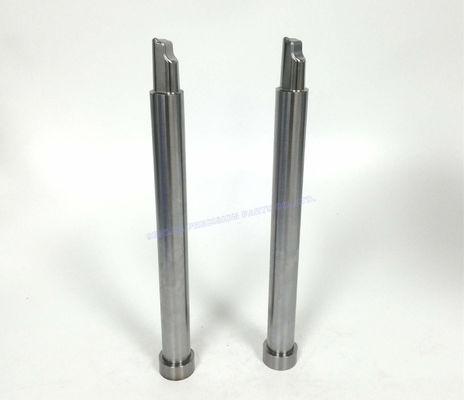

Custom ejector pins are designed to meet the specific needs of mold structures where standard ejector pins cannot provide sufficient ejection performance. These pins may feature special tip shapes, stepped shafts, longer bodies, or other customized geometries required by the mold design.

During the die casting cycle, once the molten metal solidifies and the mold opens, the ejector system activates. Custom ejector pins then push the casting out of the mold cavity while protecting delicate features of the part and ensuring smooth release.

Our H13 steel custom ejector pins are manufactured through advanced CNC machining, precision grinding, and professional heat treatment to achieve excellent dimensional stability and durability.

• Manufactured from H13 hot-work tool steel
• Excellent heat resistance and thermal fatigue resistance
• Designed for custom mold structures
• Precision ground surfaces for smooth movement
• High wear resistance for long production cycles
• Custom shapes, lengths, and head designs available
• Machining tolerance up to ± 0.005 mm

These custom ejector pins are widely used in die casting molds where precise ejection control is required.

H13 steel custom ejector pins are used in die casting mold ejection systems, especially when specialized geometries are required.

We specialize in producing precision die casting mold components, including fully customized ejector pins designed according to mold drawings.

• High-precision CNC turning and milling
• Wire EDM machining
• Precision grinding and polishing
• Professional vacuum heat treatment
• Custom manufacturing based on technical drawings
• Dimensional tolerance control up to ± 0.005 mm

Each custom ejector pin is carefully inspected to ensure accurate dimensions, smooth surface finish, and reliable performance in mold assemblies.

To provide an accurate quotation for custom ejector pins, please provide the following information:

• Product drawings or 3D CAD files
• Ejector pin dimensions and structure details
• Required material (H13 or equivalent)
• Heat treatment or surface treatment requirements
• Quantity required
• Application type (aluminum, zinc, or magnesium die casting)

Our engineering team will review your specifications and provide a customized manufacturing solution.
