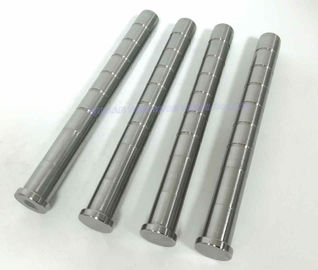

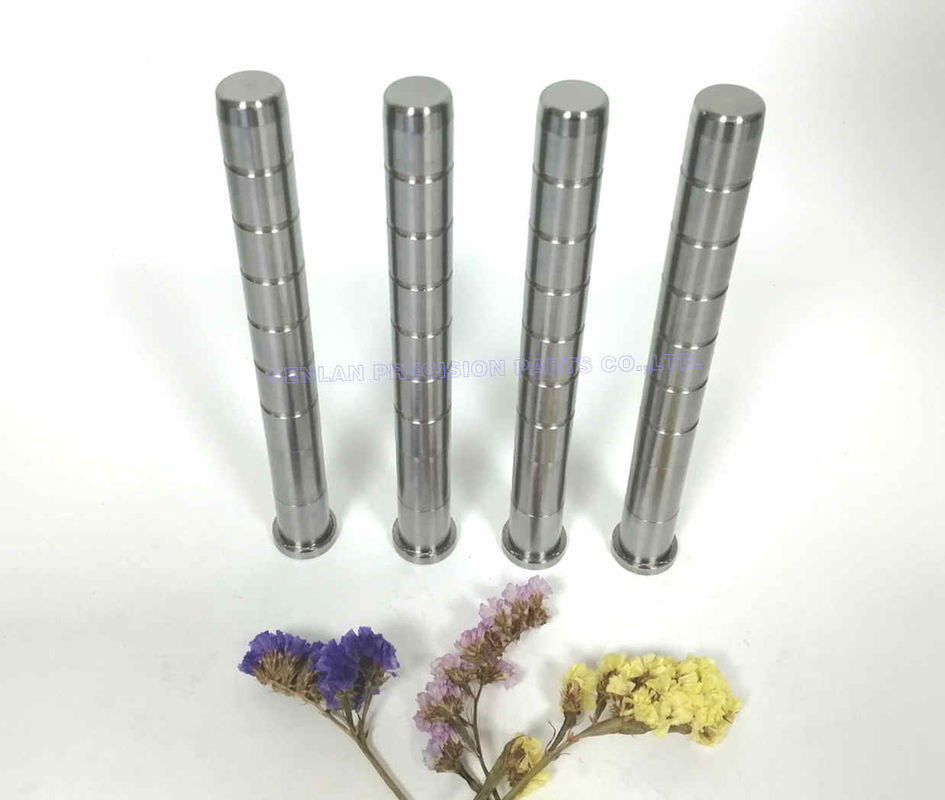

Standard 1.2343 Precision Mould Parts Pins Guide Rod For Injection Molding

Standard 1.2343 Precision Mould Parts Pins Guide Rod For Injection Molding
Standard 1.2343 Precision Mould Parts Pins Guide Rod For Injection Molding Standard 1.2343 Precision Mould Parts Pins Guide Rod For Injection Molding

Large Image :  Standard 1.2343 Precision Mould Parts Pins Guide Rod For Injection Molding

Product Details:
Place of Origin: China
Brand Name: SENLAN
Certification: ISO9001
Model Number: SL-106
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Coated with anticorrosive oil, packed in carton box
Delivery Time: 5-15 working days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 2000pcs/week
Contact Now

Standard 1.2343 Precision Mould Parts Pins Guide Rod For Injection Molding

Description
Product Name: Guide Pins Material: 1.2343
Tolerance: +/-0.01mm Hardness: 46-50HRC
Application: Injection Molding Dimensions: As Drawings
Highlight:

precision mold components

,

injection molded parts

,

Standard 1.2343 Precision Mould Parts

Standard 1.2343 Precision Mould Parts Guide Pins & Guide Rods
Guide pins provide essential stability for various applications across multiple industries. These precision components, also known as pilot pins or leader pins, ensure accurate alignment in stacking, mating panels and chases, and mating connectors. They limit contact damage between mismatched mating connectors and optimize mechanized performance through stability and precise alignment.
Product Specifications
Material 1.2343
Hardness 46-50HRC or dependent on material
Heat Treatment Available
Service Made-to-order
Surface Treatment TiCN, TiN, Aitain, Ticrn, nitriding, Black oxygened, Black coating, etc.
Closest Tolerance ±0.01mm
Polishness Ra0.6
Axiality 0.005mm
Verticality 0.005mm
Manufacturing Capabilities
Senlan manufactures guide pins under stringent quality standards, offering extensive variety and innovative design expertise. Our product range includes plastic mold core pins and inserts, movable core components, and more, serving medical, cosmetics, automotive die-casting, daily packaging, electronic appliances, and automation industries.
Business Range
  • Manufacturing & inspection capacity in steel, stainless, and copper materials
  • Precision mould parts, cavity pins, core pins, punches, ejector sleeves, CNC machining parts
  • Services: CNC machining, CNC milling, Sodick EDM, Sodick wire-cut, OD/ID grinding, surface grinding, thread grinding, polishing
  • Industries served: Medical, Packaging, Aerospace, Electronic
Application Fields
Automobile parts, medical equipment, daily necessities packaging, cosmetic packaging, and related industries.
Why Choose Senlan
  • Specialized manufacturer of precision core pins, cavity pins, and insert pins
  • 8+ years experience in stamping die parts, injection die parts, auto parts, and metal-working products
  • Advanced production equipment and experienced operators
  • Extensive OEM and ODM experience
  • Competitive pricing, superior quality, and fast delivery
Technical Advantages
  • Highly polished finish: 6-8 micro finish
  • Precision form ground to close diameter tolerance: ±0.005mm
  • Common fractional sizes available up to 3 1/2" long
  • M-2 high speed steel: 60-63 Rockwell C
  • Custom sizes available up to 1" diameter
  • Custom hardness RC 64-65 and triple drawing available on request
Business Terms
Payment Methods
T/T, PayPal, Western Union (50% deposit, balance before shipment)
Packaging
Coated with anticorrosive oil, packed in carton boxes
Shipping
DHL, TNT, FedEx available
