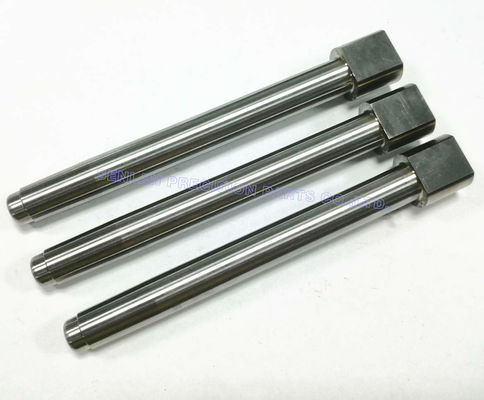

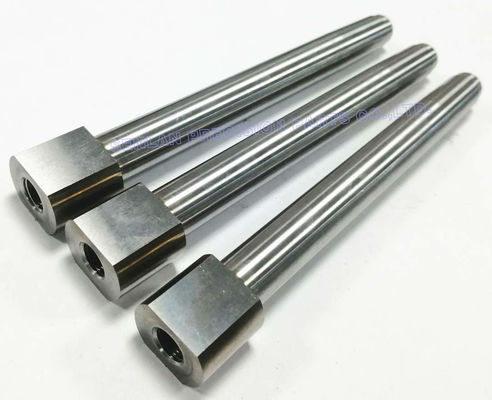

1.2343 Mold Core Pins with 0.01mm Parallelism for Precision Die Casting Service

1.2343 Mold Core Pins with 0.01mm Parallelism for Precision Die Casting Service
1.2343 Mold Core Pins with 0.01mm Parallelism for Precision Die Casting Service 1.2343 Mold Core Pins with 0.01mm Parallelism for Precision Die Casting Service

Large Image :  1.2343 Mold Core Pins with 0.01mm Parallelism for Precision Die Casting Service

Product Details:
Place of Origin: China
Brand Name: SENLAN
Certification: ISO9001
Model Number: SL-093
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Coated with anticorrosive oil, packed in carton box
Delivery Time: 5-15 working days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 2000pcs/week
Contact Now

1.2343 Mold Core Pins with 0.01mm Parallelism for Precision Die Casting Service

Description
Parts Name: Mold Core Pins Tolerance: +/-0.01mm
Parallelism: 0.01mm Material: 1.2343
Application: Die Casting Mold Size: Customized
Highlight:

core pin injection molding

,

core pin die casting

1.2343 Mold Core Pins Precision For Die Casting Service Parallelism 0.01mm
1.2343 Mold Core Pins Precision Die Casting Core Pins For Die Casting Service
Mold core pins are used in plastic molding and die casting dies. They are fixed elements used to create voids providing the desired shape in molded or cast parts. It is often easier to machine a core pin as a separate element and add it to the A-side or B-side as needed. Steel core pins are sometimes used in aluminum molds to create tall, thin cores that might be too fragile if machined out of the bulk aluminum of the mold. The pins are also used for part ejection from a die.
Product Specifications
Material 1.2343
Hardness 48-50HRC
Heat treatment Available
Service Made-to-order
Surface treatment TiCN, TiN, TiALM, Ticrn, nitriding, Black oxygened, Black coating etc available
Closest tolerance ± 0.05mm
Polishness Ra0.6
Axiality 0.005mm
Verticality 0.005mm
Senlan offers a complete line of standard core pins and has the engineering expertise and experience to provide "special" and "custom" core pins for our customer's existing as well as new applications. Our "special" and "custom" tooling results in our customers having improved in-plant productivity and quality performance as well as reduced manufacturing cost.
Application Fields
Medical/Packaging/Aerospace/Electronics/Die casting dies/Bottle cap/Auto/Cosmetic etc.
Drawing Format
PDF/DWG/DXF/IGS/STEP, etc
Payment Terms
T/T, Paypal, Western Union, 50% deposit, balance before shipment is available
Package
PE bag with anticorrosive oil, foaming film with carton, or wooden box according to customer's requirement.
Delivery
Delivery time is usually 7-15 working days for type of ejector pin, specific time is according to quantity.
Shipping
We ship using express such as DHL, UPS, FEDEX etc. or according to customer's requirement. It takes about 3-5 days to arrive your front door, and proof of shipments are provided with a shipping or tracking number. We ship by ocean shipment for larger quantity items, which is more economical for customers.
Our Advantages
  • Clean and tidy workshop
  • Strict and serious management, skilled and experienced technicians
  • Various raw material (imported and Chinese) to meet different needs of customers
  • Equipment of high precision (Surface grinding, Sodick Wire-cutting, drilling machine)
  • The QC goes along with all the production processes in our factory
  • You can use English or Japanese for communication
Our Services
  • Specialized in precision mold parts - inquiries will get high attention and prompt response (within 24 hours)
  • Advanced facilities and experienced engineers with rich experience in mold parts
  • Guaranteed quality, superior material quality compared to all others
  • Customer oriented, efficient solutions to control costs for our clients
  • One-stop service - any questions can be solved at the first time by us
  • Each part undergoes 100% inspection before shipment
Main Products
  • Core pin, cavity pin, insert pin etc
  • HSS punch, Precision punch, Special-shaped punch
  • Ejector pins, ejector sleeve, two-stage ejector pins etc
  • Guide pillars, Guide bushings, Guide post set
  • Slide Core Units, Latch locks, locating Series
You are always welcome to send us inquiries and all questions that you are interested in. We will reply as soon as possible.
