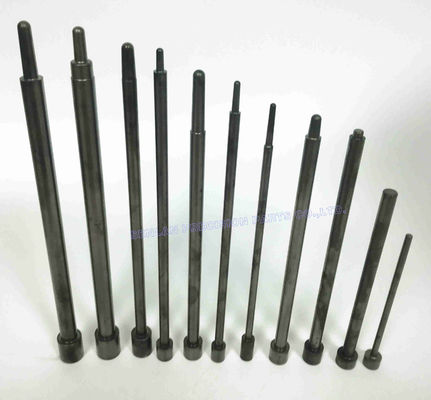

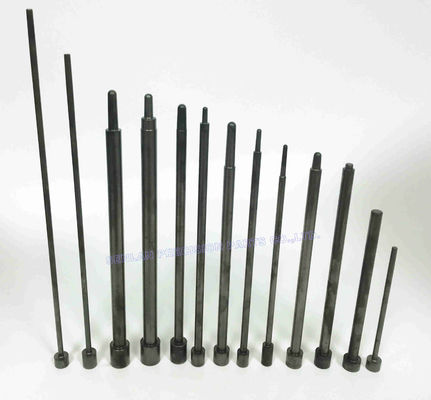

Nitriding Coating Die Casting Mold Parts with 48-52HRC Hardness and Customized Sizes Mold Core Pins

Custom Nitriding Coating Die Casting Mold Parts Mold Core Pins Die Casting Tools

A HPDC core pin has a small hole that reaches almost the tip of the core pin and serves as a cooling channel to take water at high pressure and air to dissipate heat. The location of the inner hole with regard to the core pin's external diameter is critical to ensure a long life for the component and effective cooling.

The life of the core pin can be further increased using thermo-chemical treatments and surface coatings. Senlan has the required precision equipment and machinery for the manufacture of the most critical HPDC core pins for aluminium high pressure die casting moulds. Continuous improvement of product life and reliability are the keys to obtaining important productivity advances.

Core pins are under high thermal stresses during the casting process and, because of traditional limits for heat extraction, especially in core pins of small diameter, they undergo frequent breakings, adhesion to casting metal, and erosion problems.

The surrounding areas of the core pins can be problematic points where shrinkage porosity may occur in the manufactured part.

Medical/Packaging/Aerospace/Electronics/Die casting dies/Bottle cap/Auto/Cosmetic etc.

PDF/DWG/DXF/IGS/STEP, etc.

T/T, Paypal, Western Union, 50% deposit, balance before shipment available

PE bag with anticorrosive oil, foaming film with carton, or wooden box according to customer requirements.

Delivery time is usually 7-15 working days for ejector pin types. Specific time depends on quantity.

We ship using express services such as DHL, UPS, FEDEX etc. or according to customer requirements. Express shipping takes about 3-5 days, with proof of shipment and tracking numbers provided. For larger quantities, we offer ocean shipping for economic efficiency.

• Clean and tidy workshop
• Strict management with skilled, experienced technicians
• Various raw materials (imported and Chinese) to meet different customer needs
• High precision equipment (Surface grinding, Sodick Wire-cutting, drilling machine)
• QC monitoring throughout all production processes
• English or Japanese communication available

• Specialized in precision mold parts with prompt response (within 24 hours)
• Advanced facilities and experienced engineers with rich mold parts experience
• Guaranteed quality with superior material selection
• Customer-oriented, efficient cost control solutions
• One-stop service with immediate problem resolution
• 100% inspection of each part before shipment

• Core pin, cavity pin, insert pin etc
• HSS punch, Precision punch, Special-shaped punch
• Ejector pins, ejector sleeve, two-stage ejector pins etc
• Guide pillars, Guide bushings, Guide post set
• Slide Core Units, Latch locks, locating Series

You are always welcome to send us inquiries and questions about our products. We will reply as soon as possible.
