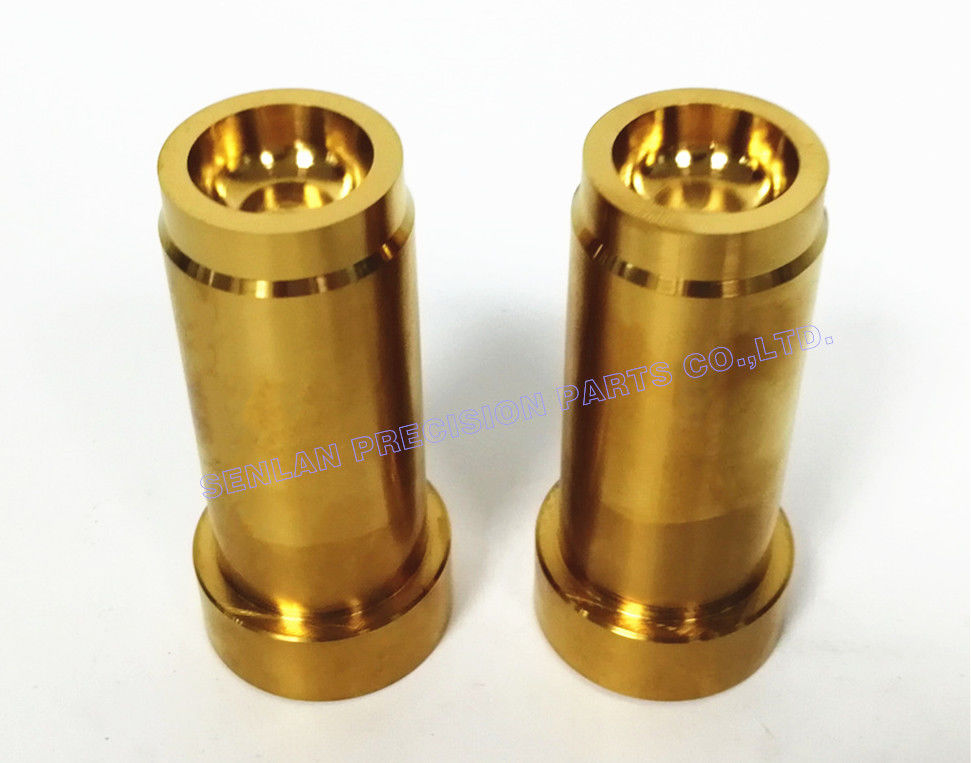

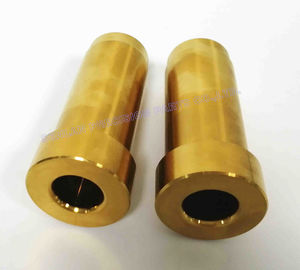

Tin Coating Die Casting Mold Parts
Precision die casting mold components with SKD61 material and ±0.01mm tolerance, designed for threaded and pin bottom holes in die casting applications.
Product Overview
Round shape core pins are specialized die-casting parts primarily used for threaded bottom holes and pin bottom holes. Manufactured using Japan imported materials and heat treatment equipment, these core pins offer customizable dimensions including shoulder width, head diameter, positioning surface size, and number of positioning surfaces. Cooling options include single central cooling holes or stepped cooling holes based on pin size requirements.
Technical Specifications
| Material |
SKD61 |
| Hardness |
46-50HRC or material dependent |
| Heat Treatment |
Available |
| Service |
Made-to-order |
| Surface Treatment |
TiCN, TiN, TiALM, Ticrn, nitriding, Black oxygened, Black coating, etc. |
| Closest Tolerance |
±0.05mm |
| Polishness |
Ra0.6 |
| Axiality |
0.005mm |
| Verticality |
0.005mm |
Key Features
- Precision die casting mold parts with extended service life, manufactured using specialized precision machine tools and experienced technicians
- Premium materials including ASSAB 8407, Hitachi SKD61, and Daido DH2F
- Enhanced wear and corrosion resistance through DLC and TIN treatments, increasing mold life by over 2 times
- High surface hardness with strong internal hardness and excellent resistance properties
- Ideal for export die-casting molds and high-temperature working environments up to 600°C
Application Fields
Medical, Packaging, Aerospace, Electronics, Die Casting Dies, Bottle Cap, Automotive, Cosmetic, and related industries.
Drawing Formats
PDF, DWG, DXF, IGS, STEP, and other standard formats
Business Terms
Payment: T/T, PayPal, Western Union (50% deposit, balance before shipment)
Packaging: PE bag with anticorrosive oil, foaming film with carton, or wooden box per customer requirements
Delivery: 7-15 working days for standard ejector pins (varies by quantity)
Shipping: DHL, UPS, FEDEX express (3-5 days) or ocean shipment for larger quantities
Company Advantages
- Clean and organized manufacturing facility
- Strict quality management with skilled, experienced technicians
- Comprehensive material selection (imported and domestic) to meet diverse customer needs
- High-precision equipment including surface grinding, Sodick wire-cutting, and drilling machines
- Comprehensive quality control throughout all production processes
- Multilingual support in English and Japanese
Our Services
- Specialized in precision mold parts with prompt response within 24 hours
- Advanced facilities and experienced engineering team
- Guaranteed quality with superior material selection
- Customer-oriented approach with efficient cost control solutions
- One-stop service with immediate problem resolution
- 100% inspection of all parts before shipment
Main Products
- Core pins, cavity pins, insert pins
- HSS punches, precision punches, special-shaped punches
- Ejector pins, ejector sleeves, two-stage ejector pins
- Guide pillars, guide bushings, guide post sets
- Slide core units, latch locks, locating series
