Product Details:
|
| Product Name: | Ejector Pins | Material: | SKD61 |
|---|---|---|---|
| Tolerance: | +/-0.02mm | Hardness: | 48-52HRC |
| Application: | Injection Mould | Dimensions: | As Drawing |
| High Light: | sleeve ejector pin,mould ejector pins |
||

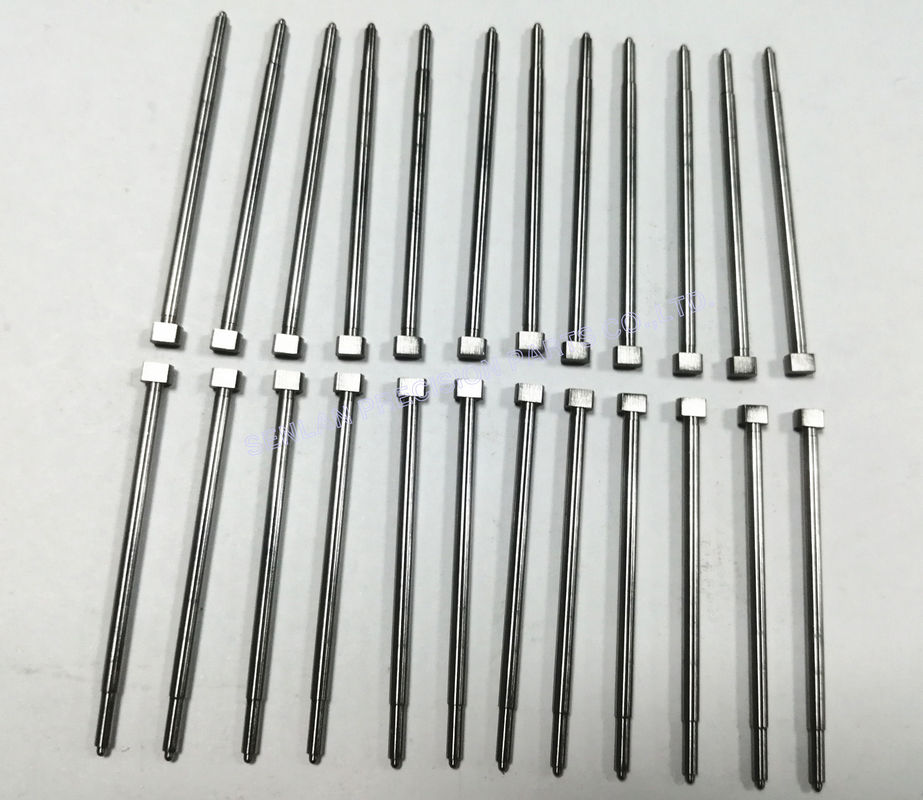

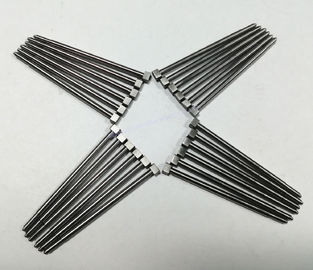

SKD61 Material Flat Square Head Ejector Pins Straight Ejector Pins With 52HRC
Ejector Pin are made from the finest grade of SKD61 hotwork die steel. The heads are hot forged and stress relieved for uniform grain flow and high tensile strength.The surface is ion nitride coated to a hardness of HV 1000°±100°. The core of vacuumed pin is hardened to HRC 50+/-2. Our coating is done in a proprietary process that produces an ideal combination of toughness and long life. The high surface finish reduces friction and increases pin service life.
Product Detail
| Material | SKD61,SKH51,ASP23,SKD11,,HSS,A2,M2,D2,SUJ2,S45C,ect |
| Standard | Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect |
| Size | Depend on your drawings or products standard |
| Place of origin | Dongguan, Guangdong, China |
| Heat treatment | Available |
| Surface Work | TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available |
| Tolerance | + - 0.02mm |
| Polishness | Close to Ra0.2 |
Application filed
Medical/Packaging/Aerospace/Electronics/ Die casting dies/Bottle cap/Auto/Cosmetic etc......
Drawing Format
PDF/DWG/DXF/IGS/STEP,etc
Payment Terms
T/T,Paypal,Western Union,50% deposit, balance before shipment is available
Package
Coated with anticorrosive oil, packed in carton box
Shipment ways
DHL,TNT,Fedex are available
Machinery & Equipments
Why choose us
Service
1.Customer's request is our purpose and target.
2. Quick samples delivery service and produce according to your BOM.
3. Professional production team, strictly quality control department, experienced sales department.
4. One-stop solution for our long term customers .
5. Customized size and OEM/ODM service acceptable.
6. 100% inspect before deliver , quality warranty and long term after-service .
7.Competitive price ,Excellent service , Quick delivery , Safety payment , Flexible trade terms.
Main products
1.Core pin,cavity pin,insert pin etc
2.HSS punch ,Precision punch ,Special-shaped punch
3.Ejector pins,ejector sleeve,two-stage ejector pins etc
4.Guide pillars ,Guide bushings ,Guide post set
5.Slide Core Units,Latch locks,locating Series
FAQ
1. Could I have prices of your products?
A: Welcome. Pls feel free to send us an email here. You will get our reply in 24 hours.
2. Can we print our logo/website/company name on products?
A:Yes, please advise the information of the logo.
3. What's the lead time for regular order?
A: It is about 7-15 working days for regular order.
4. Can I get a discount?
A: Yes, please contact us to get the best price.
5. Do you inspect the finished products?
A: Yes, each step of production and finished products will be came out inspection by QC department before shipping.
