SKH51 Material Die Punch Pins / Polished Punching Pins For Staming Punch Mould

China SKH51 Material Die Punch Pins / Polished Punching Pins For Staming Punch Mould supplier
SKH51 Material Die Punch Pins / Polished Punching Pins For Staming Punch Mould supplier SKH51 Material Die Punch Pins / Polished Punching Pins For Staming Punch Mould supplier

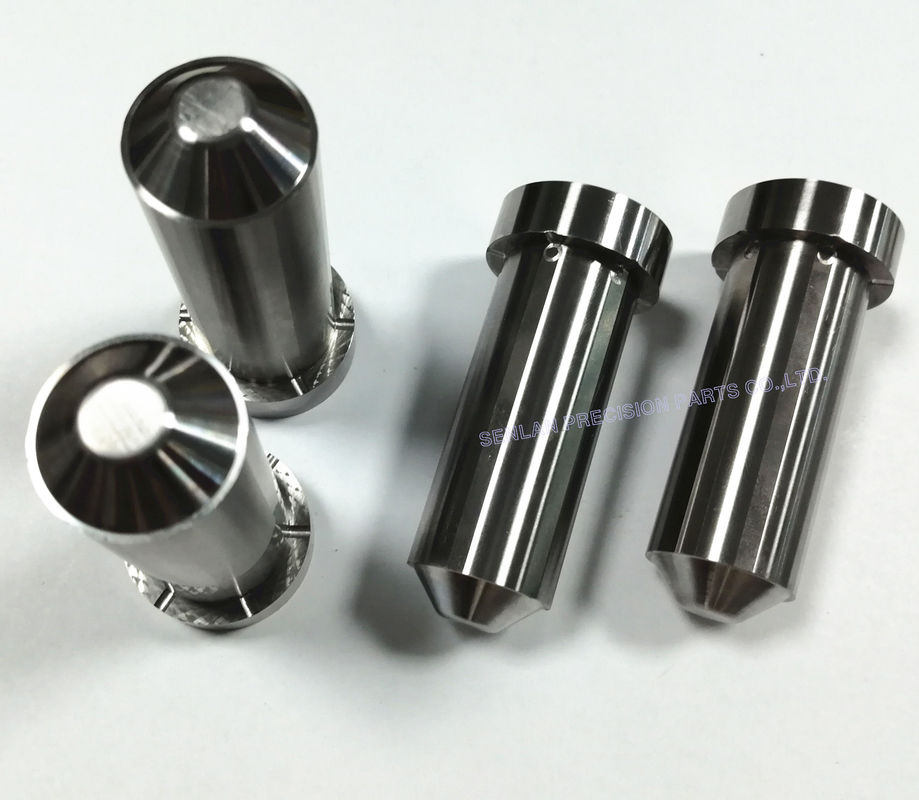

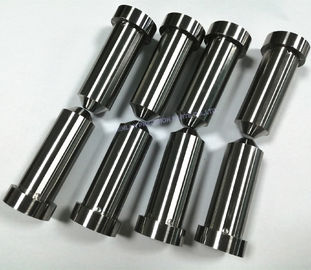

Large Image :  SKH51 Material Die Punch Pins / Polished Punching Pins For Staming Punch Mould

Product Details:

Place of Origin: China
Brand Name: SENLAN
Certification: ISO9001
Model Number: SL-049

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Coated with anticorrosive oil, packed in carton box
Delivery Time: 5-15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 2000pcs/week
Contact Now
Detailed Product Description
Product Name: Punching Pins Material: SKH51
Tolerance: +/-0.01mm Hardness: 58-60HRC
Application: Staming Punch Mould Dimensions: Customized

SKH51 Material Die Punch Pins Polished Punching Pins For Staming Punch Mould



The die punch pin is an indispensable accessory for the working of the stamping die. It is a replaceable mold consumable. It is mounted on the stamping die for continuous punching and punching operations, so that the material to be processed is separated or plastically deformed, thereby obtaining the required Finished or semi-finished products.According to the different materials, the punch pin can be divided into SKD punching pin/SKH punching pin/ASP punching pin.SKD punching pins are made of SKD special mold steel.



They can have different shapes according to the needs of production.SKH punch pins, ASP punch pins, tungsten steel punch pins and high-speed steel punch pins have different appearances due to different materials. Tungsten steel punch pins look darker in color, while high-speed steel punch pins are brighter in color.



Product Detail

Material SKH51
Hardness 58-60HRC or Depend on the material
Heat treatment Available
Service Made-to-order
Surface treatment TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Closest tolerance + - 0.01mm
Polishness Ra0.6
Axiality 0.005mm
Verticality 0.005mm



Die punch pin manufacturing process
1. Drawing, cutting

The raw materials that have passed the test are drawn into a desired diameter size by a wire drawing machine, and then cut into a rod-shaped punching pin blank of a fixed length.
2. Heat treatment
Before the heat treatment, the punching blank is firstly straightened on the straightening platform with a dial gauge, and then placed in a high-frequency electric furnace or a salt bath furnace to be heated to 800-1300 degrees Celsius for 2 to 5 minutes. After oil quenching and hardening, the tip hardness of the quenching heat treatment can reach Hv590-800. Then the low temperature tempering treatment is carried out.
3. Grinding processing
The punching pin is clamped on the spring collet of the machine tool, and the grinding forming process is separately performed according to the angular requirements of the various needle bases of the punching pin.
4. Polishing
Polishing is to clean the surface of the oil, rust, etc., and clean the surface.
5. Inspection, storage
According to the required index, the qualified ones can be packed into the warehouse.



Service

(1) Team work-We have experienced engineers, programmers, QC, sales and management team.  Every member is firmly connected to well fulfill customers' orders.

(2) Skill–We hold skill explore training every month . Engineers, programmers and workers share new ideas and skills together to continuously improve machining skill.

(3) Excellent communication – Sales members are fluent English speaking, proactive and have knowledge about machining, They can easily understand what you want.



Main products
1.Core pin,cavity pin,insert pin etc
2.HSS punch ,Precision punch ,Special-shaped punch
3.Ejector pins,ejector sleeve,two-stage ejector pins etc
4.Guide pillars ,Guide bushings ,Guide post set
5.Slide Core Units,Latch locks,locating Series



SKH51 Material Die Punch Pins / Polished Punching Pins For Staming Punch Mould
