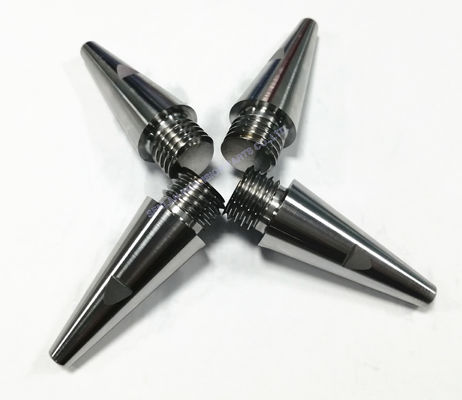

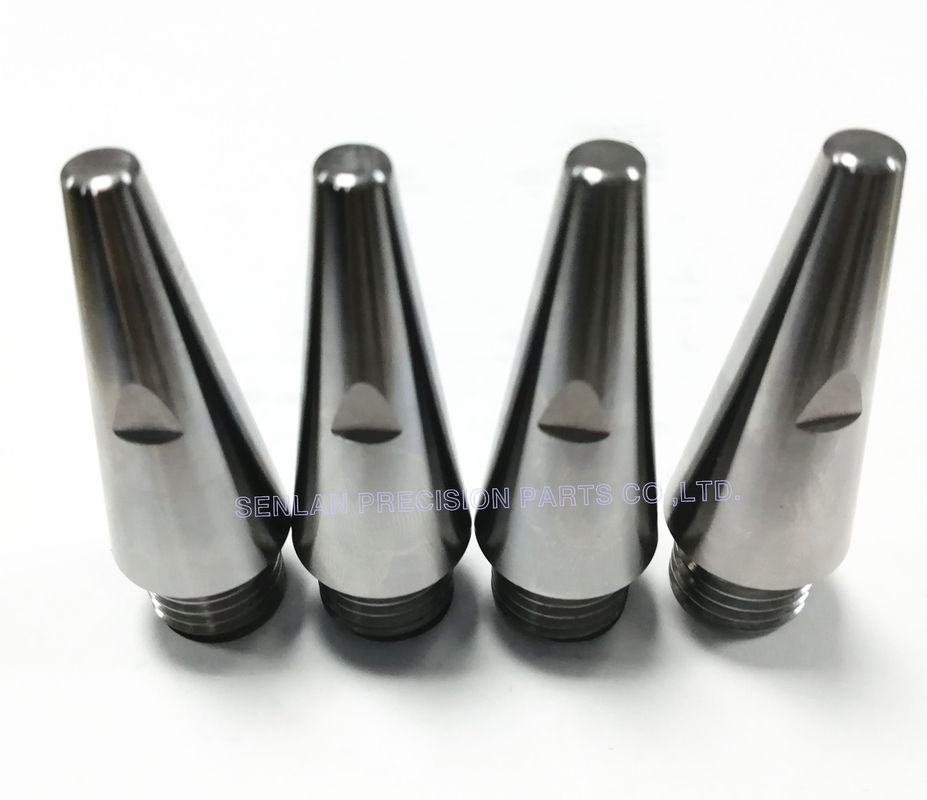

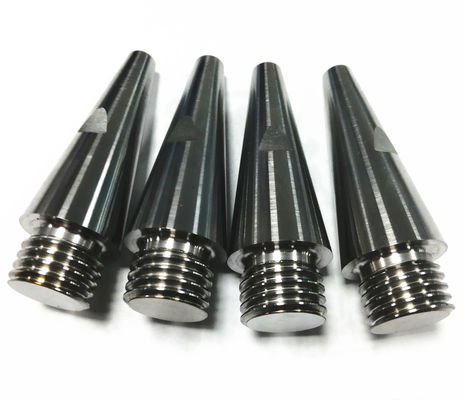

H13 (SKD61) Precision Turned Parts | Tapered Threaded CNC Machined Components

Product Overview

H13 (SKD61) precision turned parts with tapered threaded structures are critical functional components used in injection molding mould systems that require high thermal stability, mechanical strength, and reliable fastening performance. Manufactured by Senlan Precision, these CNC machined components are produced strictly according to customer drawings for mould and tooling applications.

Core Features & Technical Advantages

• Material: H13 / SKD61 Tool Steel
  Excellent resistance to heat, fatigue, and thermal cracking

• Tapered Threaded Design
  Provides self-centering capability, improved load distribution, and secure locking

• High Precision CNC Turning
  Stable concentricity, thread accuracy, and dimensional consistency

• Suitable for High-Cycle Mould Operation
  Designed for long service life in injection mould environments

• Built-to-Print / OEM Manufacturing
  Fully customized production based on customer drawings and specifications

Application Scenarios / Industry Applications

• Injection Molding Mould Components

• Bottle Cap and Closure Mould Systems

• Medical Packaging and Syringe Mould Tooling

• Multi-Cavity Plastic Mould Assemblies

• Precision Mold Inserts and Connectors

These H13 precision turned parts are commonly used where threaded connection strength, heat resistance, and positional accuracy are essential.

Mould Structure & Design Explanation

In injection mould structures, tapered threaded CNC machined components are typically applied to:

• Lock and position mold cores, inserts, or support elements

• Reduce assembly stress and improve repeatability

• Maintain stability under repeated thermal expansion cycles

Compared to straight threads, tapered threads enhance contact surface engagement and reduce loosening during high-temperature mould operation.

Manufacturing Capability & CNC Machining Capacity

Senlan Precision produces H13 (SKD61) CNC turned components using:

• CNC Turning for tapered threads and axial precision

• CNC Milling for auxiliary features if required

• Heat Treatment Control to ensure hardness and toughness balance

• Precision Grinding (optional) for tight tolerance interfaces

Typical tolerance capability: ±0.01 mm
Tighter tolerances available based on design requirements.

Custom Development / OEM Cooperation Process

1. Drawing Review & Technical Confirmation
   Material grade, thread geometry, taper angle, and tolerances

2. Machining Process Planning
   Turning sequence and heat treatment planning

3. Precision CNC Machining
   Controlled production with in-process inspection

4. Final Quality Inspection
   Dimensional, thread profile, and visual verification

5. Batch Supply & Long-Term Support
   Suitable for mould maintenance and replacement cycles

Quality Control & Export Experience

• ISO 9001 quality management system

• H13 / SKD61 material traceability

• Precision measuring equipment for threads and concentricity

• Stable export experience for mould and tooling components

• Inspection reports available upon request

Related Precision Mould Components (Internal Links)

• H13 Mold Core Inserts

• Precision CNC Mold Components

• Threaded Injection Mould Parts

• Custom Mold Insert Manufacturing

• High-Temperature Tool Steel Components

Frequently Asked Questions (FAQ)

Q1: Why is H13 (SKD61) commonly used for threaded mould parts?
A: H13 offers excellent thermal fatigue resistance and toughness, making it suitable for threaded components exposed to repeated heating and cooling cycles.

Q2: Are these parts standard or off-the-shelf?
A: No. All parts are manufactured on a built-to-print basis according to customer drawings.

Q3: Can non-standard tapered thread designs be produced?
A: Yes. Custom thread profiles, taper angles, and tolerances are supported.

Q4: Do you support small batch or prototype orders?
A: Yes. Prototype, small batch, and long-term production orders are all supported.

Request a Technical Quotation

For H13 (SKD61) precision turned parts, tapered threaded CNC machined components, or OEM injection mould tooling, please contact Senlan Precision with your drawings and technical requirements.
Our engineering team will provide a detailed technical evaluation and quotation.
