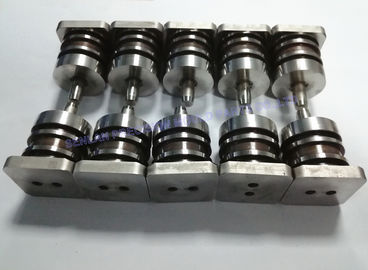

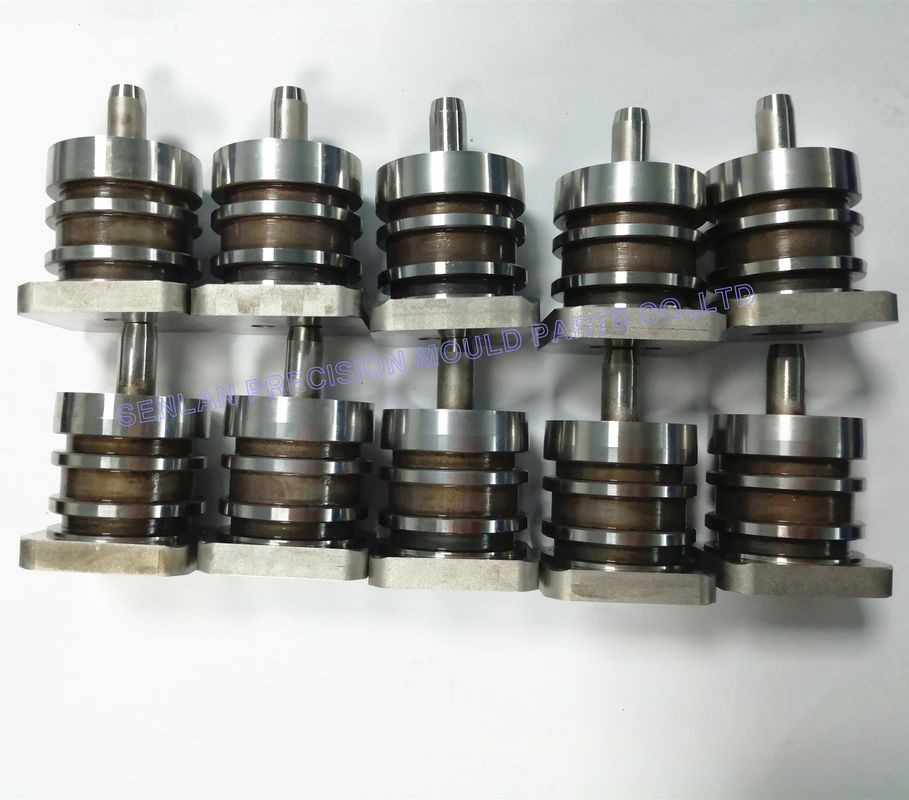

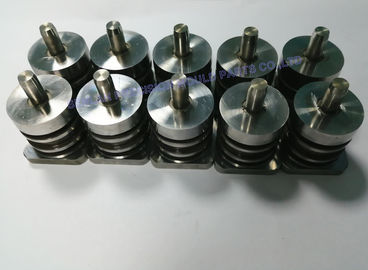

1.2343 Material Precision Mould Parts / EDM Machining Plastic Mold Parts

1.2343 Material Precision Mould Parts / EDM Machining Plastic Mold Parts
1.2343 Material Precision Mould Parts / EDM Machining Plastic Mold Parts 1.2343 Material Precision Mould Parts / EDM Machining Plastic Mold Parts 1.2343 Material Precision Mould Parts / EDM Machining Plastic Mold Parts

Large Image :  1.2343 Material Precision Mould Parts / EDM Machining Plastic Mold Parts

Product Details:
Place of Origin: China
Brand Name: SENLAN
Certification: ISO9001
Model Number: SL-038
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Coated with anticorrosive oil, packed in carton box
Delivery Time: 5-15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 2000pcs/week

1.2343 Material Precision Mould Parts / EDM Machining Plastic Mold Parts

Description
Material: 1.2343 Hardness: 48-52 HRC
Tolerance: +/-0.01mm Application: Plastic Mould
Type: EDM Service: Customized OEM
High Light:

precision mold components

,

injection molded parts

,

EDM Machining Precision Mould Parts

1.2343 Material Precision Mould Parts / EDM Machining Plastic Mold Parts



EDM is the principle of removing the material on the surface of the workpiece by de-layering the high temperature generated by the spark between the electrode and the workpiece. EDM is suitable for the processing of high hardness conductive workpieces. CNC EDM machines are the best example of EDM.



EDM machining is mainly used for processing various shapes and delicate and delicate workpieces, such as punches, dies, embossing dies, fixing plates, unloading plates, etc. for forming dies, forming knives, stencils, metal electrodes for EDM processing Various micro-holes, narrow slits, arbitrary curves, etc., have outstanding advantages such as small machining allowance, high machining precision, short production cycle and low manufacturing cost. They have been widely used in production, and the current domestic and international electric sparks Wire cutting machines account for more than 60% of the total number of electric machine tools.


Product Detail

Material: 1.2343
Hardness 48-52 HRC or Depend on the material
Heat treatment Available
Service Made-to-order
Surface treatment TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Closest tolerance + - 0.01mm
Polishness Ra0.6
Axiality 0.005mm
Verticality 0.005mm



Feature

1. EDM processing speed and surface quality
Molds in EDM processing generally use coarse, medium and fine grade processing. Roughing is realized by high power and low loss, while the relative loss of medium and precision machining electrodes is large, but in general, the middle and finishing allowances are small, so the electrode loss is also very small, which can be compensated by machining size control, or Ignore it without affecting the accuracy requirements.


2. EDM carbon residue and slagging
EDM processing can be carried out smoothly under the conditions of carbon residue generation and carbon residue removal. In practice, carbon slag is often sacrificed at the expense of processing speed, such as high voltage, large pause pulse wave, etc. in middle and finishing. Another reason for the exclusion of carbon residue is that the shape of the machined surface is complicated and the path of the chip removal is not smooth. Only actively create conditions for good exclusion, and take some measures to deal with it.


3. EDM workpiece and electrode loss each other
EDM discharge pulse time is long, which is beneficial to reduce electrode loss. EDM roughing generally uses long discharge pulse wave and large current discharge, and the processing speed is small and the electrode loss is small. In the case of finishing, the small current discharge must reduce the discharge pulse time, which not only increases the electrode loss, but also greatly reduces the processing speed.



Delivery & Payment & After-sale Service

Delivery & Payment & After-sale Service
Delivery

1.Express by air (UPS,DHL,FedEx,TNT,EMS etc.)
2.Ship by sea.
3.Customer's requirement is welcome.

Payment

1.T/T payment,L/C,D/A,D/P,
2.Paypal,Escrow.
3.Western Union,MoneyGram.

After-sale Service

Nice after-sale service will be offered and it is a good tradition in our factory.


Advantages
(1) Competitive in Price
As a manufacturer, we are looking for long-term business partners. Therefore we can provide very competitive market price.

(2) Quality in Material
We have stable raw marterial supporting us, to provide variable types and qualified materials into production.
Such as SKD-11,SKH-51,Tungten carbide,ASP-23,ASP-60etc., are our regular materials in stock.

(3) Precision in Size
How precision we can do in size is can meet MISUMI standard.

(4) Fast in Delivery
Because of well-organized management in Surpass, usually it only takes 15 days to delivery finished goods to customer.

FAQ:
Q: Are you a factory or trading company?
A: We are a factory, we have been producing hardware for more than 10 years.
Q: How does your factory do as quality control?
A: Quality is the soul of our factory. We have material inspection, process inspection, and full inspection before shipment to ensure excellent quality.
