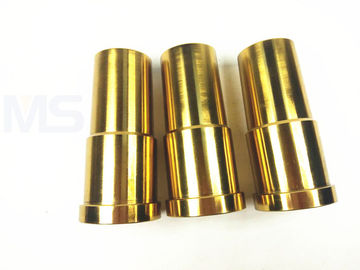

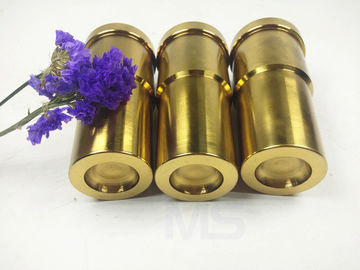

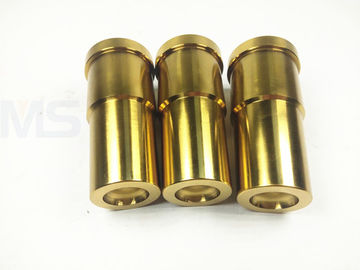

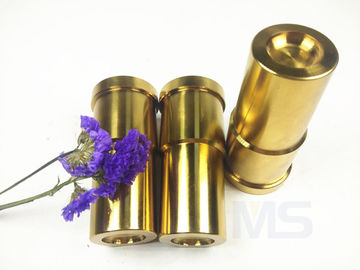

High Polished Surface Round Precision Mould Core Pins For Die Casting Dies

SKD61 High Polished Surface Round Precision Mould Core Pins For Die Casting Dies.

Basic information

1. Material

SKD61/DAC/8407/S136/SUS420/STAVAX and more..

2. Hardness

48-52 HRC or depends on processing materials

3. Specification

• Size tolerance within +/-0.002mm
• Axiality within 0.005mm
• Surface Roughness within Ra0.6
• Verticality within 0.005mm
• The multi-cavity is well-matched
• Further dimensions,lengths and materials available on request

Main Products:

We manufacture precision mould components, non-standard or customized mould spare parts according to customers' drawings as per GB, DIN, JIS and AISI international industrial standards.

For a inquiry, kindly provide us the drawing and specification. Thanks.

Welcome OEM/ODM orders! ! !

----Size tolerance within 0.001mm
----Axiality within 0.002mm
----Roundness within 0.0015mm
----Surface roughness within Ra 0.025
----Straightness within 0.002
---EDM and grinding tolerance within 0.002mm.
---High Quality & Competitive Price.
---Precise manufacture & Performance Process.


Equirpment: Each part will be tested 100% before shipment

Processing equipment:

Sodick EDM, Mitsubishi mirror spark machines, Taiwan grinding and milling machines, CNC processing center and Wire cutting machines, etc.

Application field: Medical , Cosmetic , Bottle Cap ,Packaging, Auotmotive, Electrical ,etc.........

Further Information

Packing & Delivery

Spot Light of SENLAN

• Established in 2006
• Factory size : 2500 square meters
• Research & Development Group : 6 people
• Equipment & Machine : all imported precision ones
• Good reputation in Mold Components Area.
• One-step servise for your much time and cost .
• Complete quality management system.

Tooling Room

Products Display

Should you have any demands and interest in precision mould parts . Welcome to your inquiry anytime!!!
