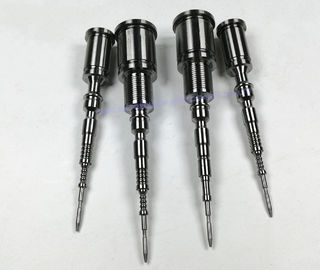

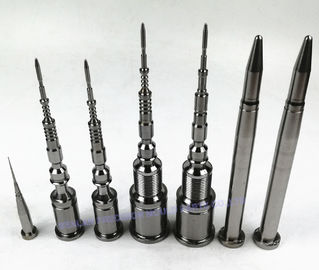

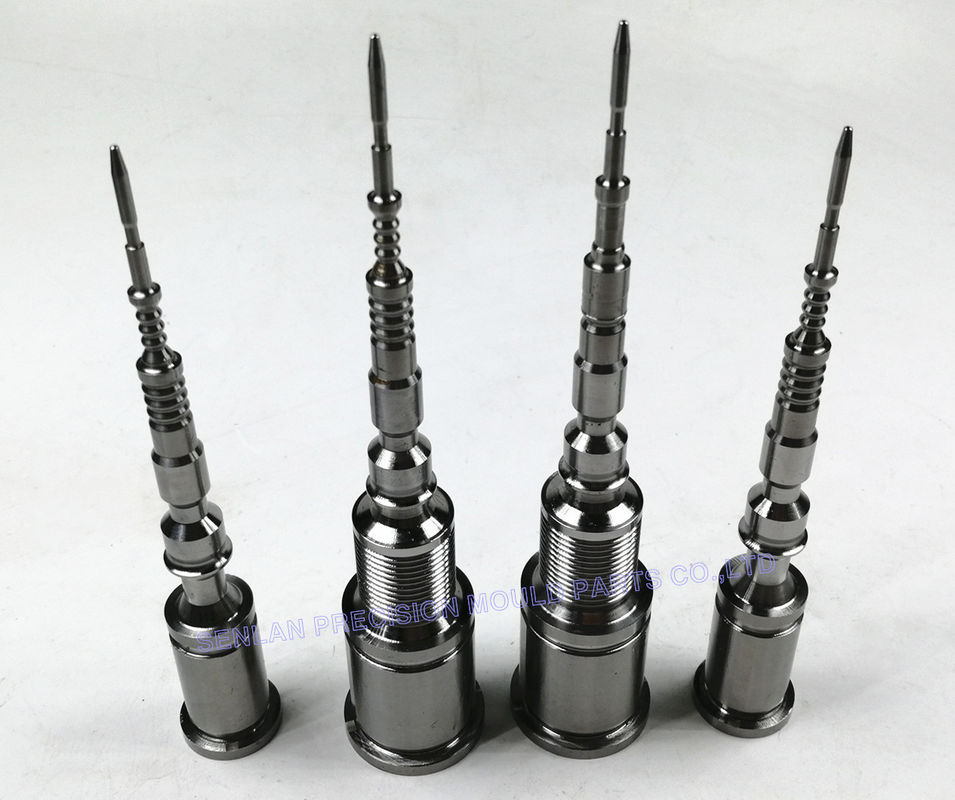

Special Shape Multi - Cavity Plastic Mould Parts For Plastic Insert Molding

Special Shape Multi - Cavity Plastic Mould Parts For Plastic Insert Molding
Special Shape Multi - Cavity Plastic Mould Parts For Plastic Insert Molding Special Shape Multi - Cavity Plastic Mould Parts For Plastic Insert Molding Special Shape Multi - Cavity Plastic Mould Parts For Plastic Insert Molding

Large Image :  Special Shape Multi - Cavity Plastic Mould Parts For Plastic Insert Molding

Product Details:
Place of Origin: China
Brand Name: SENLAN
Certification: ISO9001
Model Number: SL-034
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Coated with anticorrosive oil, packed in carton box
Delivery Time: 5-15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 2000pcs/week

Special Shape Multi - Cavity Plastic Mould Parts For Plastic Insert Molding

Description
Tolerance: +/-0.005mm Merits: Long-life
Surface Treatment: Polished Material: SKD61
Application: Plastic Mould Hardness: 48-52 HRC
High Light:

injection mold components

,

plastic moulded components

Special Shape Multi - Cavity Plastic Mould Parts For Plastic Insert Molding​



When manufacturing plastic products via injection moulding, you can use either a single or a multi-cavity mould. What is the difference between the two and how can you choose the best one for your injection moulding project?
The difference between single-cavity and multi-cavity moulds.A single-cavity mould produces a single product per cycle, while a multi-cavity mould produces more than one product per cycle.


Product Detail

Product name Special Shape Multi - Cavity Plastic Mould Parts For Plastic Insert Molding
Shape types Taper Black Set, Straight Block Set, Round Block Set etc.
Material SKD61, SKH51, SKD11, SK2, YK30, 55#Steel etc.
Grinding Precision 0.002mm
Surface roughness RA0.6
Verticality 0.005mm
Tolenrance 0.005mm
Specification and Variables

1)Highly polished finish 6-8 micro finish.
2)Precision form ground to close diameter tolerance +.0005/-.0005
3)Common fractional sizes are available.
4)M-2 high speed steel 60-62 Rockwell C.
5)Custom sizes can be made to order up to 1" diameter.
6)Custom hardness 58 HRC available on request.

Sizes Special sizes can be customized
Quality Guarantee high quality



Pros of a multi-cavity mould
(1) The desired number of products will be finished sooner because of the shorter lead time per batch;
(2) You can produce more products with the same mould within the shot guarantee;
(3) A four-cavity mould has, in most cases, a lower total cost of ownership than four single-cavity moulds.
(4) More efficient use of the cycle time;
(5) Major scale benefits for stable processes;
(6) Lower part price.


Advantage

1) The product is large in batch size, and multiple molds can produce multiple workpieces in one injection cycle to improve efficiency.
2) The parts are small, but only larger injection molding machines are available. At this point, multiple parts can be placed in one mold for simultaneous production.
3) Each cavity must be in a state of stress balance as a whole, otherwise it will easily cause abnormal wear of the injection molding machine.
4) Pay attention to the balance of the runner casting system, with runner and gate control
5) One-mode multi-cavity is more complicated than single-cavity mold manufacturing, and the manufacturing price will increase according to the increase of the number of cavities.



Service

Service We Can Offer You
Quick Response Your inquiry will be replied within 24 hours.
High Quality Well-trained workers and more than 10 years experience.
Competitive Price Directly from factory to save your money.
Short Lead Time Being efficient:3-7 days for samples and 10-35 days for quantity orders.
Flexibility Small orders are acceptable for quick delivery and to help you reduce stock cost.
OEM Custom fabrication according to your drawings ,samples or designs.
