HSS Precision Core Pins | 0.005mm Perpendicularity for Medical Molds

Product Overview

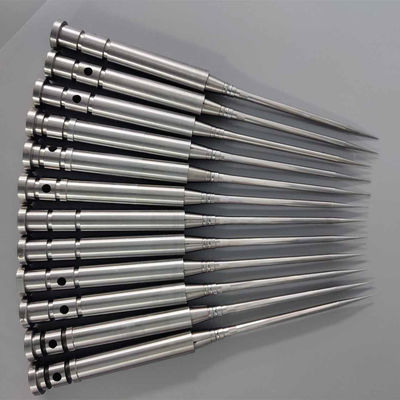

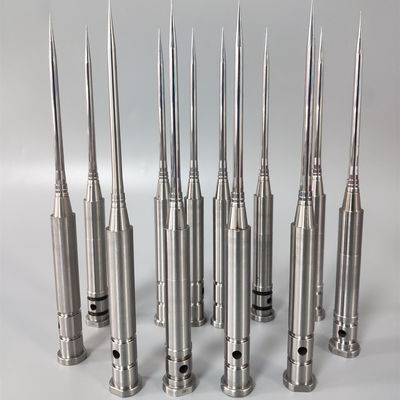

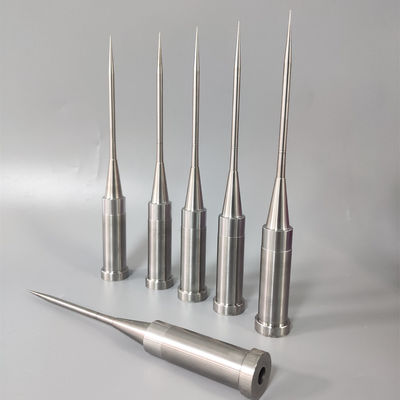

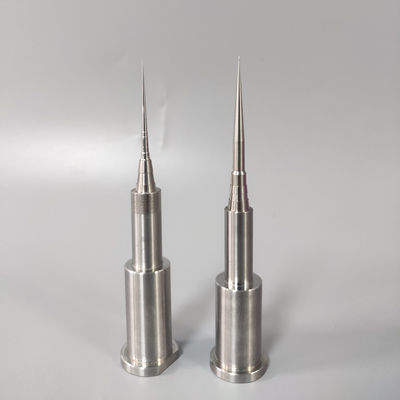

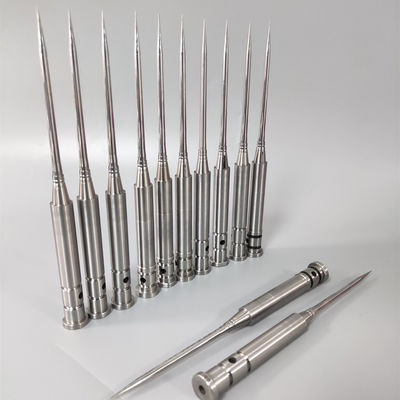

HSS material precision injection mold core pins manufactured for high-accuracy medical plastic tooling applications. These core pins are produced with controlled verticality within 0.005 mm, ensuring stable alignment, repeatable molding performance, and consistent part quality. All components are manufactured strictly according to customer drawings under Built-to-Print and OEM requirements.

Key Features & Technical Advantages

• High Speed Steel (HSS) material for wear resistance and dimensional stability

• Verticality controlled within ≤ 0.005 mm

• Precision cylindrical grinding and fine machining processes

• Stable performance in high-cycle injection molding environments

• Suitable for tight-tolerance medical mold assemblies

• Fully customized dimensions based on customer drawings

Applications & Industry Use

• Medical plastic injection molds

• Syringe, pipette, and laboratory consumable molds

• Precision cavity and core assemblies

• High-tolerance multi-cavity mold systems

• Injection mold tooling requiring strict alignment control

Mold Structure & Design Description

These precision core pins function as critical forming and positioning elements inside medical injection molds. Verticality control is essential to ensure concentricity, uniform wall thickness, and consistent demolding behavior. The pin geometry, length, diameter, and fit tolerance are manufactured according to customer-specified drawings to match the overall mold structure and cavity layout.

Manufacturing Capability & CNC Machining Capacity

Senlan Precision maintains stable manufacturing capability for high-accuracy mold core pins, supported by advanced machining equipment, including:

• High-precision machining centers from MAKINO

• Precision CNC turning and grinding equipment from HARDINGE

• Cylindrical grinding for verticality and straightness control

• Capability to achieve micron-level tolerance requirements

• Controlled surface finish suitable for medical tooling

Custom Development & OEM Cooperation Process

1. Customer drawing and technical requirement review

2. HSS material selection and heat treatment planning

3. CNC turning, grinding, and finishing processes

4. In-process inspection of verticality and dimensions

5. Final inspection, packaging, and export preparation

All parts are produced under OEM / Built-to-Print cooperation. No standard sizes are used.

Quality Control & Export Experience

• Incoming HSS material inspection

• In-process dimensional and verticality inspection

• Final inspection with precision measuring equipment

• Quality records available upon request

• Experience supplying precision mold components to international medical mold manufacturers

Related Products

• Precision mold core pins and ejector pins

• High-tolerance cavity inserts for medical molds

• CNC machined mold components

• Multi-cavity injection mold spare parts

FAQ (Technical & Purchasing)

Q1: How is verticality within 0.005 mm ensured?
A: Verticality is controlled through precision grinding processes and in-process measurement.

Q2: Can dimensions be fully customized?
A: Yes. All core pins are manufactured strictly according to customer drawings.

Q3: Is this product suitable for high-cycle medical molds?
A: Yes. HSS material provides wear resistance and dimensional stability for repeated cycles.

Q4: Do you provide design modification suggestions?
A: Manufacturing is based on customer drawings. Technical feedback can be provided if requested.

Get a Quote

Please submit your drawings or technical specifications to Senlan Precision to receive a quotation for HSS precision injection mold core pins with controlled verticality for medical plastic tooling.
