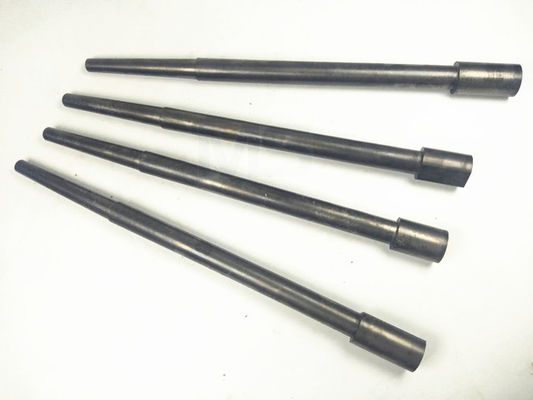

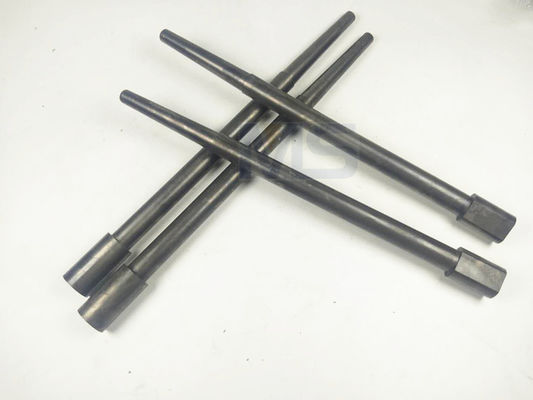

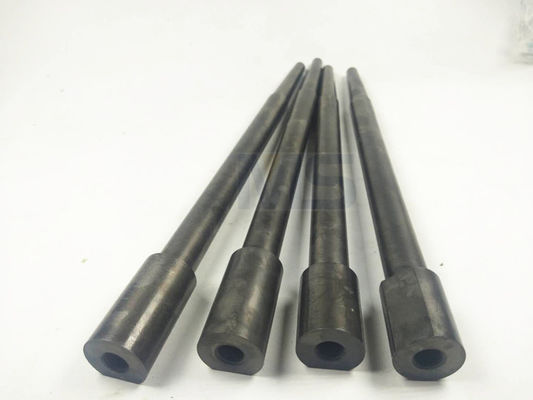

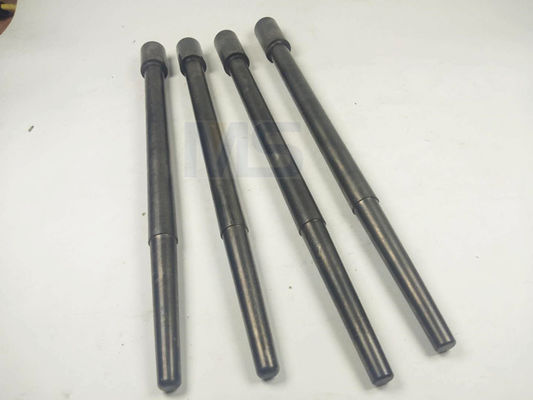

HPDC Machine Parts | Core Pins with Internal Cooling Holes | Die Cast Tooling

Product Overview

Our High Pressure Die Casting Machine Parts with Cooling Hole Core Pins are specifically designed to enhance die casting tooling processes. These precision-engineered core pins are made from high-quality materials and feature integrated cooling holes to ensure optimal temperature control during the casting process. With their ability to withstand high pressures, they are essential for producing durable, high-quality castings in industries like automotive, medical, and packaging.

Core Features & Advantages

• Cooling Hole Design: Built-in cooling channels to ensure even heat distribution and faster cycle times, increasing efficiency and reducing wear.

• High Pressure Resistance: Made from durable, high-quality materials, these core pins can withstand the extreme pressures involved in die casting without compromising on performance.

• Precision Engineering: Manufactured with CNC precision to ensure tight tolerances, ensuring the exact dimensions and functionality needed for high-quality casting results.

• Customizable Design: Available in a wide range of shapes and sizes, our core pins are fully customizable to fit your die casting tooling requirements.

• Long-Lasting Durability: Designed for high-temperature environments, these core pins provide extended service life, reducing downtime and increasing operational efficiency.

Applications & Industry Use

These high-pressure die casting core pins are used across various industries, including:

• Automotive Industry: Used in the production of high-precision automotive components such as engine parts, housings, and structural elements.

• Packaging Industry: Ideal for producing parts for bottle caps, seals, and other packaging components, where accuracy and durability are key.

• Medical Industry: Critical in the molding of medical device components, where precise tolerances and temperature control are required.

• Industrial Manufacturing: Suitable for creating mechanical parts and tools that need to withstand high pressure and thermal stress.

Mold Structure & Design Explanation

• Cooling Hole Technology: Our core pins are equipped with strategically placed cooling holes to ensure optimal cooling during the die casting process. This reduces cycle time and improves the quality of the final product.

• High-Pressure Performance: Engineered to handle the extreme pressure and high temperatures typical in die casting, ensuring consistent, high-quality results with minimal deformation or damage.

• CNC Precision: Manufactured with CNC machining to achieve exact specifications, these core pins are ideal for industries that require tight tolerances and high precision.

• Custom Fit: We offer fully customizable core pins to meet the specific design and dimensional requirements of your die casting tooling process.

Manufacturing Capabilities & CNC Machining Expertise

• Advanced CNC Technology: Our state-of-the-art CNC machining processes ensure that each core pin is manufactured with high precision, meeting the strict tolerances required in die casting tooling.

• Material Expertise: We use only high-quality materials that can withstand the extreme conditions of die casting, ensuring durability and optimal performance.

• High-Volume Production: Whether you need a small batch or a high-volume production run, we are equipped to handle orders of any size with quick turnaround times.

• Customization: We work closely with you to develop customized core pins that meet your exact specifications, from size and shape to the design of the cooling holes.

Custom Development / OEM Process

1. Design Consultation: Our engineering team works with you to understand your specific requirements for core pins and die casting tooling, including dimensions, material, and cooling hole placement.

2. Prototyping: We create prototypes of the core pins, allowing you to evaluate the design and functionality before full-scale production begins.

3. CNC Machining: Once the design is approved, the core pins are precision-machined using CNC technology to ensure the exact tolerances and features you require.

4. Testing and Quality Assurance: Each batch undergoes thorough testing to ensure it meets the highest standards for performance, durability, and dimensional accuracy.

5. Production and Delivery: After passing our quality checks, the core pins are manufactured in the required quantities and delivered to your location in a timely manner.

Quality Control & Export Experience

• ISO 9001 Certification: Our quality management system is ISO 9001 certified, ensuring that every core pin undergoes rigorous testing and quality control measures.

• Advanced Testing: We perform extensive tests, including dimensional checks, pressure resistance testing, and thermal cycling tests, to guarantee the reliability and performance of the core pins in die casting applications.

• Global Delivery: With extensive experience in international trade, we ensure timely delivery of your products, meeting all necessary export requirements.

Related Products (Internal Links)

• Die Casting Core Pins

• Precision Die Casting Parts

• CNC Precision Molding Inserts

• Customized Molding Components

Frequently Asked Questions (FAQ)

Q1: What material is used for the core pins?
Our core pins are made from high-quality steel alloys designed to withstand extreme pressure and high temperatures. The material choice ensures excellent wear resistance and durability.

Q2: How do the cooling holes improve performance?
The cooling holes in the core pins allow for faster cooling during the die casting process, reducing cycle time and improving the final product’s dimensional accuracy.

Q3: Can I customize the size and design of the core pins?
Yes, we offer custom core pins tailored to your specific die casting needs, including custom sizes, shapes, and cooling hole placements.

Q4: What industries are these core pins used in?
These core pins are ideal for use in the automotive, packaging, medical device, and industrial manufacturing industries, particularly in high-pressure die casting applications.

Get a Quote

Are you ready to improve your die casting tooling with precision core pins? Contact us today for a customized quote and expert consultation on your die casting mold parts requirements. Our team is here to assist with your unique project needs.
