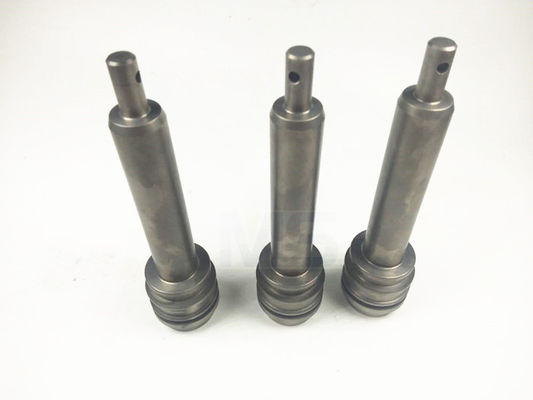

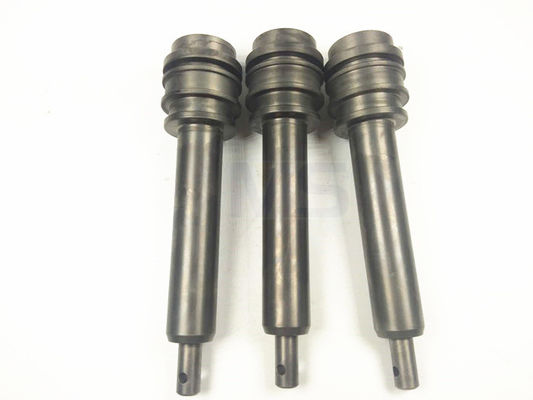

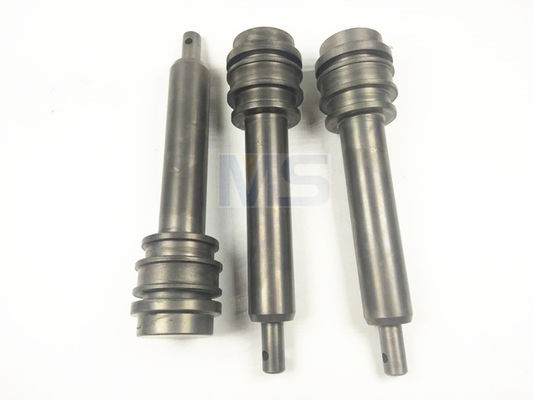

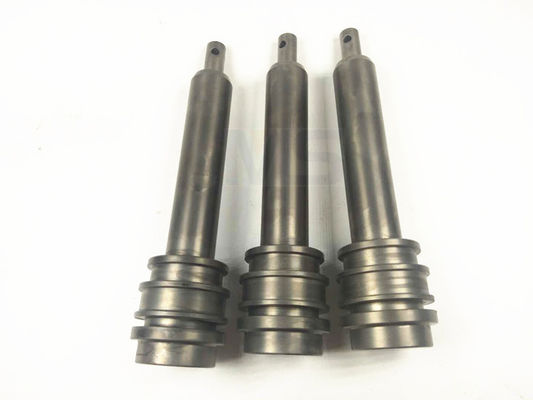

DAC Steel Precision Core Pins | Nitriding Coating & Round Thread | Die Casting

Product Overview

Our DAC Material Nitriding Coating Precision Core Pin is specifically designed for die casting applications, offering high durability and precision. With a nitriding coating and round thread, these core pins are ideal for high-volume production, particularly in industries like packaging, medical devices, and automotive parts. They are engineered to withstand rigorous demands, ensuring optimal performance in high-temperature and high-pressure environments.

Core Features & Advantages

• Nitriding Coating: The nitriding coating enhances wear resistance, corrosion resistance, and hardness, ensuring long-lasting performance even under harsh working conditions.

• Precision Engineering: Manufactured with high-precision CNC machining, ensuring tight tolerances (±0.02mm) for optimal fit and function in die casting applications.

• Round Thread Design: The round thread is ideal for improved strength and stability, enhancing the core pin’s ability to endure stress during injection molding and die casting processes.

• Durable DAC Material: Made from DAC material, a high-performance alloy that provides exceptional strength, wear resistance, and durability.

• Customization Options: Available in various sizes and designs to meet your specific OEM and customization needs, including specific thread configurations and coating treatments.

Applications & Industry Use

The DAC Material Nitriding Coating Precision Core Pin is widely used in several industries, including:

• Packaging Industry: Ideal for bottle cap molds, seals, and closures, ensuring efficient and durable production.

• Medical Device Manufacturing: Crucial in the production of syringes, vials, and other medical components where precision and reliability are essential.

• Automotive Industry: Used for producing automotive parts, such as brackets and mounts, with superior strength and durability.

• Consumer Electronics: Suitable for high-precision components for electronic devices and connectors that require excellent wear resistance and longevity.

Mould Structure & Design Explanation

• Core Pin Structure: The core pin features a nitriding coating, which increases the hardness of the pin and reduces wear, extending the life of the mold.

• Round Thread Design: This design ensures better stability and strength when used in high-stress die casting and injection molding applications.

• Nitriding Coating: The nitriding coating significantly enhances the durability and corrosion resistance of the pin, allowing it to perform well even in aggressive casting environments.

• Optimized for High-Volume Production: Designed for high-efficiency production in industries requiring consistent, high-precision results.

Manufacturing Capabilities & CNC Machining Expertise

• Advanced CNC Machining: Utilizing state-of-the-art CNC turning and milling technologies, we ensure that each core pin is manufactured to the highest standards with tight tolerances.

• Material Expertise: We use DAC material with specialized nitriding coating to ensure long-lasting durability and superior performance in demanding environments.

• Customization & Prototyping: We offer custom-designed core pins tailored to your specific requirements, including prototypes for testing and optimization before mass production.

• Scalable Production: Whether you require small batch or large-scale production, we can meet your needs with fast lead times and consistent quality.

Custom Development / OEM Process

1. Initial Consultation & Design: Our engineers work with you to define your specific requirements for core pins, including size, shape, and thread design.

2. Prototyping & Testing: We create prototypes for testing to ensure that the core pins meet your functional and quality standards before moving to mass production.

3. CNC Machining: Once approved, we proceed with CNC machining to produce the core pins with the desired design and nitriding coating.

4. Quality Control: Throughout the manufacturing process, we perform stringent quality checks, including dimensional inspections, thread integrity checks, and coating adherence.

5. Delivery & Export: After passing our quality control tests, your custom core pins are shipped on time to meet your production needs.

Quality Control & Export Experience

• ISO 9001 Certified: Our facility adheres to ISO 9001 quality management standards, ensuring that every product meets global quality benchmarks.

• Stringent Testing: Each core pin undergoes a series of tests, including hardness tests for the nitriding coating, thread inspection, and dimensional accuracy checks to ensure precision.

• Global Shipping: With years of experience in international shipping, we ensure compliance with export standards and offer reliable delivery worldwide.

Related Products (Internal Links)

• Custom CNC Precision Molding Parts

• Die Casting Mould Components

• Nitrided Core Pins for Injection Molding

• Automotive Moulding Components

Frequently Asked Questions (FAQ)

Q1: What is the advantage of nitriding coating for core pins?
The nitriding coating increases the hardness and wear resistance of the core pin, providing better protection against wear, corrosion, and heat. This improves the longevity of the pin, reducing downtime and increasing efficiency in production.

Q2: Can I customize the size and thread design of the core pins?
Yes, we offer customizable core pins tailored to your specific requirements, including adjustments to the thread design, size, and other functional aspects.

Q3: How do you ensure the quality of your core pins?
We perform rigorous quality control at every step, from the initial design to production and final inspection. Each core pin is tested for dimensional accuracy, thread integrity, and coating durability.

Q4: What industries do you serve with these core pins?
Our nitriding-coated core pins are widely used in packaging, medical, automotive, and consumer electronics industries, especially for die casting and injection molding applications.

Get a Quote

Ready to optimize your production process with high-quality core pins for die casting and injection molding? Contact us today to request a custom quote for your precision mould parts needs. Our team is here to help with tailored solutions that meet your exact specifications.
