H13 (1.2344) Die Casting Mold Core Pins | TiN Coated 44-46 HRC Tooling Parts

Product Overview

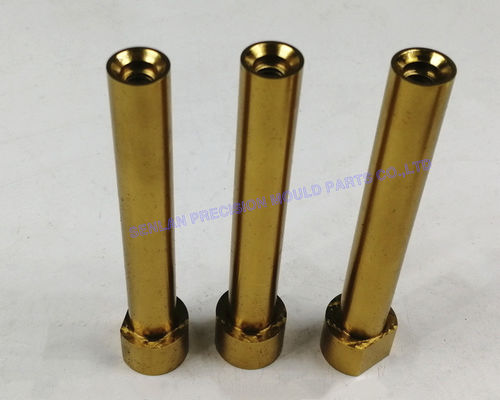

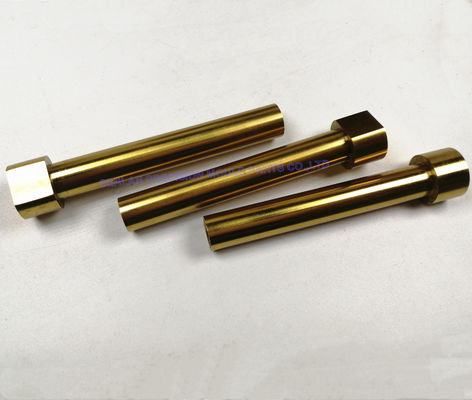

1.2344 (H13) TiN coated core pins are precision mold components used in injection molds requiring stable dimensional accuracy, wear resistance, and consistent surface performance. Manufactured through CNC machining, heat treatment to 44–46 HRC, and TiN coating, these core pins deliver reliable performance under repeated molding cycles. All components are custom produced strictly according to customer drawings and technical specifications.

Key Features & Technical Advantages

• Manufactured from 1.2344 (H13) hot work tool steel

• Heat treated to 44–46 HRC for balanced toughness and wear resistance

• TiN coating to reduce friction and improve surface durability

• High dimensional accuracy for critical mold features

• Stable performance under repeated thermal and mechanical loading

• Consistent surface quality for smooth molding and demolding

• Fully customized / OEM / Built-to-Print manufacturing

Applications & Industries

These 1.2344 TiN coated core pins are widely used in:

• Injection molds for packaging caps and closures

• Mold systems for bottle caps and sealing components

• Medical packaging molds and syringe-related tooling

• Precision molds requiring controlled wear behavior and long service life

They are especially suitable for applications requiring dimensional stability, surface durability, and repeatable molding performance.

Mold Structure & Design Description

Core pins are installed on the core side of injection molds and directly define internal product geometry or functional features.
Key design considerations include:

• Accurate pin diameter, straightness, and tip geometry

• Proper fit and alignment within mold assemblies

• Structural strength to withstand injection pressure and repeated cycles

• Compatibility with multi-cavity mold layouts

All core pins are designed and manufactured strictly according to customer drawings to ensure correct assembly and stable mold operation.

Manufacturing Capability & CNC Machining

Senlan Precision manufactures precision mold core pins using advanced CNC machining and finishing processes.
Our production facilities are equipped with high-precision machining centers and CNC lathes from MAKINO (Japan) and HARDINGE (USA), along with other internationally recognized equipment, enabling:

• Machining accuracy up to ±0.002 mm

• Stable tolerance control for slender and high-precision core pins

• Consistent surface quality prior to coating

• Reliable repeatability across production batches

TiN coating is applied after machining and surface preparation to ensure uniform coating thickness and performance.

Custom Manufacturing & OEM Cooperation

We specialize in custom manufacturing and OEM cooperation, supporting:

• Built-to-Print production based on 2D drawings or 3D models

• Custom material selection and heat treatment requirements

• TiN coating and other surface treatment options

• Small-batch prototyping and volume production

• Long-term supply of replacement and spare mold components

Technical communication is maintained throughout the project to ensure accurate execution of customer specifications.

Quality Control & Export Experience

With over 20 years of experience in exporting precision mold components, Senlan Precision operates a structured quality control system:

• Incoming material inspection and traceability

• In-process dimensional inspection after machining and heat treatment

• Coating inspection for thickness and surface condition

• Final inspection prior to shipment with full documentation

We are experienced in international technical communication, quality expectations, and export packaging requirements.

Related Mold Components

• Precision mold core pins

• Mold inserts and cavity inserts

• Mold sleeves and ejector components

• Multi-cavity mold spare parts

All related products are available on a custom manufacturing basis.

Technical FAQ

Q1: Are 1.2344 core pins manufactured strictly according to drawings?
Yes. All core pins are produced strictly based on customer-provided drawings and specifications.

Q2: Why is TiN coating applied to core pins?
TiN coating improves wear resistance, reduces friction, and helps maintain surface stability during long production runs.

Q3: What hardness range is supported for these core pins?
Typical hardness is 44–46 HRC, providing a balance between strength and toughness.

Q4: What machining tolerance can be achieved?
Depending on geometry and length, machining accuracy up to ±0.002 mm can be supported.

Request a Quotation

For pricing, lead time, or technical discussion regarding 1.2344 TiN coated core pins for injection molds, please provide your drawings or technical specifications.
Our engineering team will review your requirements and provide a professional quotation accordingly.
