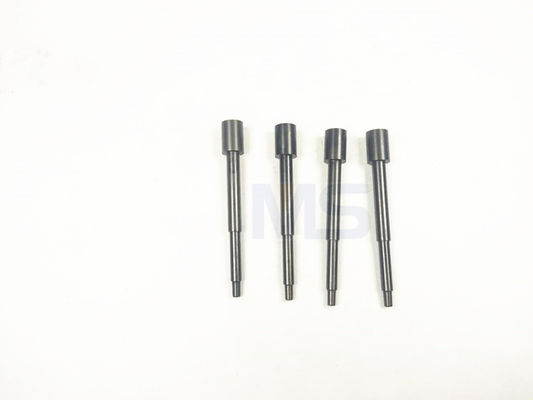

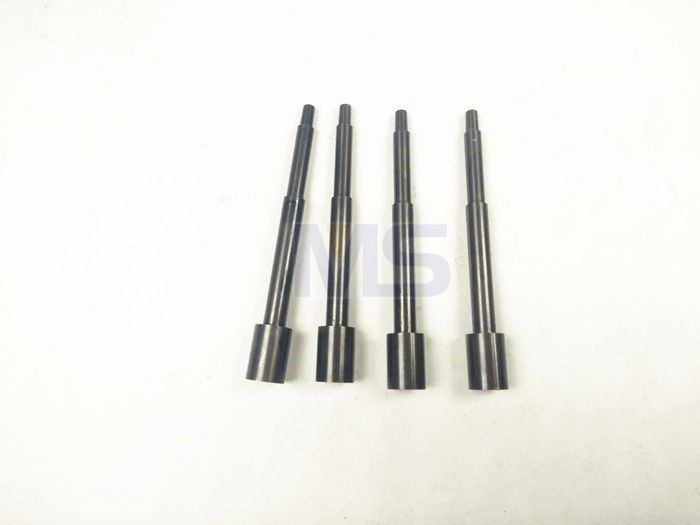

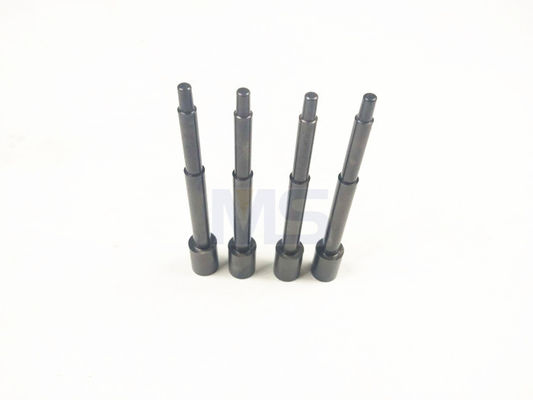

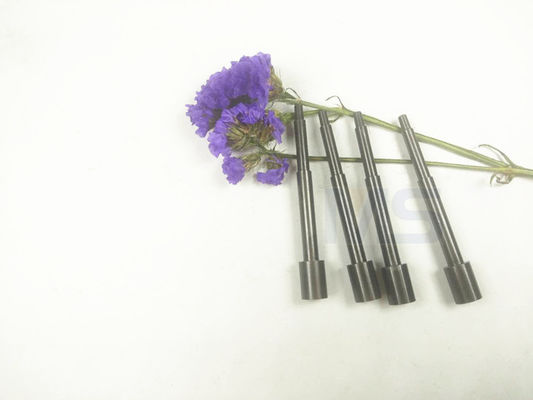

HPDC Aluminum Die Casting Mold Parts | H13/1.2344 Steel with Cooling Holes

Product Overview

Our High Pressure Aluminum Die Casting Mold Parts are designed for high-performance applications, providing superior strength, durability, and efficient production. With advanced injection molding capabilities, these parts are tailored to meet the needs of bottle cap manufacturers, medical packaging companies, and other industries that require precision mold components. Built-to-print and customized according to client specifications, ensuring reliable performance for years.

Core Features & Advantages

• High Pressure Resistance
  Engineered to withstand high pressures during injection molding cycles, ensuring long-term durability and minimal wear.

• Precision Machining
  Manufactured with tight tolerances to ensure flawless integration into complex mold systems, meeting exact requirements.

• Optimized Thermal Management
  Aluminum’s thermal conductivity ensures efficient cooling during the molding process, improving cycle times and part consistency.

• Customization & Built-to-Print
  Fully customizable according to client specifications, from material selection to dimensional tolerances and mold features.

• Corrosion-Resistant Surface Treatment
  Optional surface treatments, such as anodizing, to enhance resistance to wear and corrosion, increasing the lifespan of mold parts.

• Consistent Quality Control
  Manufactured in compliance with strict industry standards, ensuring quality and performance across all production batches.

Applications & Industry Use

These high-performance aluminum die casting mold parts are ideal for industries such as:

• Medical Packaging
  Used in the production of medical containers, syringes, and other related products.

• Packaging Industry
  Essential for creating high-precision molds for bottle caps, closures, and other plastic packaging products.

• Consumer Goods
  Applied in the production of durable plastic components for everyday consumer items.

• Precision Mold Manufacturing
  Ideal for industries that demand high accuracy and reliability in multi-cavity molds.

Mold Structure & Design Description

• Design Flexibility
  Capable of accommodating various mold designs, including multi-cavity configurations, with precise alignment for efficient production.

• Internal Cooling Channels
  Integrated cooling holes improve thermal control, reduce cycle times, and enhance overall part consistency.

• Material Properties
  Aluminum offers a balanced combination of lightweight, strength, and thermal conductivity, perfect for complex mold components.

• Surface Finish Options
  Parts can be polished, anodized, or treated for improved corrosion resistance and a longer lifespan.

Manufacturing Capability & CNC Machining

We offer advanced manufacturing capabilities including:

• CNC Milling & Turning
  Precision machining for intricate geometries, ensuring high dimensional accuracy.

• CNC EDM
  For producing complex shapes with high precision.

• Die-Cutting & Drilling
  Ensures that cooling channels, ejector pins, and other features are placed with pinpoint accuracy.

• Tight Tolerances
  We achieve tolerances up to ±0.01mm, ensuring perfect fits for all mold components.

Custom Development / OEM Process

1. Design Consultation
   We collaborate with you to understand your needs, reviewing specifications and design requirements.

2. Prototype Development
   Prototypes are created to verify the fit and function before moving to mass production.

3. Precision Manufacturing
   Utilizing advanced CNC machining and EDM processes to produce highly accurate mold components.

4. Quality Testing
   All parts undergo rigorous inspection, including dimensional checks, surface quality, and functionality tests.

5. Final Production
   Once approved, the parts are produced in bulk, ensuring consistency and quality across all units.

6. Packaging & Delivery
   We ensure secure packaging and timely delivery, adhering to your logistical requirements.

Quality Control & Export Experience

• ISO 9001 Certification
  We follow international quality standards to ensure consistent, reliable product quality.

• Inspection Reports Available
  Each batch undergoes comprehensive inspection and testing to guarantee dimensional accuracy, surface finish, and functionality.

• Global Export Experience
  Our products are used by clients worldwide, and we provide full documentation and certification for international shipping.

Related Products (Internal Links)

• Injection Molding Core Pins

• Plastic Mold Components

• Die Casting Mold Inserts

• Multi-Cavity Molds for Packaging

Frequently Asked Questions (FAQ)

Q1: Can you provide customized mold components based on our design?
Yes, we specialize in built-to-print manufacturing and can customize mold components according to your specifications.

Q2: What materials are available for die casting molds?
We offer a variety of materials, including aluminum alloys and steel, depending on your requirements for strength, thermal conductivity, and mold performance.

Q3: What is the tolerance you can achieve for mold components?
We can achieve precision tolerances of up to ±0.01mm for the highest level of accuracy in the mold components.

Q4: Do you offer surface treatment options for enhanced durability?
Yes, we offer various surface treatments, including anodizing, polishing, and nitriding, to improve corrosion resistance and wear resistance.

Request a Quote

Please provide your technical drawings and part specifications. Our team will review them and provide a detailed quote, including manufacturing and delivery times.
