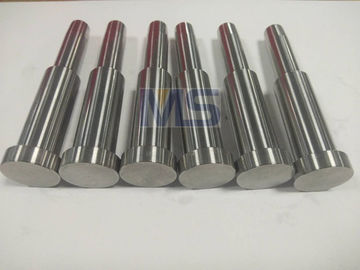

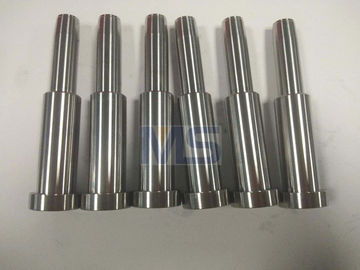

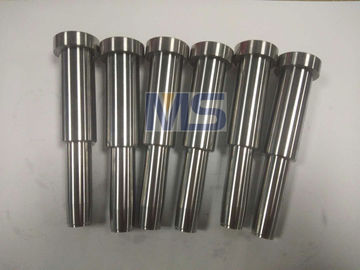

Customized DAC Material Die Punch Pin with Polished Surface and SR-Cooling Hole for Precision Molds

Customized DAC Material Die Punch Pin with Polished Surface and SR-Cooling Hole for Precision Molds
Customized DAC Material Die Punch Pin with Polished Surface and SR-Cooling Hole for Precision Molds Customized DAC Material Die Punch Pin with Polished Surface and SR-Cooling Hole for Precision Molds Customized DAC Material Die Punch Pin with Polished Surface and SR-Cooling Hole for Precision Molds

Large Image :  Customized DAC Material Die Punch Pin with Polished Surface and SR-Cooling Hole for Precision Molds

Product Details:
Place of Origin: China
Brand Name: SENLAN
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Coated with anticorrosive oil, packed in carton box
Delivery Time: 7-15 work days
Payment Terms: L/C,T/T,Western Union,D/A,D/P
Supply Ability: 2000pcs/week
Contact Now

Customized DAC Material Die Punch Pin with Polished Surface and SR-Cooling Hole for Precision Molds

Description
Material:: SKD61,DAC,1.2344 Hardness:: HRC45-50
Accuracy:: +/-0.01mm Surface Treatment:: Polished
Merits:: Long-life Application:: Die-Casting Dies
Treatment:: Heat Treatment And Nitrided Hole: L265mm SR-Cooling Hole
Highlight:

precision punch pins

,

hole punch pins

Customized Die Punch Round Coating Cooling Core Pins DAC Material Polished Surface
Customized HSS Material Die Punch Round Coating Cooling Core pins Polished Surface
Custom Manufacturing Capabilities
  • Over 10 years of experience producing custom-made core pins to world standards
  • Maximum core pin dimensions: Ø300 × L1000mm
  • Water hole sizes: Ø1, Ø1.8, Ø2, Ø2.5, Ø3, Ø3.5 (maximum length L600mm)
Product Specifications
Material DAC, SKD61, 8407, 1.2344
Hardness HRC44-46
Heat Treatment Available + Nitriding treatment
Service Made-to-order
Surface Treatment Polished
Closest Tolerance ±0.002mm
Polishness Ra0.6
Axiality 0.005mm
Verticality 0.005mm
Business Range
Manufacturing & inspection capacity in steel, stainless and copper materials for precision mould parts, cavity pins, core pins, punches, ejector sleeves, CNC machining parts, etc.
Services: CNC machining, CNC Milling, Sodick EDM, Sodick Wire-cut, OD grinding, ID grinding, Surface grinding, Thread grinding, Polishing, etc.
Industries Served: Medical, Packaging, Aerospace, Electronic
Application Fields
Automobile parts, medical equipment, daily necessities packaging, cosmetic packaging, etc.
Why Choose Us
  • Specialized manufacturer of all kinds of precision core pins, cavity pins, and insert pins
  • 8+ years of experience in stamping die parts, injection die parts, auto parts, and metal-working products
  • Advanced production equipment and experienced operators
  • Extensive experience with OEM and ODM services
  • Competitive pricing, quality assurance, and fast delivery
Business Terms
Payment Terms: T/T, PayPal, Western Union (50% deposit, balance before shipment)
Package: Coated with anti-corrosive oil, packed in carton box
Shipment Methods: DHL, TNT, FedEx available
Equipment List
Equipment Type Brand Model Precision Quantity Origin
CNC TAKISAWA NEX-108 0.002mm 4 Japan
WEDM SODICK AQ400LS 0.003mm 2 Japan
WEDM CHMER G435 0.005mm 1 Taiwan
EDM CREATOR CJ-235 0.005mm 4 Taiwan
Mirror EDM SODICK Sodick-AM30LS 0.003mm 2 Japan
Mirror EDM MAKIMO EDGE2 0.002mm 1 Japan
Desktop lathe JINGCHENG YB-15 0.05mm 4 China
Desktop lathe JINGCHENG YB-25 0.05mm 2 China
OD grinder HOTMAN FX-03 0.002mm 5 China
ID grinder HOTMAN FX-05 0.002mm 3 China
Centerless grinder HOTMAN FX-12S 0.001mm 2 China
Surface Grinder SHUGUANG 614 0.001mm 4 China
Surface Grinder SHUGUANG 618 0.001mm 2 China
EDM drilling ZENBANG ZB-03 0.01mm 1 Taiwan
Miller TOPINR AVA 0.01mm 2 China
Quality Assurance
We can produce Ø3×L=600mm holes with excellent finish and concentricity using SR-drill technology. All gun-drilled holes are inspected using an endoscope to verify internal finish quality. Minimum hole size: Ø2mm.
Customized DAC Material Die Punch Pin with Polished Surface and SR-Cooling Hole for Precision Molds 0 Customized DAC Material Die Punch Pin with Polished Surface and SR-Cooling Hole for Precision Molds 1
Ordering Process
  1. Send us your drawing or standard code & size
  2. We provide quotation within 1 day
  3. Agree on pricing and sign PO or Contract
  4. Make advance payment
  5. Production begins after order confirmation
  6. Balance payment before shipment
Our Services
  • Customer-focused approach with customized solutions
  • Quick sample delivery and production according to your BOM
  • Professional production team with strict quality control
  • One-stop solutions for long-term customers
  • Customized sizes and OEM/ODM services available
  • 100% inspection before delivery with quality warranty
  • Competitive pricing, excellent service, and quick delivery
Should you have any interest in our products, please feel free to contact us!
