SKD61 Hot Work Die Steel Collapsible Mould Parts Slide Core Unit
Precision-engineered slide core units manufactured from SKD61 hot work die steel, designed for demanding mold applications with spherical guide brushing functionality.
Product Specifications
| Product Name |
Slide core units |
| Material |
SKD61 |
| Hardness |
58-60 HRC or dependent on material requirements |
| Surface Finish |
Ra0.6 |
| Tolerance |
±0.002mm |
| Surface Treatment |
TiCN, TiN, Aitain, Ticrn, nitriding, black oxygen, black coating, and other options available |
| Origin |
China (mainland) |
| Customization |
Custom sizes available |
| Quality Control |
100% inspection before shipment |
| Service |
Made-to-order manufacturing |
Product Range & Business Scope
Mold Components Portfolio
- Guide Pin & Bushes: Guide pins, guide bushes, angle guide pins, steel ball guide bushes
- Gate Series: Sprue bushes, locating rings, cashew gate inserts, runner lock pins, runner lock pin bushes
- Date Stamps & Air Valves: Date inserts, air valves, air spigots
- Latch Lock Series: Parting lock screws, tension links, latch locks
- Slide Retainers Series: Slide retainer series, slide retainers
- Ejector Series: Two-stage ejectors, ejector institutions, accelerated ejectors, round latch locks, core pins, slide units, wear plates, slide core units, sprung cores, collapsible cores
- Locating Series: Square interlocks, round locating units
- Guide Strips & Plates: Guide strips, guide rails, wear plates, inclined wedge active blocks
- Mold Accessories: Mold counters, limit switches, tool safety devices, shoulder bolts, stop pins, support pillars, secreating washers
Why Choose Our Products
- Comprehensive one-stop service solution
- Competitive pricing structure
- Specialized corporate culture focused on quality
- Excellent quality control systems
- Custom requirements fulfillment
- Extensive experience in mold industry with diverse product range
- Outstanding merchandise with considerate customer service
Company Overview
Founded in 2012, Senlan Precision Mould provides global JIS, DIN, AISI and other standard mold parts, specialized custom-built mold components, and comprehensive solutions for global plastic mold and die casting mold applications. As a manufacturing factory, we supply global standard mold parts including Ejector Series (pins, sleeves, two-stage ejector pins), Slide Core Units, Latch locks, Locating Series, Date Stamps, Slide Retainers, Cooling Series, and mold counters.
With over 15 years of industry experience, 6 manufacturing plants, and a strong professional team, we possess deep insight into customer requirements and the capability to serve your mold component needs effectively.
Manufacturing Equipment & Precision
| Equipment Type |
Brand |
Model |
Precision |
Quantity |
Origin |
| CNC |
TAKISAWA |
NEX-108 |
0.002mm |
4 |
Japan |
| WEDM |
SODICK |
AQ400LS |
0.003mm |
2 |
Japan |
| CHMER |
G435 |
|
0.005mm |
1 |
Taiwan |
| EDM |
CREATOR |
CJ-235 |
0.005mm |
4 |
Taiwan |
| Mirror EDM |
SODICK |
AM30LS |
0.003mm |
2 |
Japan |
| MAKIMO |
EDGE2 |
|
0.002mm |
1 |
Japan |
| Desktop lathe |
JINGCHENG |
YB-15/YB-25 |
0.05mm |
6 |
China |
| OD grinder |
HOTMAN |
FX-03 |
0.002mm |
5 |
China |
| ID grinder |
HOTMAN |
FX-05 |
0.002mm |
3 |
China |
| Centerless grinder |
HOTMAN |
FX-12S |
0.001mm |
2 |
China |
| Surface Grinder |
SHUGUANG |
614/618 |
0.001mm |
6 |
China |
| EDM drilling |
ZENBANG |
ZB-03 |
0.01mm |
1 |
Taiwan |
| Miller |
TOPINR |
AVA |
0.01mm |
2 |
Taiwan |
Packaging & Shipping
Packaging
Outer packaging: Cartons with foam packing or wooden boxes
Inner packaging: Components packed in sponge with plastic bag protection
Payment Terms
T/T, PayPal, Western Union - 50% deposit, balance before shipment
Shipping Methods
DHL, TNT, FedEx available for air freight; Sea freight options also available

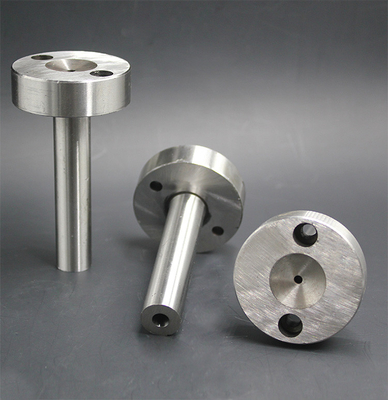

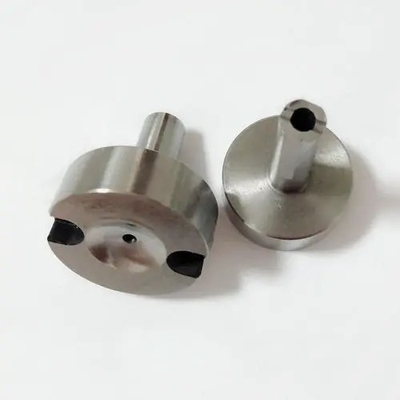

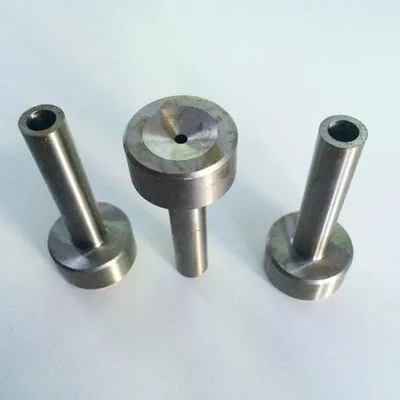

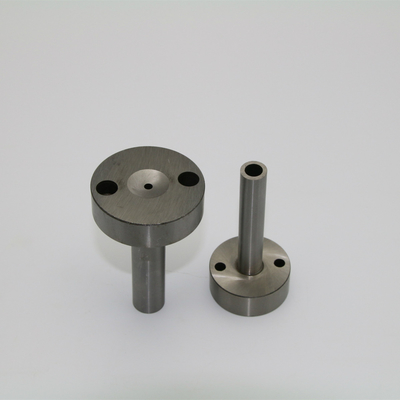

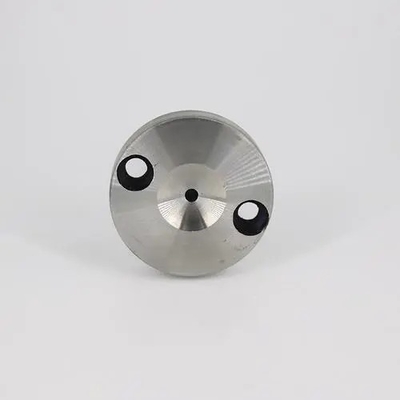

Product Visualization
Frequently Asked Questions
Where Is Your Factory Located? How Can I Visit There?
Our factory is located at NO.27, ShangLang Road, XiaBian District, Chang'an town, Dongguan China. All clients from home or abroad are warmly welcomed to visit us at any time.
When Can I Get The Quotation Or The Reply On Your Side?
We typically respond within 4 hours after receiving your inquiry. For urgent requests, please notify us for priority handling.
Do You Provide Free Samples?
Yes, we can provide free samples with freight costs collected by the customer.
How Can You Ensure The Quality Of The Parts That We Ordered?
We implement pre-testing before each manufacturing step and conduct final inspection of all parts before shipment. Our strict quality control system ensures high-quality components.
What Will You Do After Sales?
We provide comprehensive after-sales service. After product delivery, we follow up for feedback. Our experienced engineers are available to address any product-related questions.
