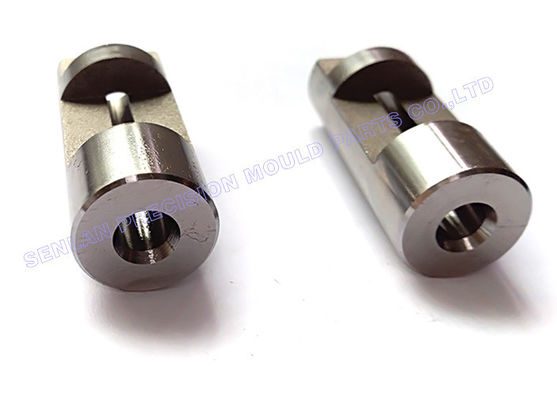

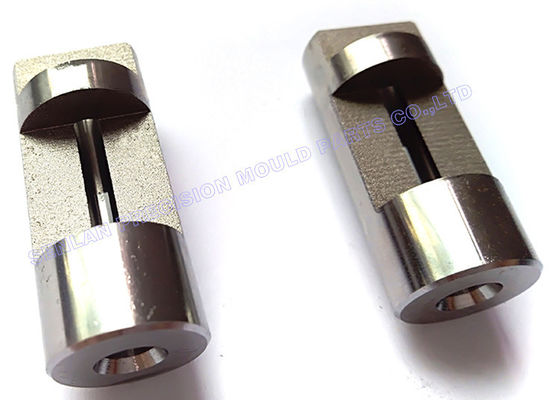

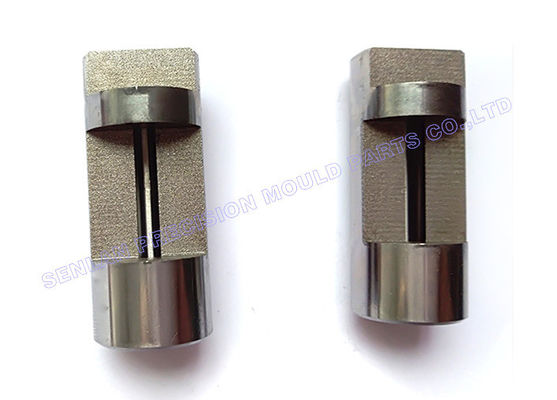

Custom SKH51 Slide Retainers | Precision Locating Blocks for Plastic Molds

Product Overview

Senlan Precision manufactures non-standard locating blocks and slide retainers made from SKH51 tool steel for plastic injection moulds. These components are engineered for precise positioning, slide guidance, and long-term stability in complex mould structures. All parts are produced strictly under OEM / Built-to-Print requirements, based on customer drawings and assembly specifications.

Key Features & Technical Advantages

• Manufactured from SKH51 high-speed tool steel

• High hardness and wear resistance for sliding and locating functions

• Excellent dimensional stability under repeated mould operation

• Precision-machined locating surfaces for accurate slide positioning

• Suitable for high-cycle and multi-cavity mould structures

• Fully customized geometry, no standard catalogue parts

Application Scenarios / Industry Applications

• Multi-cavity plastic injection moulds

• Bottle cap and closure mould slide systems

• Packaging moulds with side actions or complex movements

• Medical plastic moulds requiring stable and repeatable positioning

• Precision mould assemblies for daily packaging products

Mold Structure & Design Description

Locating blocks and slide retainers are key structural elements that control slide movement, alignment, and repeatability within injection moulds. SKH51 material is selected for its superior wear resistance and strength, making it suitable for high-load sliding interfaces. Precision machining ensures accurate positioning, reduced friction variation, and reliable mould operation over long production cycles.

Manufacturing Capability & CNC Machining Capacity

Senlan Precision operates advanced machining equipment to meet tight tolerance requirements:

• MAKINO high-precision CNC milling centers (Japan)

• HARDINGE CNC lathes (USA)

• CNC milling, drilling, surface grinding, and profile grinding

• Controlled heat treatment coordination for SKH51 steel

Typical machining tolerances can reach ±0.002–0.005 mm, depending on component geometry.

Custom Development / OEM Cooperation Process

1. Customer drawing and technical requirement review

2. Material confirmation (SKH51 or approved alternatives)

3. Machining process planning and tolerance definition

4. CNC machining, grinding, and fitting inspection

5. Final quality inspection, packing, and export delivery

All components are manufactured strictly following Built-to-Print OEM workflows.

Quality Control & Export Experience

• Incoming material verification and traceability

• In-process dimensional inspections on critical locating features

• Final inspection for flatness, parallelism, and fit

• Quality systems aligned with medical and packaging mould standards

• Extensive export experience supporting global mould manufacturers

Related Products Recommendation

• Precision mould slide blocks and guide components

• Core inserts and cavity inserts for injection moulds

• Wear plates and slide rails

• Non-standard mould structural components

FAQ – Technical & Procurement

Q1: Are these locating blocks available in standard sizes?
No. All locating blocks and slide retainers are custom-manufactured according to drawings.

Q2: Why is SKH51 used for slide retainers?
SKH51 provides high hardness, wear resistance, and stability for sliding and locating applications.

Q3: Can alternative materials be specified?
Yes. Material options can be adjusted based on mould design and operating conditions.

Q4: Are these parts suitable for multi-cavity moulds?
Yes. They are commonly used in multi-cavity and high-cycle mould systems.

Q5: Do you support small batch or prototype orders?
Yes. Prototype, small batch, and production orders are all supported.

Get a Quote

For pricing, lead time, or technical evaluation of SKH51 non-standard locating blocks and slide retainers, please contact Senlan Precision with your drawings. Our engineering team will provide a detailed quotation and manufacturability feedback.
