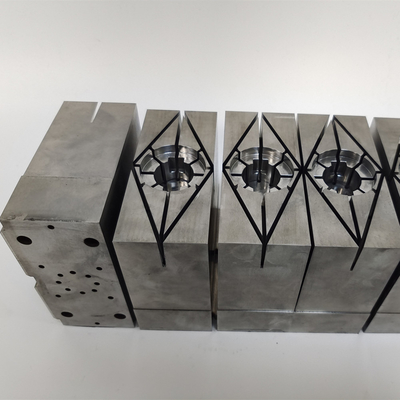

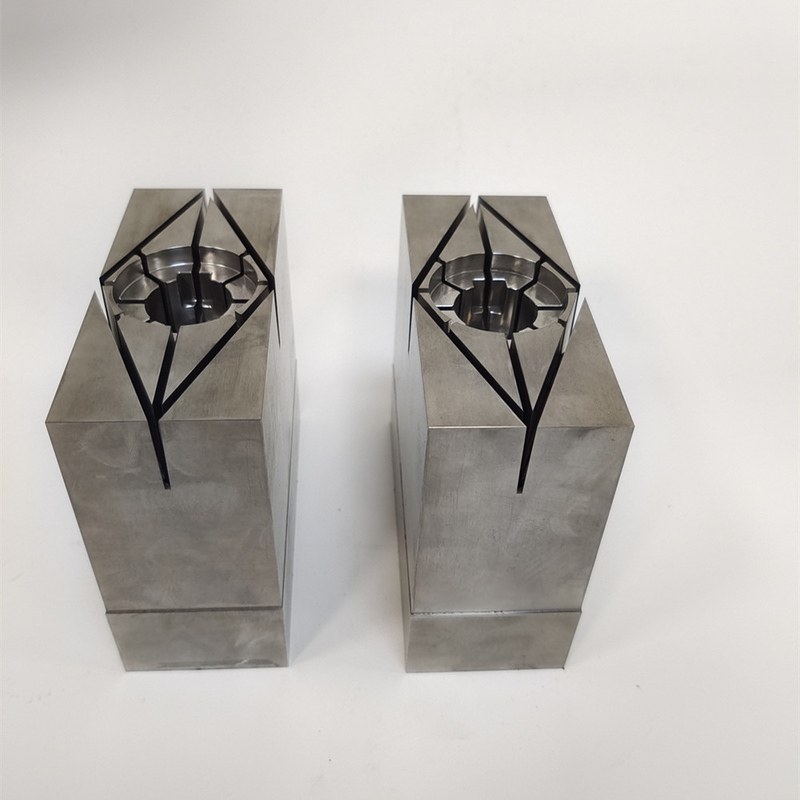

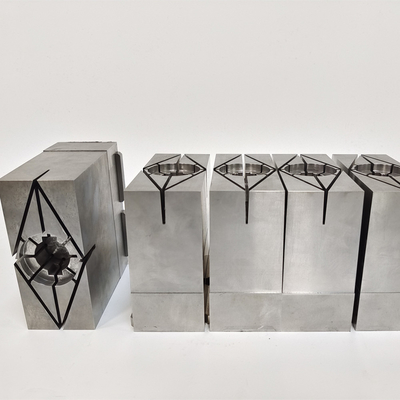

Plastic Mould Square Interlock Coated With DCL Locating Block For Die Component

Plastic Mould Square Interlock Coated With DCL Locating Block For Die Component
Plastic Mould Square Interlock Coated With DCL Locating Block For Die Component Plastic Mould Square Interlock Coated With DCL Locating Block For Die Component Plastic Mould Square Interlock Coated With DCL Locating Block For Die Component

Large Image :  Plastic Mould Square Interlock Coated With DCL Locating Block For Die Component

Product Details:
Place of Origin: China
Brand Name: SENLAN
Certification: ISO9001
Model Number: BGS
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Coated with anticorrosive oil, packed in carton box
Delivery Time: 10days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 2000pcs/week
Contact Now

Plastic Mould Square Interlock Coated With DCL Locating Block For Die Component

Description
Material: 1.2379 Heat Treatment: High Frequency
Specification: 55-58HRC Closest Tolerance: + - 0.002mm
Dimensions:: Can Be Customized Surface Finished:: No/as Machined
Stardard: DME,HASCO,MISUMI Mould:: Plastic Mould
Highlight:

location block

,

tapered locating pins

Plastic Mould Square Interlock Coated With DCL Locating Block For Die Component
Mould locating block, also known as block locking or square locating block, is designed for chain, auxiliary, and fine positioning applications. Installed on the side surface of the mold, it offers easy loading and unloading with conveniently machined mounting holes on the template. Ideal for connectors, electronic components, and other precision positioning requirements.
Important Note
Maintain minimal spacers clearance to prevent clamping collisions. Must be used with precision guide pillars and square-shaped spacers. Ensure minimal clearance between punch and block during processing and arrangement.
Product Specifications
Product Name Locator Block
Material SKD11, SK2, YK30, 55# Steel etc.
Hardness HRC58-60
Customization OEM Available
Size Special sizes can be customized
Ordering Process
  1. Send drawing or standard code & size
  2. Receive quote within 1 business day
  3. Agree on price and sign PO or Contract
  4. Make advance payment
  5. Samples available (free sample, freight collect)
Our Advantages
  • Consistent Quality Control: Experienced staff ensures exact dimensions and thorough inspection
  • Quick Delivery: Typically 6 days depending on order quantity
  • Made-to-Order Service: Custom parts beyond standard HASCO, MISUMI, DME specifications
  • Excellent Customer Support: Comprehensive before, during, and after-sales service
  • Competitive Pricing: Reasonably calculated prices to support customer competitiveness
Quality Assurance
Testing Equipment Digital Height Gauge, Caliper, CMM, Projection Machine, Roughness Tester, Hardness Tester
Quality Control Process
  • Technician self-check during production
  • Engineer spot checks
  • QC inspection after mass production
  • Technical sales check before shipping
Main Markets North America, South America, Europe, Asia, Africa
Delivery & Payment
Payment Terms T/T, PayPal, Western Union (50% deposit, balance before shipment)
Shipping Methods DHL, TNT, FedEx
Outer Packaging Cartons with foam or wooden boxes
Inner Packaging Sponge with plastic bag
Delivery Options Air or Sea freight
Service Guidelines
Most products are customized according to customer drawings or designs. Please provide your specifications for production feasibility assessment and accurate pricing.
Product Image
Plastic Mould Square Interlock Coated With DCL Locating Block For Die Component 0
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are a factory.
Q: Do you supply customized service?
A: Yes, we provide customized services including quantity and LOGO printing.
Q: Are the pictures the same as real products?
A: Yes, but pictures show samples only. Contact us for specific size requirements.
Q: Do you provide samples?
A: Yes, samples are available.
Q: How about the price range?
A: Pricing depends on raw materials, exchange rates, and quality specifications. Contact us for current pricing.
