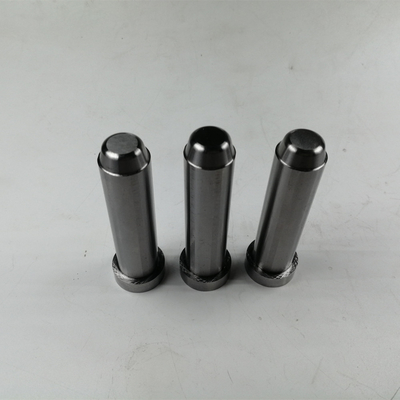

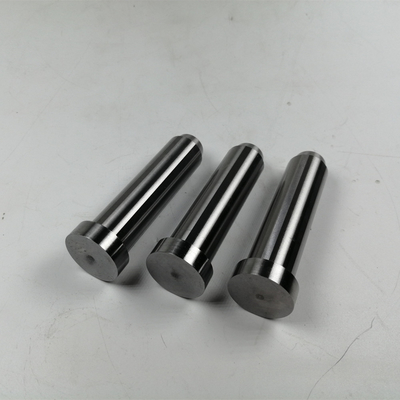

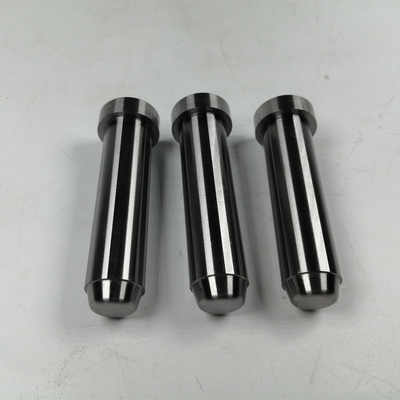

Professional DIN Replaceable Mold Core Inserts with Chamfer for Plastic Injection Mould
Product Specifications
| Product Name |
Replaceable Date Stamp |
| Raw Material |
SUS420 |
| Heat Treatment |
Hardening |
| Hardness |
HRC48-54 |
Related Products
Guide Pin & Bushes: Guide pin; Guide bush; Angle guide pin; Steel ball guide bush
Gate Series: Sprue bush; Locating ring; Cashew gate insert; Runner lock pin; Runner lock pin bush
Date Stamps & Air Valves: Date insert; Air valve; Air spigot
Latch Lock Series: Parting lock screws; Tension link; Latch lock
Slide Retainers Series: Slide retainer series; Slide retainer
Ejector Series: Two-stage ejector; Ejector institutions; Accelerated ejector; Round latch locks; Core pin; Slide units; Wear plate; Slide core units; Sprung core; Collapsible core
Locating Series: Square interlock; Round locating units
Guide Strips & Plate: Guide strips; Guide rail; Wear plate; Inclined wedge active block; Guide strips
Mold Accessories: Mold counter; Limit switch; Tool safety devices; Shoulder bolt; Stop pin; Support pillar; Secreating washer
Company Profile
Founded in March 2012, we specialize in manufacturing precision mould parts and CNC precision machining parts. Our temperature-controlled workshop employs approximately 40 skilled operators. Design software capabilities include AutoCAD 2008/2014/2017, UG NX8.0, Solidwork 2012, and Pro Engineer Wildfire 4.0.
Business Scope
Manufacturing & Inspection Capacity: Steel, stainless and copper materials for precision mould parts, cavity pins, core pins, punches, ejector sleeves, and more.
Services: CNC machining, EDM, Wire-cut, OD grinding, ID grinding, Surface grinding, Thread grinding, Polishing
Industries Served: Medical, Packaging, Aerospace, Electronics
Delivery, Payment & Packaging
Payment Terms: T/T, Paypal, Western Union - 50% deposit, balance before shipment available
Shipment: DHL, TNT, Fedex available
Outer Packing: Cartons with foam packing or wooden box
Inner Packing: Sponge with plastic bag
Delivery: By air or by sea
How To Order
- Send us drawing or standard code & size
- We will quote you within 4 hours
- Get agreement with price and sign PO or Contract
- Make payment in advance
- If sample required, we will make sample first
Frequently Asked Questions
Q1: Where Is Your Factory Located? How Can I Visit There?
A: Our factory is located in NO.27, ShangLang Road, XiaBian District, Chang'an town, Dongguan China. All our clients from home or abroad are warmly welcomed to visit us at any time.
Q2: When Can I Get The Quotation Or The Reply On Your Side?
A: The swift response will usually be taken within 4 hours after we got your inquiry or email. If you are very urgent, please let us know so that we will regard your inquiry priority.
Q3: Do You Provide Free Sample?
A: Yes, we could offer some samples for free, but freight collect.
Q4: How Can You Ensure The Quality Of The Parts That We Ordered?
A: Firstly, pre-testing will be done before every step. Secondly, we'll have final checking for all parts before shipment. A strict quality control system ensures high quality parts.
Q5: What Will You Do After Sales?
A: We provide after-sales service. When you receive our products, we will follow up and await your feedback. Any questions related to our products will be addressed by our experienced engineers.
