Customized High Accuracy SKD61 Sprue Bushing For Plastic Injection Moulds

Good quality Plastic Mould Parts for sales
Thank you for doing such good quanlity work,and you can expect more orders from me in the future

—— Fernando

We have cooperated with senlan for many years and they always can provide good quality of mold parts and service

—— Amir Choroo

I received my package today and i'm happy with the pins you've done,they seems pefect,thank you.

—— Peter

I'm Online Chat Now

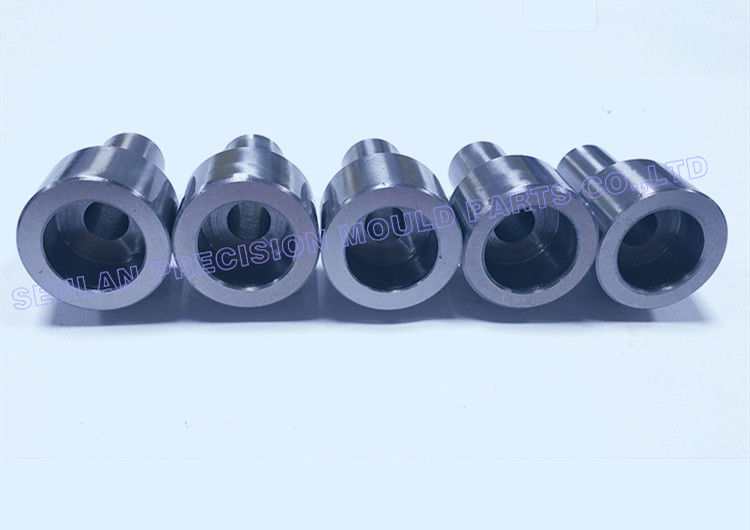

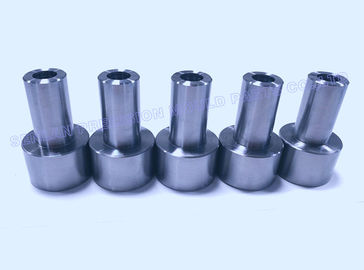

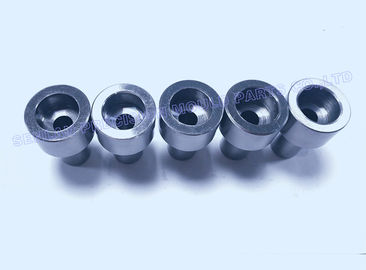

Customized High Accuracy SKD61 Sprue Bushing For Plastic Injection Moulds

China Customized High Accuracy SKD61 Sprue Bushing For Plastic Injection Moulds supplier
Customized High Accuracy SKD61 Sprue Bushing For Plastic Injection Moulds supplier Customized High Accuracy SKD61 Sprue Bushing For Plastic Injection Moulds supplier Customized High Accuracy SKD61 Sprue Bushing For Plastic Injection Moulds supplier

Large Image :  Customized High Accuracy SKD61 Sprue Bushing For Plastic Injection Moulds

Product Details:

Place of Origin: China
Brand Name: SENLAN
Certification: ISO9001
Model Number: SL-006

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: 1-100USD
Packaging Details: Coated with anticorrosive oil, packed in carton box
Delivery Time: 7-15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 2000pcs/week
Contact Now
Detailed Product Description
Parts Name: Sprue Bushing Material: SKD61
Hardness: 48-52HRC Application: Plastic Injection Mould
Tolerance: +/-0.01mm Heat Treatment: Vaccum

Customized High Precision SKD61 Sprue Bushing For Plastic Injection Moulds



Sprue bush can also be described as a flow path component that allows molten plastic material to be injected from the nozzle of the injection molding machine into the interior of the mold.The bolt-type nozzle is a nozzle that is fixed by two bolts and is fixed by bolts to prevent the nozzle from falling off due to the injection pressure.



The sprue bushing is often used as the grab point in robotic removal of parts, sprues and runners. This requires that the sprue be rigid enough to resist the pressure of the robot fingers as well as the extraction forces. With conventional steel sprues this measure is most often met by added cooling time to the mold cycle. Senlna will again reduce the sprue cool time, without any other changes to the mold. Use of this product will yield more rigid sprues with reduced cool times set on the molding machine timer.



The sprue bushing fits into the locating ring. The end is connected to either an opening in the main runner or directly to the mold cavity, depending on the setup. The sprue bushing directs the plastic through the runners, past the gate, and into the mold cavity, or directly into the cavity.Before you place the sprue bushing, identify the mold base. The two placement methods are Linear and From Runner Sketch. The Linear option positions the sprue bushing relative to two linear edges. The From Runner Sketch option positions the sprue bushing based on the end point or a point on the runner sketch geometry.



Feature

Material Inner Hardness Surface Hardness Heat Treatment
S45C HRC50~55 HRC50~55 Partial
SKD11 HRC58~62 HRC58~62 Vacuumed
SKD61 HRC34~38 HV900~1100 Nitrided
HRC50~54 HRC50~54 Vacuumed


Production way

OD Grinding,ID Grinding, CNC Milling, CNC turning,Wire cutting, EDM,Drilling, etc.


Manufacturing Equipments

CNC Lathe, Desktop Lathe, CNC Milling, W/EDM, OD Grinder, ID Grinder, Surface Grinder, Centeless Grinder, EDM Drilling


Inspection Equipments
CMM,  Altimeter, Projector, Height Guage, Calipers, Hardness Tester, Micrometer,etc.


Lead Time
7-20 days, depending on order quantity


Drawing Format
PDF/DWG/DXF/IGS/STEP,etc


Packaging
Inner packing with recycle plastic box and anticorrosive oil, outer with sponge and PE bags, or as customer's requirements.


Application field
Parts are used on medical, cosmetic packaging, daily necessities packaging etc.



Our advantages
(1). Competitive price with good quality
(2). Low MOQ (10pcs is kindly accepted in some special conditions)
(3). Customized size and OEM available
(4). Precise tolerance: +/-0.002mm
(5). 100% inspection



Main products

  • Core pin,cavity pin,insert pin etc
  • HSS punch ,Precision punch ,Special-shaped punch
  • ejector pins,ejector sleeve,two-stage ejector pins etc
  • Guide pillars ,Guide bushings ,Guide post set
  • Slide Core Units,Latch locks,locating Series

Customized High Accuracy SKD61 Sprue Bushing For Plastic Injection Moulds
