Medical Grade Precision Core Pins | 64 Cavity Mold Inserts for Consumables

Product Overview

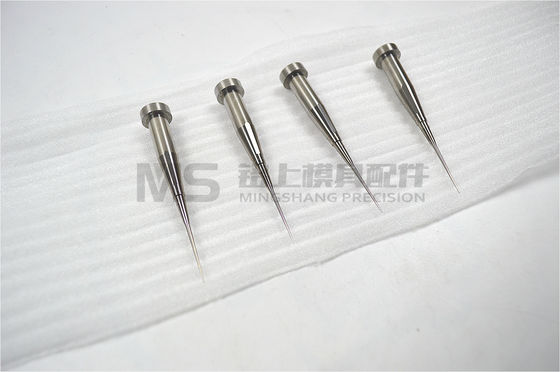

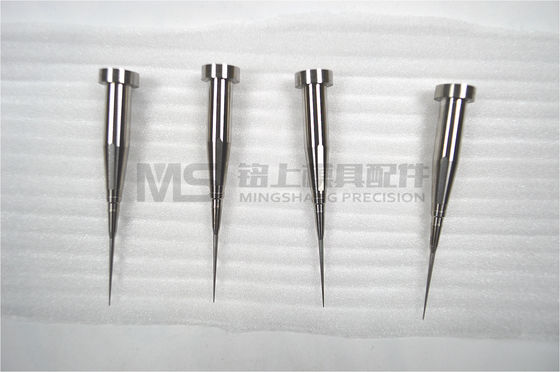

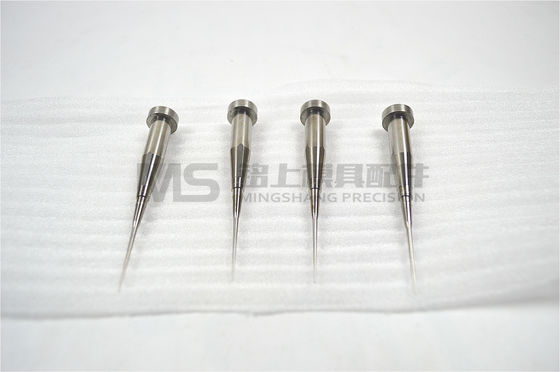

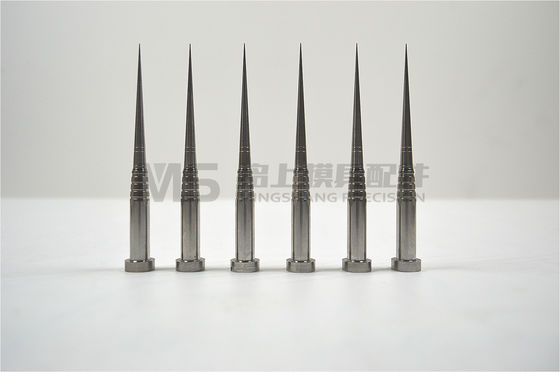

Precision insert mold core pins are critical components used in high-cavity injection moulds for medical consumables. Designed specifically for 64-cavity mould systems, these core pins ensure consistent dimensional accuracy, stable mould performance, and repeatable production quality. All core pins are manufactured strictly according to customer drawings, meeting the stringent requirements of medical injection moulding.

Key Features & Technical Advantages

• Designed for high-density 64 cavity injection moulds

• Tight dimensional tolerance for consistent cavity balance

• High wear resistance for long production cycles

• Stable concentricity and straightness control

• Suitable for precision medical consumables moulding

• Fully customized sizes, geometries, and tolerances

• Built-to-Print manufacturing based on customer drawings

Applications & Industry Use

• Medical consumables injection moulds

• Disposable medical product mould tooling

• High-cavity mould systems for medical-grade plastic parts

• Precision moulds requiring strict dimensional repeatability

• Clean and controlled moulding environments

Mould Structure & Design Description

In 64-cavity mould systems, core pins play a decisive role in:

• Defining internal geometries of molded medical components

• Maintaining cavity-to-cavity consistency

• Supporting balanced filling and stable mould operation

• Reducing flash, deformation, and dimensional deviation

The core pins are designed with precise alignment features and optimized profiles to ensure reliable integration into complex multi-cavity mould structures.

Manufacturing Capability & CNC Machining Capacity

• Precision CNC turning and milling

• High-accuracy grinding for critical functional surfaces

• Controlled tolerance capability: up to ±0.005 mm on request

• Material options suitable for medical mould tooling

• Surface treatment and finishing based on mould requirements

• Stable production capacity for batch consistency

Custom Development & OEM Cooperation Process

1. Customer drawing and technical requirement review

2. Engineering evaluation for manufacturability

3. Process planning for multi-cavity mould compatibility

4. Sample or pilot production if required

5. Full production with controlled quality inspection

We support OEM / ODM / Built-to-Print cooperation for long-term mould component supply.

Quality Control & Export Experience

• Incoming material inspection

• In-process dimensional checks

• Final inspection using precision measuring equipment

• Traceable quality records for each production batch

• Experience supplying mould components for overseas medical mould projects

Related Products (Internal Links)

• Medical Injection Mold Inserts

• Multi-Cavity Mold Core Components

• Precision Mold Insert Pins

• High-Cavity Injection Mold Parts

Frequently Asked Questions (FAQ)

Q1: Are these core pins suitable specifically for 64 cavity moulds?
Yes. They are designed for high-cavity mould systems where cavity consistency is critical.

Q2: Do you manufacture strictly according to drawings?
Yes. All production follows customer-provided drawings or approved technical documents.

Q3: What tolerances can be achieved?
Standard tolerances are ±0.01 mm, with tighter tolerances available based on design and material.

Q4: Can you support replacement core pins for existing moulds?
Yes. We can manufacture replacement pins based on drawings or measured samples.

Get a Quote

If you are sourcing precision insert mold core pins for medical consumables injection moulds, please send us your drawings or technical specifications.
Our engineering team will provide a technical review and quotation promptly.
