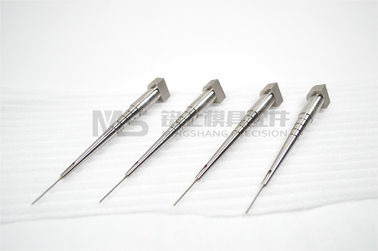

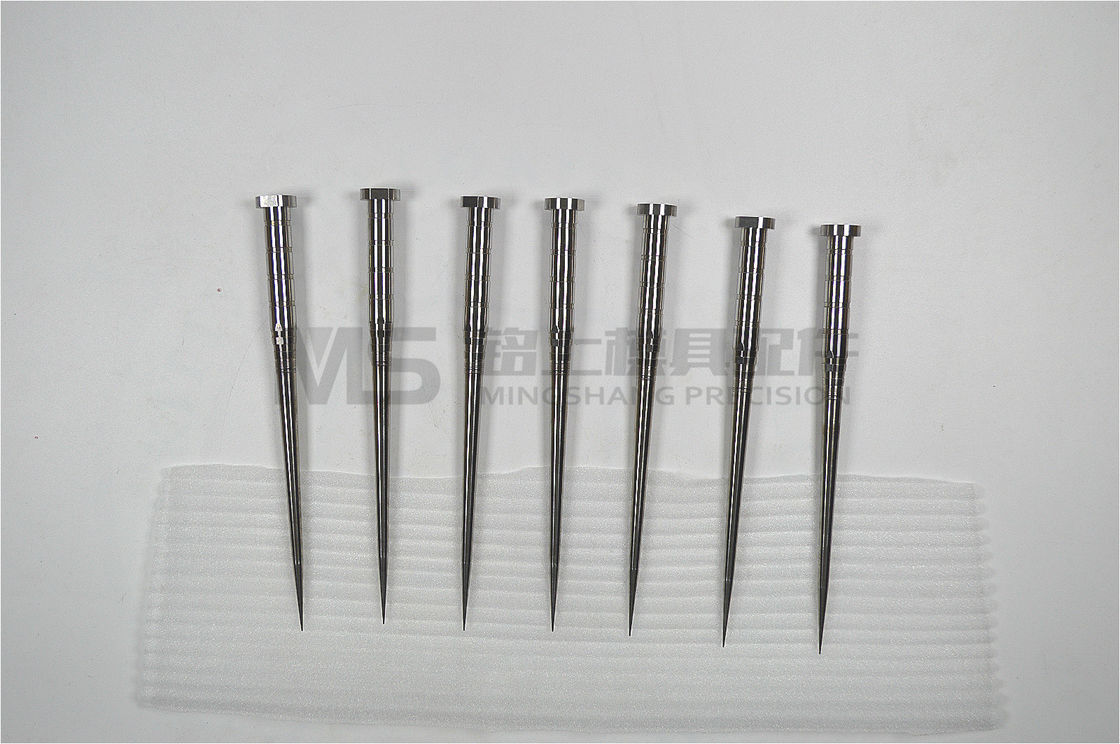

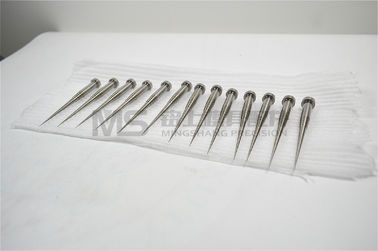

Customized Precision Mould Parts Mold Core Pins For Medical Consumables Mold
Material
SKD61/DAC/8407/S136/SUS420/STAVAX and more..
Hardness
48-52 HRC or depends on processing materials
Specification
- Size tolerance within +/-0.002mm
- Axiality within 0.005mm
- Surface Roughness within Ra0.6
- Verticality within 0.005mm
- The multi-cavity is well-matched
- Further dimensions,lengths and materials available on request
Machinery & Equipments
- CNC machining center; CNC milling machine ,CNC lathe machine
- Sodick EDM,Sodick Wire-cutting
- OD Grinding,ID Grinding,Surface grinding machine
Why choose us
- We as a manufacturer are specialized in all kinds of precsion core pins cavity pins insert pins
- Good experience of 8 years to make Stamping die parts,Injection die parts,Auto parts, metal-working products.
- Have advanced production equipments and experienced operators.
- Good experience of OEM and ODM for our customers.
- Provide best price, good quality and on-time delivery.
Equipment List:
| CNC |
TAKISAWA |
NEX-108 |
0.002mm |
4 |
Japan |
| WEDM |
SODICK |
AQ400LS |
0.003mm |
2 |
Japan |
| CHMER |
G435 |
0.005mm |
1 |
Taiwan |
| EDM |
CREATOR |
CJ-235 |
0.005mm |
4 |
Taiwan |
| Mirror EDM |
SODICK |
Sodick-AM30LS |
0.003mm |
2 |
Japan |
| MAKIMO |
EDGE2 |
0.002mm |
1 |
Japan |
| Desktop lathe |
JINGCHENG |
YB-15 |
0.05mm |
4 |
China |
| YB-25 |
0.05mm |
2 |
| OD grinder |
HOTMAN |
FX-03 |
0.002mm |
5 |
China |
| ID grinder |
HOTMAN |
FX-05 |
0.002mm |
3 |
| Centeless grinder |
HOTMAN |
FX-12S |
0.001mm |
2 |
China |
| Surface Grinder |
SHUGUANG |
614 |
0.001mm |
4 |
China |
| 618 |
0.001mm |
2 |
| EDM drilling |
ZENBANG |
ZB-03 |
0.01mm |
1 |
Taiwan |
| Miller |
TOPINR |
AVA |
0.01mm |
2 |
Taiwan |
Payment Terms
Payment terms: T/T,Paypal,Western Union,50% deposit,balance before shipment is available
Shipment: DHL,TNT,Fedex are available
Packing Information
Safe export package: plastic bag+sponge+ cartons with foam packing
How to order:
(1) Send us drawing or standard code & size
(2) We will quote you within 4 hours
(3) Get agreement with price and sign PO or Contract
(4) Make payment in advance
(5)If sample required,we will make sample first
FQA:
(1) Q:Where is your factory located? How can I vist there?
A:Our factory is located in NO.27,ShangLang Road,XiaBian District,Chang'an town, Dongguan China
All our clients from home or abroad are warmly welcomed to visit us at any time.
(2)Q:When can i get the quotation or the reply on your side?
A: The swift response will usually be taken within 4 hours after we got your inquiry or email.If you are very urgent,please let us know so that we will regard your inquiry priority
(3) Q:Do you provide free sample?
A:Yes,we could offer some samples for free, but freight collect.
(4)Q: How can you ensure the quality of the parts that we ordered?
A: Firstly,the pre-testing will be done before every step,secondly,we'll have the final checking for all the parts before the shipment,So believe that a strict quality control system will ensure you the high quality parts.
(5) Q:What will you do after sales?
A:We have after-sales servise, when you received our products,we will follow up and await your feedback.
Any question related to our products,our experienced engineers are ready to help.
If you are interested, please do not hesitate to contact with us! Thank you!
