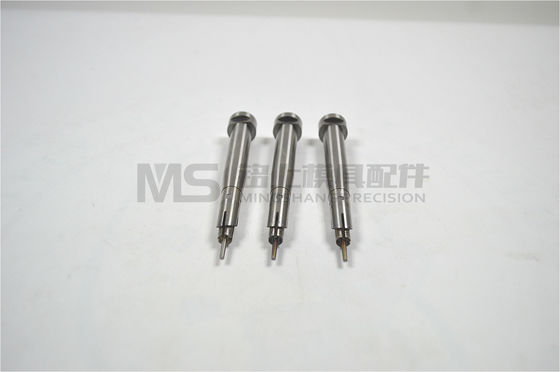

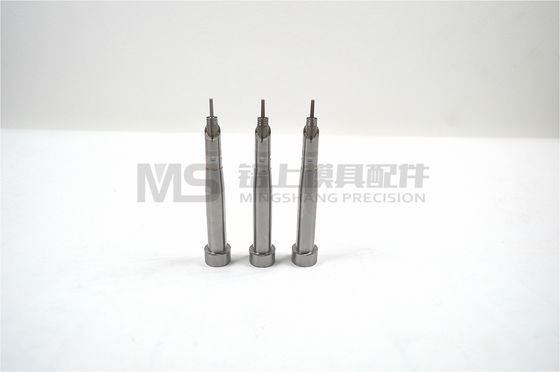

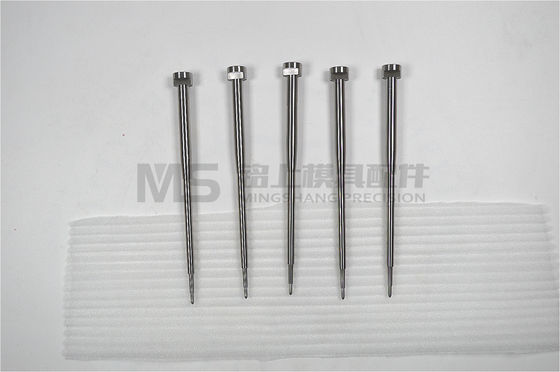

OEM Precision Core Pins | Injection Molding Components with Inspection Report

Product Overview

OEM precision core pins are critical injection molding components used to form internal geometries and functional details in plastic moulds. Manufactured through high-accuracy CNC machining and controlled finishing processes, these core pins are supplied strictly on a Built-to-Print basis. Complete dimensional and material inspection reports are available to support quality validation and international procurement requirements.

Key Features & Technical Advantages

• OEM and Built-to-Print manufacturing only

• High dimensional accuracy and repeatability

• Stable performance in high-cycle injection moulding

• Multiple material options based on mould requirements

• Precision CNC machining and fine grinding processes

• Optional surface treatments for wear and service life optimization

• Full inspection report available upon request

Applications & Industry Use

• Bottle cap and closure injection moulds

• Packaging container and thin-wall mould systems

• Medical consumables and disposable product moulds

• Multi-cavity moulds requiring consistent core performance

• Precision moulds for daily-use and hygiene products

Mould Structure & Design Description

Core pins are functional mould elements that define holes, cavities, and internal product features. Their performance directly affects:

• Product dimensional accuracy

• Mould stability during repeated cycles

• Service life of the mould assembly

Design considerations include fit tolerance, concentricity, surface finish, and thermal stability, all customized according to customer drawings and mould structure.

Manufacturing Capability & CNC Machining Capacity

• CNC turning and milling for complex core geometries

• Precision grinding for diameter, roundness, and straightness

• Heat treatment control based on material specification

• Surface finishing to reduce friction and wear

• In-process and final dimensional inspection

• Flexible capacity for prototype and batch production

Custom Development & OEM Cooperation Process

1. Drawing or sample review

2. Material and tolerance confirmation

3. Machining and process planning

4. Sample production and inspection (if required)

5. Mass production with inspection documentation

We focus exclusively on OEM cooperation and custom mould components, ensuring strict compliance with customer specifications.

Quality Control & Export Experience

• Raw material verification

• In-process quality checks

• Dimensional measurement using calibrated instruments

• Hardness and surface condition inspection (when applicable)

• Inspection reports provided for export and customer records

Related Products (Internal Links)

• Precision Mold Core Pins

• Injection Mold Sleeves

• Custom Mold Inserts

• Multi-Cavity Mold Components

Frequently Asked Questions (FAQ)

Q1: Do you supply standard core pins?
No. All core pins are manufactured strictly according to customer drawings or specifications.

Q2: What inspection documents can be provided?
Dimensional inspection reports, material confirmation, and additional quality records are available upon request.

Q3: Are these core pins suitable for multi-cavity moulds?
Yes. They are designed for consistent performance in high-cavity and long-running mould applications.

Q4: Can you produce replacement core pins for existing moulds?
Yes. Replacement parts can be manufactured based on drawings or samples.

Get a Quote

To request a quotation for OEM precision core pins, please submit your drawings, tolerance requirements, and material specifications.
Our engineering team will evaluate your project and provide a technical quotation with inspection options.
