CNC Machined Mold Parts for Plastic Injection Molds
Precision injection molds depend on accurately machined components to maintain stable alignment, repeatable part quality, and long service life. Our CNC machined mold parts are custom-made components for plastic injection molds, manufactured strictly to customer drawings for both new mold builds and replacement programs.
As a custom precision mold components manufacturer, we support a wide range of CNC-machined mold parts—typically including cores, cavities, inserts, sleeves, bushings, retainers, and other functional interfaces where fit, runout, surface finish, and hardness directly affect molding performance. Because these are not standardized items, every part is produced to your CAD/2D specifications and verified according to your inspection requirements.
Product Description
"CNC machined mold parts" refers to precision metal components used inside an injection mold stack. These parts may be responsible for forming plastic geometry, guiding movement, sealing shut-offs, supporting alignment, or managing wear zones. In many molds, multiple parts must work together as a system, so consistent datums and stable interface tolerances are critical.
Typical CNC Machined Mold Parts We Produce

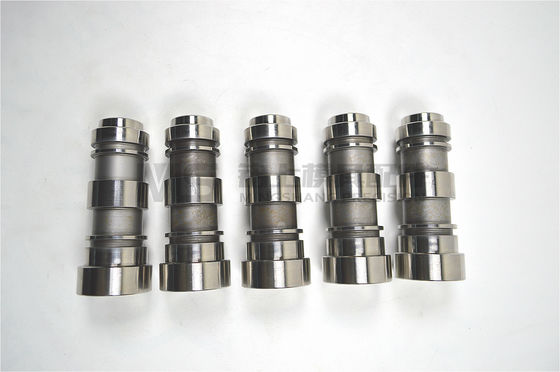

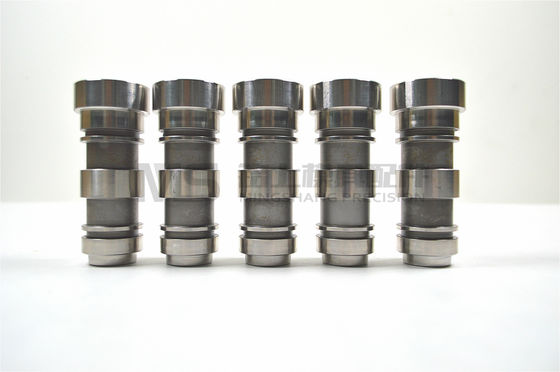

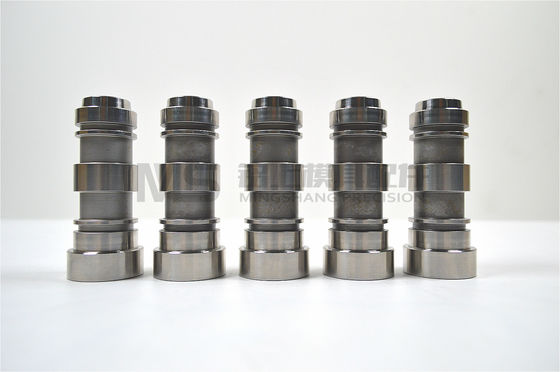

- Core components (core inserts, core pins, core blocks)
- Cavity components (cavity inserts, cavity blocks/plates)
- Sleeves and bushings for guiding and wear protection
- Retainers, spacers, and precision interface parts
- Shut-off and sliding interface components (design-dependent)
- Custom assemblies with shoulders, grooves, threads, or special features per drawing
Materials, Heat Treatment, and Finishing
Material selection is driven by the mold environment and functional requirement: wear resistance for sliding zones, corrosion resistance for humid/cleaning conditions, or polishability for cosmetic forming surfaces. Heat treatment and optional surface treatments/coatings can be applied according to your specification to improve durability, reduce galling, and stabilize long-run performance.
Applications
Our CNC machined mold parts are used in plastic injection molds for:
- New mold manufacturing and tooling development
- Mold maintenance and spare parts replacement
- Engineering changes and performance upgrades
- High-cavity and high-cycle molds requiring repeatable fit and alignment
- Projects where interchangeability and documentation are essential
(End products vary by customer design; we focus on the mold-system function.)
Precision & Manufacturing Capabilities
We build our manufacturing process around repeatability, tight tolerance control, and clear quality documentation.
Manufacturing Processes
- Precision CNC milling and turning
- EDM / wire EDM for complex geometry (as required)
- Grinding for critical fits, datums, and sealing lands
- Heat treatment coordination for target hardness and dimensional stability
- Polishing / fine finishing for forming and sliding surfaces
- Set matching for multi-piece and multi-cavity orders
Key Quality Controls
- Datum-based machining for repeatable assembly fit
- Concentricity/runout control for coaxial features
- Flatness/parallelism control for interface surfaces
- Fit tolerance control to reduce hand-fitting and improve interchangeability
- Surface finish management for stable release and wear performance
- Sampling or 100% inspection options based on your requirements
Inspection & Documentation
- Dimensional inspection reports available (key features or full report)
- Material certificates and heat treatment records upon request
- Marking/traceability options for set and cavity management
Customer Value for Mold Reliability
Stable mold performance and consistent output - Accurate mold components reduce variation, flash risk, mismatch, and ejection instability.
Lower maintenance time and cost - Correct fits and consistent datums reduce hand fitting, speed up assembly, and make replacement parts easier to install.
Longer service life in high-cycle production - Optimized materials, heat treatment, and surface finish extend wear life and reduce unplanned stops.
Better interchangeability for spare parts programs - Repeatable manufacturing and inspection reporting support quick replacement and predictable maintenance planning.
What We Need for Quotation
To quote CNC machined mold parts accurately, please provide:
- 3D CAD (STEP/IGES) and 2D drawing (PDF/DWG)
- Part list and quantities (single parts or sets)
- Material requirement (or operating conditions for recommendation)
- Heat treatment / target hardness specification
- Surface finish requirements (Ra / polishing level for forming zones)
- Critical tolerances and GD&T (datums, fits, runout, sealing zones)
- Interface details (mating dimensions, retention method, reference datums)
- Inspection/document needs (FAI, report format, sampling vs. 100% inspection)
- Lead time and packaging requirements
If these are replacement parts, providing mating interface dimensions helps ensure drop-in compatibility.
Frequently Asked Questions
Do you manufacture strictly to customer drawings and tolerances?
Yes. We produce to your drawings, GD&T, and datum references. If tolerances are not specified, we can propose a practical tolerance plan for approval.
Can you support both new mold builds and spare parts?
Yes. We support new tooling, replacement parts, and engineering upgrades.
What file formats do you accept?
STEP/IGES for 3D and PDF/DWG for 2D drawings are preferred.
Do you provide inspection reports and certificates?
Yes. Dimensional inspection reports and material/heat treatment certificates can be provided upon request.
Can you supply matched sets for multi-cavity molds?
Yes. We can manufacture matched sets with controlled variation and provide inspection data for key features.
Get Started Today
Send us your STEP/2D drawings, part list, quantities, and required delivery date for CNC machined mold parts. We'll reply with a clear quotation, lead time, and available quality documentation options (inspection report, material certificate, heat treatment record, and traceability support).
