Metal Precision Cnc Machined Parts Grinding Thread Small Tools 200mm Max Diameter

Metal Precision Cnc Machined Parts Grinding Thread Small Tools 200mm Max Diameter
Metal Precision Cnc Machined Parts Grinding Thread Small Tools 200mm Max Diameter Metal Precision Cnc Machined Parts Grinding Thread Small Tools 200mm Max Diameter Metal Precision Cnc Machined Parts Grinding Thread Small Tools 200mm Max Diameter

Large Image :  Metal Precision Cnc Machined Parts Grinding Thread Small Tools 200mm Max Diameter

Product Details:
Place of Origin: China
Brand Name: SENLAN
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: 1-30USD
Packaging Details: Coated with anticorrosive oil, packed in carton box
Delivery Time: 15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 2000pcs/week

Metal Precision Cnc Machined Parts Grinding Thread Small Tools 200mm Max Diameter

Description
Material: SKD61 Hardness: 48-52HRC
Process: CNC Machining Service Model Number: Customized
Max Diameter: 200mm Thread: Process By Grinding
High Light:

cnc machining services

,

precision machined parts

Customized Grinding Thread CNC Turning Parts Precision CNC Machined Parts





1. Material



SKD61/DAC/8407/S136/SUS420/STAVAX and more..



2. Hardness



48-52 HRC or depends on processing materials



3. Specification



  • Size tolerance within +/-0.002mm
  • Axiality within 0.005mm
  • Surface Roughness within Ra0.6
  • Verticality within 0.005mm
  • The multi-cavity is well-matched
  • Further dimensions,lengths and materials available on request



4.Company Profile



  • Founded in March,2010
  • Specialized in manufacturing precision mould parts ,CNC machining parts.
  • Has temperature-controlled workshop with around 40 skillful operators
  • Design software:AutoCAD2008/2014/2017/  UG NX8.0/ Solidwork2012/Pro Engineer Wildfire4.0
  • Working hours:6 days per week including day and night shift with 20 hours in total.
  • Minimum fabrication precision is 0.002mm & the best fabrication surface finish is Ra0.4
  • Full lead time(General):7~15days



5. Business Range



  • Manufacturing & inspection capacity in steel, stainless and copper materials for precision mould parts,Cavity pins, core pins,Punches,Ejector sleeve,CNC machining parts etc...
  • Services:CNC machining,CNC Milling,Sodick EDM,Sodick Wire-cut,OD grinding,ID grinding,Surface grinding,Thread grinding,Polishing etc..
  • Industries Served: Medical/Packaging/Aerospace/Electronics

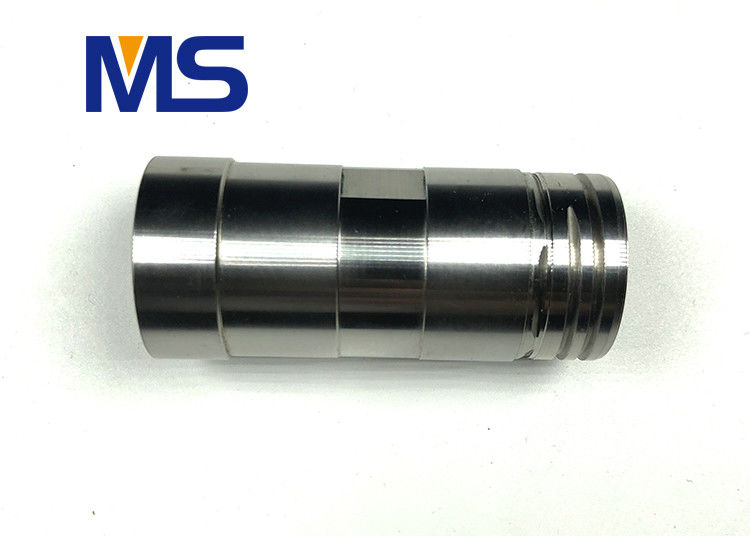

Metal Precision Cnc Machined Parts Grinding Thread Small Tools 200mm Max Diameter 0

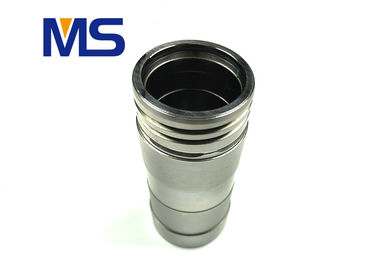

Metal Precision Cnc Machined Parts Grinding Thread Small Tools 200mm Max Diameter 1

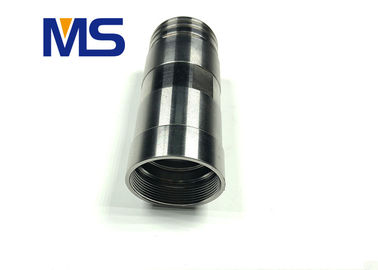

Metal Precision Cnc Machined Parts Grinding Thread Small Tools 200mm Max Diameter 2

6.Equipment List:



CNC TAKISAWA NEX-108 0.002mm 4 Japan
WEDM SODICK AQ400LS 0.003mm 2 Japan
CHMER G435 0.005mm 1 Taiwan
EDM CREATOR CJ-235 0.005mm 4 Taiwan
Mirror EDM SODICK Sodick-AM30LS 0.003mm 2 Japan
MAKIMO EDGE2 0.002mm 1 Japan
Desktop lathe JINGCHENG YB-15 0.05mm 4 China
YB-25 0.05mm 2
OD grinder HOTMAN FX-03 0.002mm 5 China
ID grinder HOTMAN FX-05 0.002mm 3
Centeless grinder HOTMAN FX-12S 0.001mm 2 China
Surface Grinder SHUGUANG 614 0.001mm 4 China
618 0.001mm 2
EDM drilling ZENBANG ZB-03 0.01mm 1 Taiwan
Miller TOPINR AVA 0.01mm 2 Taiwan



7.Advantages



1. Good quality

Include machining, surface treatment, specification, packing, etc.



2. Proper suggestions

If you are not familiar with material, surface treatment or something, please tell us your requirement, according to which we will provide you with proper suggestions. Also, advice will be given during machining when your design is found not good enough. Anyway, it is finally up to you whether to adopt the suggestions.



3. Lower cost in machining hardended metal

We've found our way to slow the damage of tool during machining hardended metal, and as a result, the cost decreases.



4. Good after sales services

If, unexpectedly, the goods are not meet the requires, we will provide you with solutions or take yours into consideration.



8.Payment Terms



Payment terms: T/T,Paypal,Western Union,50% deposit, balance before shipment is available

Shipment: DHL,TNT,Fedex are available



9.Further Information



Testing machine Digital Height Gauge, caliper, Coordinate measuring machine, projection machine,roughness tester, hardness tester and so on.
QC 1) Technicians self-check in production
2) Engineer spot check in production
3) QC inspects after mass production finished
4) International sales who were trained the technical know-how spot check before shipping
Main Markets North America, South America, Eastern Europe , West Europe , North Europe,South Europe, South Asia, Africa Africa



Packing & Delivery



Package Coated with anticorrosive oil, packed in carton box with bubble wrap, together with QA report.
Express DHL, FedEx, UPS, TNT,by Sea .


If you are interested, please do not hesitate to contact us! Thank you!
