B Type DIN HASCO Dme Sprue Bushing , Good Tolerance Injection Molding Nozzle

B Type DIN HASCO Dme Sprue Bushing , Good Tolerance Injection Molding Nozzle
B Type DIN HASCO Dme Sprue Bushing , Good Tolerance Injection Molding Nozzle

Large Image :  B Type DIN HASCO Dme Sprue Bushing , Good Tolerance Injection Molding Nozzle

Product Details:
Place of Origin: China
Brand Name: SENLAN
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: 1-30USD
Packaging Details: Coated with anticorrosive oil, packed in carton box
Delivery Time: 7-15 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 2000pcs/week
Contact Now

B Type DIN HASCO Dme Sprue Bushing , Good Tolerance Injection Molding Nozzle

Description
Material: Skd61 Hardness: HRC48-52
Accuracy: +/-0.01mm Standard: HASCO,MISUMI,JIS,DME,DIN
Application: Plastic Injection Mould Heat Treatment: Vacuumed
Highlight:

dme sprue bushing

,

sprue bushing injection molding

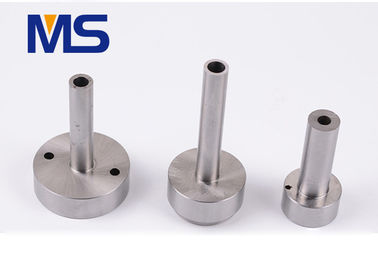

B Type DIN HASCO DME Standard Sprue Bushing
High-tolerance injection molding nozzle with excellent precision and durability.
Product Features
  • Precision sprue bushing components
  • Available materials: S45C, SKD11, SKD61
  • Customization options available
Material Specifications
Material Inner Hardness Surface Hardness Heat Treatment
S45C HRC50~55 HRC50~55 Partial
SKD11 HRC58~62 HRC58~62 Vacuumed
SKD61 HRC34~38 HV900~1100 Nitrided
HRC50~54 HRC50~54 HRC50~54 Vacuumed
B Type DIN HASCO Dme Sprue Bushing , Good Tolerance Injection Molding Nozzle 0
Product Range
SENLAN manufactures a comprehensive line of standard and customized mold components including ejector pins, punches, insert pins, cavity pins, core pins, mold cores, and other precision mold accessories and die parts.
Why Choose SENLAN
  • Specialized manufacturer of precision core pins, cavity pins, and insert pins
  • 8+ years experience in stamping die parts, injection die parts, auto parts, and metal-working products
  • Advanced production equipment with experienced operators
  • Extensive OEM and ODM experience
  • Competitive pricing, superior quality, and reliable on-time delivery
B Type DIN HASCO Dme Sprue Bushing , Good Tolerance Injection Molding Nozzle 1 B Type DIN HASCO Dme Sprue Bushing , Good Tolerance Injection Molding Nozzle 2 B Type DIN HASCO Dme Sprue Bushing , Good Tolerance Injection Molding Nozzle 3
Production Equipment
Equipment Type Brand Model Precision Quantity Origin
CNC TAKISAWA NEX-108 0.002mm 4 Japan
WEDM SODICK AQ400LS 0.003mm 2 Japan
WEDM CHMER G435 0.005mm 1 Taiwan
EDM CREATOR CJ-235 0.005mm 4 Taiwan
Mirror EDM SODICK AM30LS 0.003mm 2 Japan
EDM MAKIMO EDGE2 0.002mm 1 Japan
Desktop lathe JINGCHENG YB-15 0.05mm 4 China
Desktop lathe JINGCHENG YB-25 0.05mm 2 China
OD grinder HOTMAN FX-03 0.002mm 5 China
ID grinder HOTMAN FX-05 0.002mm 3 China
Centerless grinder HOTMAN FX-12S 0.001mm 2 China
Surface Grinder SHUGUANG 614 0.001mm 4 China
Surface Grinder SHUGUANG 618 0.001mm 2 China
EDM drilling ZENBANG ZB-03 0.01mm 1 Taiwan
Miller TOPINR AVA 0.01mm 2 Taiwan
Payment & Shipping
Payment Terms: T/T, PayPal, Western Union - 50% deposit, balance before shipment
Shipping Methods: DHL, TNT, FedEx, UPS, and sea freight available
Quality Assurance
Testing Equipment Digital Height Gauge, caliper, Coordinate measuring machine, projection machine, roughness tester, hardness tester
Quality Control Process
  • Technicians self-check during production
  • Engineer spot checks during production
  • QC inspection after mass production completion
  • International sales team technical inspection before shipping
Main Markets North America, South America, Eastern Europe, Western Europe, Northern Europe, South Asia, Africa
Packaging & Delivery
Packaging Coated with anti-corrosive oil, packed in carton boxes with bubble wrap, includes QA report
Express Services DHL, FedEx, UPS, TNT, and sea freight
Interested in our products? Contact us today for more information!
