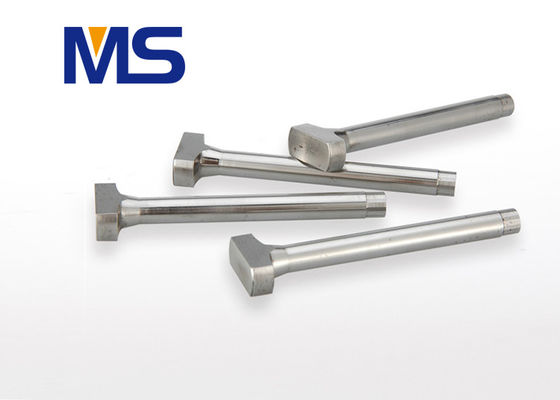

0.005mm Tolerance Flat Head Core Pins | Corrosion Resistant Cavity Pins

Product Overview

Our Flat Head Mold Core Pins and Cavity Pins are precision-engineered for use in various injection molding applications. Featuring corrosion-resistant materials and 0.005mm tolerance, these pins are designed for superior durability and consistent performance. Ideal for high-precision molds, they ensure efficient production and minimal downtime.

Key Features & Advantages

• High Precision: Manufactured to a strict ±0.005mm tolerance for optimal mold performance

• Corrosion Resistance: Specially treated to resist wear and corrosion, enhancing tool life

• Flat Head Design: Ensures consistent force distribution during ejection, reducing mold damage

• Durability: Long-lasting performance even in harsh molding environments

• Customizable: Available in various sizes, tolerances, and designs to fit specific molding applications

• Material Quality: Crafted from high-quality steel, providing excellent strength and durability

Applications & Industry Use

• Packaging Industry: Suitable for injection molding of bottle caps, closures, and seal components

• Medical Industry: Precision parts for molding medical products, including syringe components and vials

• Cosmetics: Used in manufacturing cosmetic packaging, such as lipstick tubes and compact cases

• Consumer Goods: Ideal for a wide range of plastic products requiring precise molding

These core pins and cavity pins are integral to the production of high-quality molded parts, ensuring high performance and minimal wear.

Mold Structure & Design Description

Our flat head mold core pins are designed to ensure precise and uniform ejection forces in multi-cavity injection molds. Key design features include:

• Flat Head: Provides even pressure distribution, ensuring uniform ejection and preventing damage to molded parts

• Corrosion-Resistant Coating: Applied to prevent rust and wear, improving longevity and reducing maintenance costs

• Customizable Design: Tailored to fit specific mold designs, ensuring optimal performance

• High Tolerance: Machined to ±0.005mm tolerance, ensuring precision and consistency in every part

• Versatile Applications: Suitable for a variety of molds, including multi-cavity, high-cycle molds

These features make our mold core pins and cavity pins essential for industries where precision and durability are critical.

Manufacturing Capabilities & CNC Machining

Our manufacturing process involves advanced CNC machining to ensure each core pin and cavity pin is made to exact specifications. We offer:

• Precision CNC Machining: Capable of achieving ±0.005mm tolerances, ensuring the highest level of precision

• Material Expertise: Use of corrosion-resistant materials to ensure long-lasting performance

• Customization: We can manufacture core pins and cavity pins in a range of sizes and configurations based on your specific mold requirements

• Rapid Prototyping & Production: Ability to quickly produce prototypes and transition to full-scale production

We specialize in delivering high-precision, built-to-print solutions tailored to your specific mold design.

Custom Development & OEM Cooperation Process

1. Consultation & Design: We collaborate with you to understand your technical requirements and provide initial design recommendations

2. Prototyping: We produce prototypes to validate the design before full-scale manufacturing

3. CNC Machining & Coating: Precision machining, followed by corrosion-resistant coating application

4. Quality Control: Each part undergoes rigorous quality control checks to ensure it meets tolerance and material standards

5. Delivery: Timely delivery with reliable shipping options worldwide

We are committed to providing OEM and custom-built-to-print solutions for your specific molding needs.

Quality Control & Export Experience

• In-House Testing: Comprehensive testing to ensure dimensional accuracy, corrosion resistance, and durability

• ISO Certified: We adhere to ISO 9001 standards for quality management, ensuring consistent product quality

• Export Expertise: Experienced in handling international shipments and compliance with global standards

• Full Traceability: Detailed records for all parts, providing full traceability from production to delivery

Our quality control measures guarantee that every part we manufacture meets the highest standards of precision and durability.

Related Products (Internal Links)

• Injection Mold Core Pins with DLC Coating

• High-Precision CNC Machined Mold Parts

• Corrosion-Resistant Mold Inserts

• Stepped Ejector Pins for Multi-Cavity Molds

Frequently Asked Questions (FAQ)

Q1: What materials are the mold core pins made from?
Our core pins are made from high-quality steel, treated with corrosion-resistant coatings for enhanced durability and performance.

Q2: What is the typical tolerance for these core pins?
Our core pins are machined to ±0.005mm tolerance, ensuring precise and reliable performance.

Q3: Can these core pins be customized for my specific mold design?
Yes, we offer fully customizable core pins to fit your mold specifications, including different sizes, shapes, and materials.

Q4: How do you ensure the quality of the core pins?
We conduct rigorous quality control checks, including material testing, dimensional accuracy, and surface treatments to ensure the highest quality.

Get a Quote

For a custom quote on precision CNC machined core pins, please share your technical drawings and requirements. Our team will respond promptly with a detailed quote tailored to your needs.
