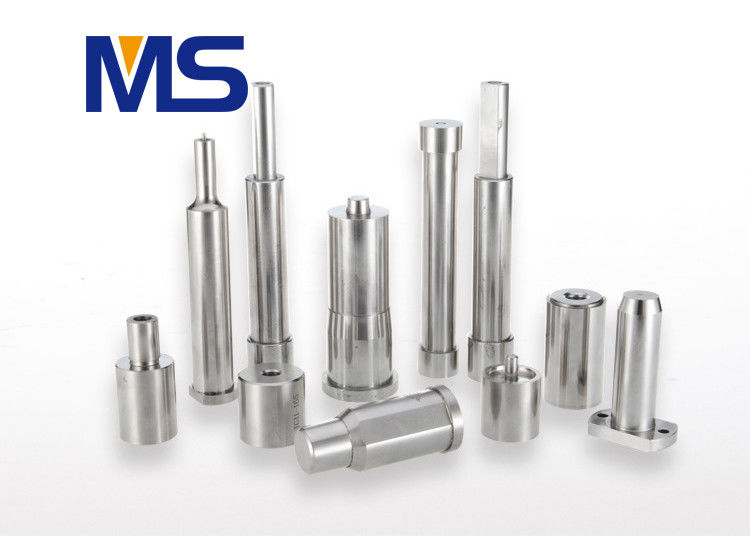

ISO Certified Precision Mold Core Pins | Stepped Round Punching Components

Product Overview

Our Standard ISO Certificated Mold Core Pins are precision-machined components, designed to meet stringent industry standards for plastic injection molding. Manufactured from high-quality metals and engineered for durability, these core pins ensure consistent and precise molding operations, offering reliable performance for various molding applications, including bottle caps, packaging components, and medical consumables.

Core Features & Advantages

• ISO Certification: Manufactured in compliance with ISO 9001 standards, ensuring consistent product quality.

• High-Precision Manufacturing: Machined to ±0.01mm tolerance for exceptional accuracy in mold designs.

• Durable Material: Made from high-strength metal alloys, ensuring long-lasting performance in demanding molding environments.

• Stepped Design: The stepped configuration offers precise ejection and contributes to enhanced mold functionality.

• Corrosion Resistance: Coated to provide resistance against wear and corrosion, ensuring a longer service life.

• Customization Available: Tailored to meet the specific needs of your injection molding applications.

Applications & Industry Use

• Packaging Industry: Ideal for bottle cap molds, closure molds, and other packaging components.

• Medical Industry: Suitable for the production of medical consumables, including syringe components, vials, and caps.

• Cosmetics Packaging: Perfect for molding plastic components used in cosmetic packaging, such as lipstick tubes and compact cases.

• Consumer Goods: Applied in the production of other plastic molded parts requiring high precision and durability.

The core pins are essential components that ensure smooth operation in the molding process, enabling the efficient production of high-quality, consistent molded parts.

Mold Structure & Design Description

The mold core pins are meticulously engineered to meet the needs of various mold types, providing optimal performance throughout the injection molding process:

• Stepped Core Pins: Our core pins are designed with a stepped shape to facilitate smooth material flow and mold ejection, ensuring efficient operation.

• Metal Alloys: Manufactured from durable, high-strength metal alloys, these core pins are built to last under demanding conditions.

• Standardization: Manufactured to ISO standards, ensuring consistency across every batch.

• Customization Options: Available in various dimensions, materials, and coatings to suit your specific mold design requirements.

These core pins are engineered to provide precision and reliability, ensuring minimal downtime and optimal performance throughout the molding process.

Manufacturing Capabilities & CNC Machining

We utilize advanced CNC machining technology to produce high-precision mold core pins that meet the highest quality standards:

• High Precision: Achieve tight tolerances of ±0.01mm for consistent, repeatable mold performance.

• Advanced Surface Treatment: Pins are treated for enhanced corrosion resistance and wear resistance, ensuring longevity.

• Rapid Prototyping: We offer fast prototyping to quickly test and validate designs, accelerating time-to-market for new molds.

• OEM Solutions: We offer custom manufacturing services to meet your exact specifications, ensuring perfect fit and functionality.

• High-Volume Production: Our facilities support large-scale production while maintaining high precision across all parts.

Our CNC machining capabilities ensure that every part is crafted with precision, speed, and reliability.

Custom Development & OEM Cooperation Process

1. Initial Consultation: We work with you to understand your specific requirements and provide tailored recommendations for mold core pin designs.

2. Prototyping: After finalizing the design, we produce prototypes for testing and validation.

3. Precision Machining: Using CNC technology, we manufacture the core pins to meet tight tolerances.

4. Coating & Surface Treatment: After machining, the core pins undergo surface treatment to enhance corrosion and wear resistance.

5. Quality Control: Every part is subjected to rigorous quality checks to ensure that it meets your specifications and our high standards.

6. Delivery & Support: We offer reliable shipping and ongoing support, ensuring that your parts are delivered on time and meet all expectations.

We specialize in custom OEM solutions, providing high-quality built-to-print mold core pins that perfectly fit your mold designs.

Quality Control & Export Experience

• ISO Certified: Our manufacturing processes adhere to ISO 9001 standards, ensuring consistent and reliable product quality.

• Comprehensive Testing: Each part undergoes a series of tests, including dimensional accuracy, surface finish, and corrosion resistance checks, to meet the highest standards.

• Global Expertise: With years of experience in international trade, we ensure compliance with global standards for quality and shipping.

• Traceability: All products are fully traceable from design to delivery, ensuring transparency and accountability throughout the process.

Our rigorous quality control measures and global export experience guarantee that you receive reliable, high-performance mold core pins for your projects.

Related Products (Internal Links)

• Precision Mold Core Pins

• Customized Mold Components for Plastic Injection Molding

• Corrosion-Resistant Injection Molding Parts

• Stepped Core Pins for Multi-Cavity Molds

Frequently Asked Questions (FAQ)

Q1: What materials are the mold core pins made from?
Our mold core pins are made from high-strength metal alloys that offer durability and reliability in high-cycle molding applications.

Q2: What tolerance can you achieve for these core pins?
We can machine the core pins to ±0.01mm tolerance, ensuring high precision and consistency in mold performance.

Q3: Are these core pins customizable?
Yes, we offer custom solutions tailored to your specific mold designs, including size, shape, material, and coatings.

Q4: How do you ensure the quality of the mold core pins?
We employ strict quality control processes, including dimensional checks, surface finish inspections, and corrosion resistance tests to ensure top-tier product quality.

Get a Quote

For more information or to request a customized quote for ISO-certificated mold core pins, please provide your design specifications, and we’ll get back to you with a tailored solution.
