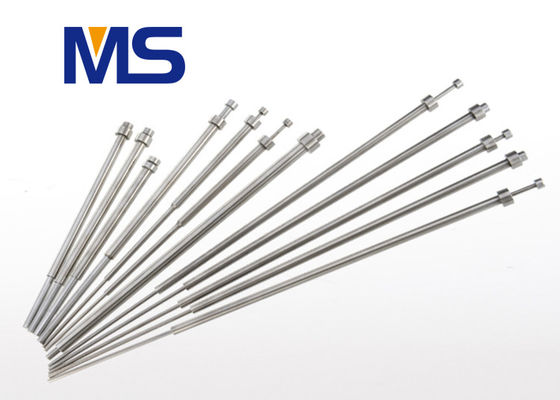

One-Step Center Ejector Pins and Sleeves
Precision Plastic Injection Mold Ejector Pin and Ejector Sleeve with excellent toughness and tight tolerance of ±0.005mm.
Available Specifications
ISO 8020, DIN 9861, DIN 9844, DIN 9810, and customized specifications
| Material |
Carbide, ASP23, SKD11, SKD61, HSS, A2, M2, D2, SUJ2, S45C, etc. |
| Standard |
Dayton, Lane, DIN, ISO, MISUMI, EDM, FIBRO, MOELLER, HASCO, etc. |
| Size |
Customized according to your drawings or product standards |
| Place of Origin |
Dongguan, Guangdong, China |
| Heat Treatment |
Available |
| Surface Work |
TiCN, TiN, Aitain, Ticrn, nitriding, Black oxygened, Black coating, etc. |
| Tolerance |
±0.002mm |
| Polishness |
Close to Ra0.2 |
Main Products
We specialize in high precision mould components including:
- Ejector pins and sleeves
- Slide retainers
- Latch locks
- Date stamps
- Locating units
- Ejector series
- Air poppet valves
- Cooling systems
We are experienced with HASCO, D-M-E, JIS, CUMSA, PROGRESSIVE, STRACK, SUPERIOR standards and can design and produce customized products to meet specific requirements.
Equipment List
| Machine Type |
Brand |
Model |
Precision |
Quantity |
Origin |
| CNC |
TAKISAWA |
NEX-108 |
0.002mm |
4 |
Japan |
| WEDM |
SODICK |
AQ400LS |
0.003mm |
2 |
Japan |
| WEDM |
CHMER |
G435 |
0.005mm |
1 |
Taiwan |
| EDM |
CREATOR |
CJ-235 |
0.005mm |
4 |
Taiwan |
| Mirror EDM |
SODICK |
AM30LS |
0.003mm |
2 |
Japan |
| Mirror EDM |
MAKIMO |
EDGE2 |
0.002mm |
1 |
Japan |
| Desktop Lathe |
JINGCHENG |
YB-15 |
0.05mm |
4 |
China |
| Desktop Lathe |
JINGCHENG |
YB-25 |
0.05mm |
2 |
China |
| OD Grinder |
HOTMAN |
FX-03 |
0.002mm |
5 |
China |
| ID Grinder |
HOTMAN |
FX-05 |
0.002mm |
3 |
China |
| Centerless Grinder |
HOTMAN |
FX-12S |
0.001mm |
2 |
China |
| Surface Grinder |
SHUGUANG |
614 |
0.001mm |
4 |
China |
| Surface Grinder |
SHUGUANG |
618 |
0.001mm |
2 |
China |
| EDM Drilling |
ZENBANG |
ZB-03 |
0.01mm |
1 |
Taiwan |
| Miller |
TOPINR |
AVA |
0.01mm |
2 |
Taiwan |
Payment Terms
Payment Methods: T/T, PayPal, Western Union
Terms: 50% deposit, balance before shipment
Shipping: DHL, TNT, FedEx available
Packing Information
Safe export packaging: plastic bag + sponge + cartons with foam packing
How to Order
- Send us drawings or standard code & size
- We will quote you within 4 hours
- Get agreement with price and sign PO or Contract
- Make payment in advance
- If sample required, we will make sample first
Frequently Asked Questions
Where is your factory located? How can I visit there?
Our factory is located in NO.27, ShangLang Road, XiaBian District, Chang'an town, Dongguan China. All our clients from home or abroad are warmly welcomed to visit us at any time.
When can I get the quotation or the reply on your side?
The swift response will usually be taken within 4 hours after we got your inquiry or email. If you are very urgent, please let us know so that we will regard your inquiry priority.
Do you provide free sample?
Yes, we could offer some samples for free, but freight collect.
How can you ensure the quality of the parts that we ordered?
Firstly, pre-testing will be done before every step. Secondly, we'll have the final checking for all the parts before shipment. A strict quality control system ensures high quality parts.
What will you do after sales?
We have after-sales service. When you receive our products, we will follow up and await your feedback. Any question related to our products, our experienced engineers are ready to help.
If you are interested, please do not hesitate to contact with us! Thank you!
