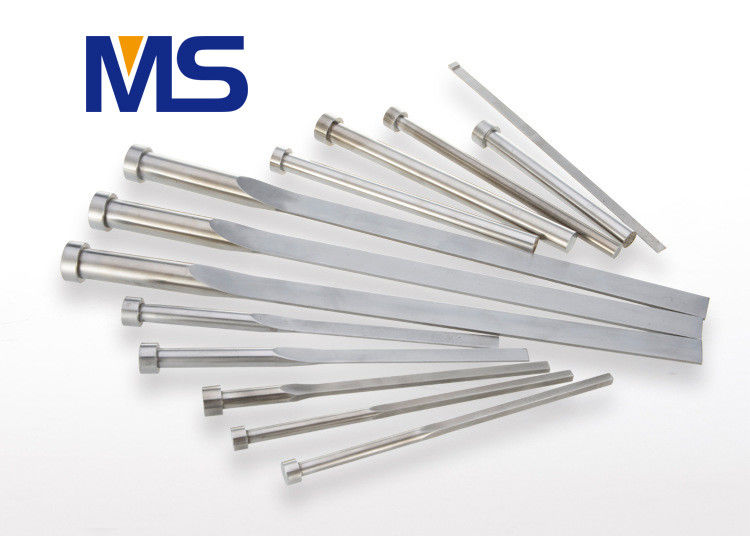

Non-Standard Flat Square Ejector Pins
Customized shaped push injection punch mould components for plastic mould applications
Product Specifications
Available in ISO 8020, DIN 9861, DIN 9844, DIN 9810 standards, and customized specifications
| Material |
Carbide, ASP23, SKD11, SKD61, HSS, A2, M2, D2, SUJ2, S45C, etc. |
| Standard |
Dayton, Lane, DIN, ISO, MISUMI, EDM, FIBRO, MOELLER, HASCO, etc. |
| Size |
Dependent on your drawings or product standards |
| Place of Origin |
Dongguan, Guangdong, China |
| Heat Treatment |
Available |
| Surface Work |
TiCN, TiN, Aitain, Ticrn, nitriding, Black oxygened, Black coating, etc. |
| Tolerance |
±0.002mm |
| Polishness |
Close to Ra0.2 |
Main Products
We specialize in high precision mould components including:
- Ejector pins and ejector series
- Slide retainers and Latch locks
- Date Stamps and Locating units
- Air poppet valves and Cooling systems
Familiar with HASCO, D-M-E, JIS, CUMSA, PROGRESSIVE, STRACK, SUPERIOR standards. Customized design and production available to meet special requirements.
Manufacturing Equipment
| Equipment Type |
Brand |
Model |
Precision |
Quantity |
Origin |
| CNC |
TAKISAWA |
NEX-108 |
0.002mm |
4 |
Japan |
| WEDM |
SODICK |
AQ400LS |
0.003mm |
2 |
Japan |
| WEDM |
CHMER |
G435 |
0.005mm |
1 |
Taiwan |
| EDM |
CREATOR |
CJ-235 |
0.005mm |
4 |
Taiwan |
| Mirror EDM |
SODICK |
Sodick-AM30LS |
0.003mm |
2 |
Japan |
| Mirror EDM |
MAKIMO |
EDGE2 |
0.002mm |
1 |
Japan |
| Desktop Lathe |
JINGCHENG |
YB-15 |
0.05mm |
4 |
China |
| Desktop Lathe |
JINGCHENG |
YB-25 |
0.05mm |
2 |
China |
| OD Grinder |
HOTMAN |
FX-03 |
0.002mm |
5 |
China |
| ID Grinder |
HOTMAN |
FX-05 |
0.002mm |
3 |
China |
| Centerless Grinder |
HOTMAN |
FX-12S |
0.001mm |
2 |
China |
| Surface Grinder |
SHUGUANG |
614 |
0.001mm |
4 |
China |
| Surface Grinder |
SHUGUANG |
618 |
0.001mm |
2 |
China |
| EDM Drilling |
ZENBANG |
ZB-03 |
0.01mm |
1 |
Taiwan |
| Miller |
TOPINR |
AVA |
0.01mm |
2 |
Taiwan |
Large Stock Availability
Payment & Shipping Terms
Payment Methods: T/T, Paypal, Western Union
Payment Terms: 50% deposit, balance before shipment
Shipping Methods: DHL, TNT, Fedex available
Packing Information
Safe export package: plastic bag + sponge + cartons with foam packing
How to Order
- Send us drawing or standard code & size
- We will quote you within 4 hours
- Get agreement with price and sign PO or Contract
- Make payment in advance
- If sample required, we will make sample first
Frequently Asked Questions
Where is your factory located? How can I visit there?
Our factory is located in NO.27, ShangLang Road, XiaBian District, Chang'an town, Dongguan China. All our clients from home or abroad are warmly welcomed to visit us at any time.
When can I get the quotation or the reply on your side?
The swift response will usually be taken within 4 hours after we got your inquiry or email. If you are very urgent, please let us know so that we will regard your inquiry priority.
Do you provide free sample?
Yes, we could offer some samples for free, but freight collect.
How can you ensure the quality of the parts that we ordered?
Firstly, pre-testing is done before every step. Secondly, we conduct final checking for all parts before shipment. Our strict quality control system ensures high quality parts.
What will you do after sales?
We provide after-sales service. When you receive our products, we will follow up and await your feedback. Any questions related to our products will be addressed by our experienced engineers.
If you are interested, please do not hesitate to contact with us! Thank you!
