CNC Machining Part Ejector Pins and Sleeves

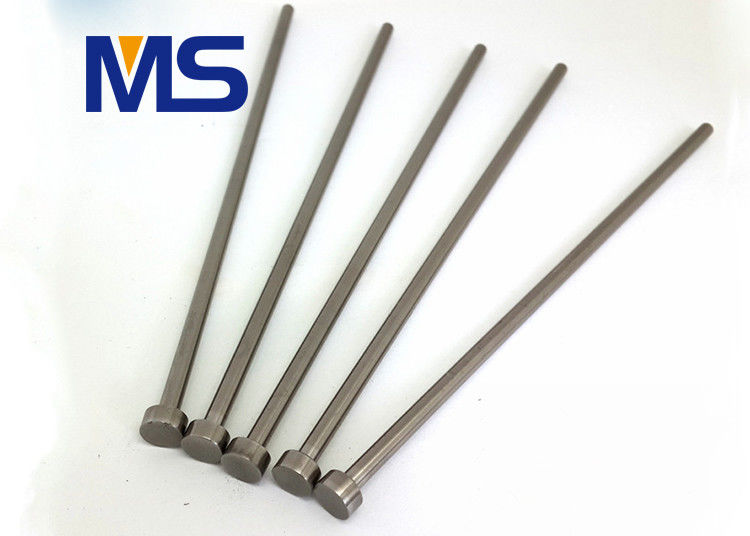

AISI Standard Material SKH51 Straight Ejector Pins for Plastic Mould Applications
Available Specifications
ISO 8020, DIN 9861, DIN 9844, DIN 9810, and customized standards
| Material |
Carbide, ASP23, SKD11, SKD61, HSS, A2, M2, D2, SUJ2, S45C, etc. |
| Standard |
Dayton, Lane, DIN, ISO, MISUMI, EDM, FIBRO, MOELLER, HASCO, etc. |
| Size |
Dependent on your drawings or product standards |
| Place of Origin |
Dongguan, Guangdong, China |
| Heat Treatment |
Available |
| Surface Work |
TiCN, TiN, Aitain, Ticrn, nitriding, Black oxygened, Black coating, etc. |
| Tolerance |
±0.002mm |
| Polishness |
Close to Ra0.2 |
Main Products
Our comprehensive product line includes high-precision mould components such as:
- Ejector pins and sleeves
- Slide retainers
- Latch locks
- Date stamps
- Locating units
- Ejector series
- Air poppet valves
- Cooling systems
We are experienced with HASCO, D-M-E, JIS, CUMSA, PROGRESSIVE, STRACK, SUPERIOR standards and can design and produce customized products to meet specific requirements.
Equipment List
| Machine Type |
Brand |
Model |
Precision |
Quantity |
Origin |
| CNC |
TAKISAWA |
NEX-108 |
0.002mm |
4 |
Japan |
| WEDM |
SODICK |
AQ400LS |
0.003mm |
2 |
Japan |
| WEDM |
CHMER |
G435 |
0.005mm |
1 |
Taiwan |
| EDM |
CREATOR |
CJ-235 |
0.005mm |
4 |
Taiwan |
| Mirror EDM |
SODICK |
AM30LS |
0.003mm |
2 |
Japan |
| Mirror EDM |
MAKIMO |
EDGE2 |
0.002mm |
1 |
Japan |
| Desktop Lathe |
JINGCHENG |
YB-15 |
0.05mm |
4 |
China |
| Desktop Lathe |
JINGCHENG |
YB-25 |
0.05mm |
2 |
China |
| OD Grinder |
HOTMAN |
FX-03 |
0.002mm |
5 |
China |
| ID Grinder |
HOTMAN |
FX-05 |
0.002mm |
3 |
China |
| Centerless Grinder |
HOTMAN |
FX-12S |
0.001mm |
2 |
China |
| Surface Grinder |
SHUGUANG |
614 |
0.001mm |
4 |
China |
| Surface Grinder |
SHUGUANG |
618 |
0.001mm |
2 |
China |
| EDM Drilling |
ZENBANG |
ZB-03 |
0.01mm |
1 |
Taiwan |
| Miller |
TOPINR |
AVA |
0.01mm |
2 |
Taiwan |
Large Stock Availability
Payment Terms
Accepted payment methods: T/T, PayPal, Western Union
Standard terms: 50% deposit, balance before shipment
Available shipment methods: DHL, TNT, FedEx
Packing Information
Safe export packaging: plastic bag + sponge + cartons with foam packing
How to Order
- Send us your drawing or standard code & size
- We will provide a quotation within 4 hours
- Agree on pricing and sign PO or Contract
- Make payment in advance
- If samples are required, we will produce them first
Frequently Asked Questions
Where is your factory located? How can I visit there?
Our factory is located at NO.27, ShangLang Road, XiaBian District, Chang'an town, Dongguan, China. All clients from home or abroad are warmly welcomed to visit us at any time.
When can I get the quotation or reply?
We typically respond within 4 hours after receiving your inquiry. For urgent requests, please notify us for priority handling.
Do you provide free samples?
Yes, we can provide samples free of charge, but freight costs are collected from the customer.
How do you ensure product quality?
We implement pre-testing before every manufacturing step and conduct final inspections before shipment. Our strict quality control system ensures high-quality parts.
What after-sales service do you provide?
We provide comprehensive after-sales service. After you receive our products, we follow up for feedback. Our experienced engineers are available to assist with any product-related questions.
If you are interested in our CNC machining parts, please don't hesitate to contact us! Thank you!
