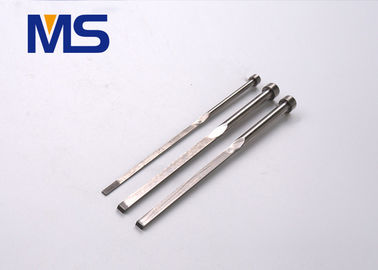

DIN 9810 Mould Ejector Pins 0.5mm Flat Position
High-precision flat ejector pins designed for plastic molding applications, manufactured to DIN 9810 standards with 0.5mm flat positioning.
Product Specifications
Available in multiple international standards: ISO 8020, DIN 9861, DIN 9844, DIN 9810, and customized specifications
| Material |
Carbide, ASP23, SKD11, SKD61, HSS, A2, M2, D2, SUJ2, S45C, etc. |
| Standard |
Dayton, Lane, DIN, ISO, MISUMI, EDM, FIBRO, MOELLER, HASCO, etc. |
| Size |
Customized according to your drawings or product standards |
| Place of Origin |
Dongguan, Guangdong, China |
| Heat Treatment |
Available |
| Surface Work |
TiCN, TiN, Aitain, Ticrn, nitriding, Black oxygened, Black coating, etc. |
| Tolerance |
±0.002mm |
| Polishness |
Close to Ra0.2 |
Main Products
We specialize in high-precision mould components including:
- Ejector pins and ejector series
- Slide retainers and Latch locks
- Date Stamps and Locating units
- Air poppet valves and Cooling systems
Familiar with HASCO, D-M-E, JIS, CUMSA, PROGRESSIVE, STRACK, SUPERIOR standards. Custom design and production available for special requirements.
Manufacturing Equipment
Equipment List
| Machine Type |
Brand |
Model |
Precision |
Quantity |
Origin |
| CNC |
TAKISAWA |
NEX-108 |
0.002mm |
4 |
Japan |
| WEDM |
SODICK |
AQ400LS |
0.003mm |
2 |
Japan |
| WEDM |
CHMER |
G435 |
0.005mm |
1 |
Taiwan |
| EDM |
CREATOR |
CJ-235 |
0.005mm |
4 |
Taiwan |
| Mirror EDM |
SODICK |
AM30LS |
0.003mm |
2 |
Japan |
| EDM |
MAKIMO |
EDGE2 |
0.002mm |
1 |
Japan |
| Desktop Lathe |
JINGCHENG |
YB-15 |
0.05mm |
4 |
China |
| Desktop Lathe |
JINGCHENG |
YB-25 |
0.05mm |
2 |
China |
| OD Grinder |
HOTMAN |
FX-03 |
0.002mm |
5 |
China |
| ID Grinder |
HOTMAN |
FX-05 |
0.002mm |
3 |
China |
| Centerless Grinder |
HOTMAN |
FX-12S |
0.001mm |
2 |
China |
| Surface Grinder |
SHUGUANG |
614 |
0.001mm |
4 |
China |
| Surface Grinder |
SHUGUANG |
618 |
0.001mm |
2 |
China |
| EDM Drilling |
ZENBANG |
ZB-03 |
0.01mm |
1 |
Taiwan |
| Miller |
TOPINR |
AVA |
0.01mm |
2 |
Taiwan |
Large Stock Availability
Payment & Shipping
Payment Terms: T/T, PayPal, Western Union (50% deposit, balance before shipment)
Shipping Methods: DHL, TNT, FedEx available
Packing Information
Safe export packaging: plastic bag + sponge + cartons with foam packing for secure transportation
How to Order
- Send us your drawing or standard code & size
- We provide quotation within 4 hours
- Agree on pricing and sign PO or Contract
- Make advance payment
- Sample production available upon request
Frequently Asked Questions
Where is your factory located? How can I visit there?
Our factory is located at NO.27, ShangLang Road, XiaBian District, Chang'an town, Dongguan, China. All clients are warmly welcomed to visit us at any time.
When can I get the quotation or reply?
We typically respond within 4 hours after receiving your inquiry. For urgent requests, please notify us for priority handling.
Do you provide free samples?
Yes, we offer free samples with freight collect.
How do you ensure product quality?
We implement pre-testing before each manufacturing step and conduct final inspections before shipment, ensuring high quality through our strict quality control system.
What after-sales service do you provide?
We provide comprehensive after-sales service, including follow-up after delivery and technical support from our experienced engineers for any product-related questions.
Interested in our precision mould ejector pins? Contact us today for quotations and technical support!
