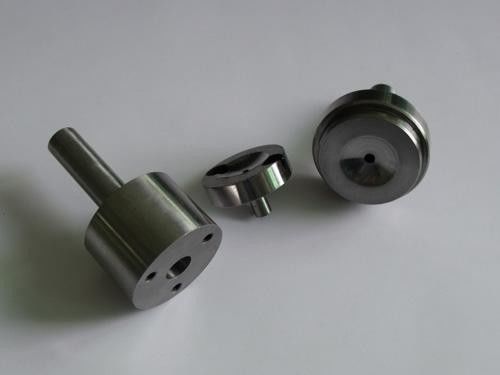

High Heat Resistance Sprue Taper Bush , Skd61 Plastic Injection Mould Parts

High Heat Resistance Sprue Taper Bush , Skd61 Plastic Injection Mould Parts
High Heat Resistance Sprue Taper Bush , Skd61 Plastic Injection Mould Parts

Large Image :  High Heat Resistance Sprue Taper Bush , Skd61 Plastic Injection Mould Parts

Product Details:
Place of Origin: China
Brand Name: SENLAN
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: 1-30USD
Packaging Details: Coated with anticorrosive oil, packed in carton box
Delivery Time: 7-15 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 2000pcs/week
Contact Now

High Heat Resistance Sprue Taper Bush , Skd61 Plastic Injection Mould Parts

Description
Material: Skd61 Hardness: HRC48-52
Accuracy: +/-0.01mm Standard: HASCO,MISUMI,JIS,DME,DIN
Application: Plastic Injection Mould Heat Treatment: Vacuumed
Highlight:

sprue bushing injection molding

,

mold bushings

High Heat Resistance Sprue Taper Bush, SKD61 Plastic Injection Mould Parts
Precision Sprue Bushing for Injection Moulds

High-quality sprue bushing designed for optimal performance in plastic injection mould applications, featuring excellent heat resistance and superior polish.

Product Features
  • Premium sprue bushing construction
  • Available materials: S45C, SKD11, SKD61
  • Custom specifications available
  • Excellent tolerance control
  • Superior surface polish
Material Specifications
Material Inner Hardness Surface Hardness Heat Treatment
S45C SR HRC50~55 Partial -
SKD11 HRC58~62 HRC58~62 Vacuumed
SKD61 HRC34~38 HV900~1100 Nitrided
SKD61 HRC50~54 HRC50~54 Vacuumed
High Heat Resistance Sprue Taper Bush , Skd61 Plastic Injection Mould Parts 0
Product Range

SENLAN manufactures a comprehensive line of standard and customized mould components including ejector pins, punches, insert pins, cavity pins, core pins, mold cores, and various mould accessories and die parts.

Why Choose SENLAN
  • Specialized manufacturer of precision core pins, cavity pins, and insert pins
  • 8+ years of experience in stamping die parts, injection die parts, auto parts, and metal-working products
  • Advanced production equipment with experienced operators
  • Extensive OEM and ODM experience for customer-specific requirements
  • Competitive pricing, superior quality, and reliable on-time delivery
Production Equipment
Equipment Type Brand Model Precision Quantity Origin
CNC TAKISAWA NEX-108 0.002mm 4 Japan
WEDM SODICK AQ400LS 0.003mm 2 Japan
WEDM CHMER G435 0.005mm 1 Taiwan
EDM CREATOR CJ-235 0.005mm 4 Taiwan
Mirror EDM SODICK AM30LS 0.003mm 2 Japan
EDM MAKIMO EDGE2 0.002mm 1 Japan
Desktop Lathe JINGCHENG YB-15 0.05mm 4 China
Desktop Lathe JINGCHENG YB-25 0.05mm 2 China
OD Grinder HOTMAN FX-03 0.002mm 5 China
ID Grinder HOTMAN FX-05 0.002mm 3 China
Centerless Grinder HOTMAN FX-12S 0.001mm 2 China
Surface Grinder SHUGUANG 614 0.001mm 4 China
Surface Grinder SHUGUANG 618 0.001mm 2 China
EDM Drilling ZENBANG ZB-03 0.01mm 1 Taiwan
Miller TOPINR AVA 0.01mm 2 Taiwan
Payment & Shipping

Payment Terms: T/T, PayPal, Western Union - 50% deposit, balance before shipment

Shipping Methods: DHL, TNT, FedEx, UPS, and sea freight available

Quality Assurance
Testing Equipment Digital Height Gauge, Caliper, Coordinate Measuring Machine, Projection Machine, Roughness Tester, Hardness Tester
Quality Control Process
  • Technician self-check during production
  • Engineer spot checks during production
  • QC inspection after mass production completion
  • Technical sales team final check before shipping
Main Markets North America, South America, Eastern Europe, Western Europe, Northern Europe, Southern Europe, South Asia, Africa
Packaging & Delivery
Packaging Coated with anti-corrosive oil, packed in carton boxes with bubble wrap, includes QA report
Delivery Options DHL, FedEx, UPS, TNT, Sea Freight
