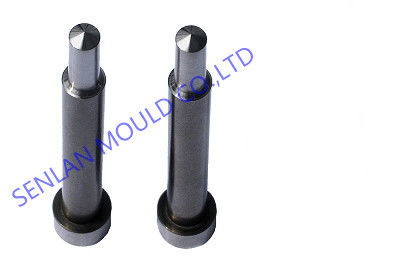

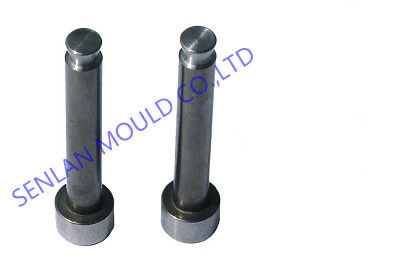

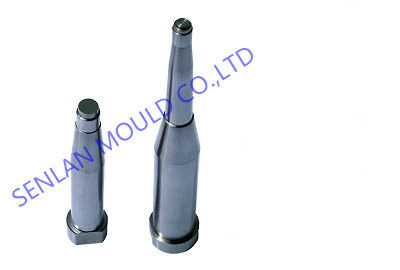

Precision Multi-Cavity Mold Pins | 100% Interchangeable Injection Tooling

Product Overview

Durable plastic injection molding pins designed for multi-cavity mould systems require high dimensional consistency, stable alignment, and long service life. Senlan Precision manufactures custom injection molding pins that are well-matched across multi-cavity configurations to ensure uniform ejection performance and reduced mould wear. All pins are produced strictly according to customer drawings and mould specifications.

Key Features & Advantages

• Designed for multi-cavity moulds with consistent pin matching

• High durability for long production cycles

• Precise dimensional control for uniform ejection performance

• Stable alignment across all cavities

• Reduced mould wear and maintenance frequency

• CNC machined for tight tolerances

• Custom / OEM manufacturing based on Built-to-Print requirements

Applications / Industry Use

• Plastic bottle and packaging injection moulds

• Bottle cap and closure mould systems

• Medical plastic consumable moulds

• High-output multi-cavity injection moulds

• Precision plastic mould tooling requiring stable ejection

Mould Structure & Design Description

Injection molding pins in multi-cavity moulds must maintain consistent length, straightness, and surface condition to ensure synchronized ejection. Poor pin matching can lead to uneven part release, increased wear, or mould damage. Senlan Precision focuses on controlled machining and batch consistency to ensure all pins within a mould set are dimensionally well-matched and perform uniformly throughout production.

Manufacturing Capability & CNC Machining

Senlan Precision operates advanced CNC machining and finishing equipment to achieve stable accuracy and repeatability.

Manufacturing capabilities include:

• High-precision CNC turning and milling

• Precision grinding for straightness and surface finish

• EDM machining for complex pin features

• Tight tolerance control for multi-cavity consistency

• In-process and final dimensional inspection

Key equipment includes Japanese MAKINO and American HARDINGE precision CNC machines, supporting reliable production of mould components.

Custom Development / OEM Cooperation Process

1. Customer provides drawings or technical specifications

2. Engineering review for cavity matching and tolerance requirements

3. CNC machining and controlled finishing

4. In-process inspection for dimensional consistency

5. Final quality verification and batch matching

6. Export packaging and delivery

All projects are handled under a Built-to-Print OEM / ODM cooperation model.

Quality Control & Export Experience

• Incoming material inspection

• In-process dimensional checks during machining

• Batch consistency verification for multi-cavity sets

• Final inspection before shipment

• Experience supplying precision mould components to international markets

Quality management follows standardized industrial manufacturing procedures.

Related Products

• Precision ejector pins for injection moulds

• Core pins for bottle cap and closure moulds

• Multi-cavity mould inserts

• Custom CNC machined mould components

• Wear-resistant mould pins and sleeves

FAQ – Technical & Purchasing

Q1: How do you ensure pins are well-matched for multi-cavity moulds?
Pins are machined in controlled batches with strict dimensional inspection to ensure consistency across all cavities.

Q2: Are these injection molding pins standard products?
No. All pins are custom-manufactured according to customer drawings and mould requirements.

Q3: Can you support high-volume production moulds?
Yes. The pins are designed for durability and stable performance in high-cycle moulding operations.

Q4: What information is required for quotation?
Drawings, material requirements, tolerances, quantity, and application details.

Request a Quote

For technical quotation and engineering evaluation, please provide your drawings, cavity quantity, tolerance requirements, and application conditions.
Our engineering team will review your request and respond accordingly.
