Bottle Cap Mold Guide Components | High-Cycle S136 & SKD61 Pins and Bushings

Product Overview

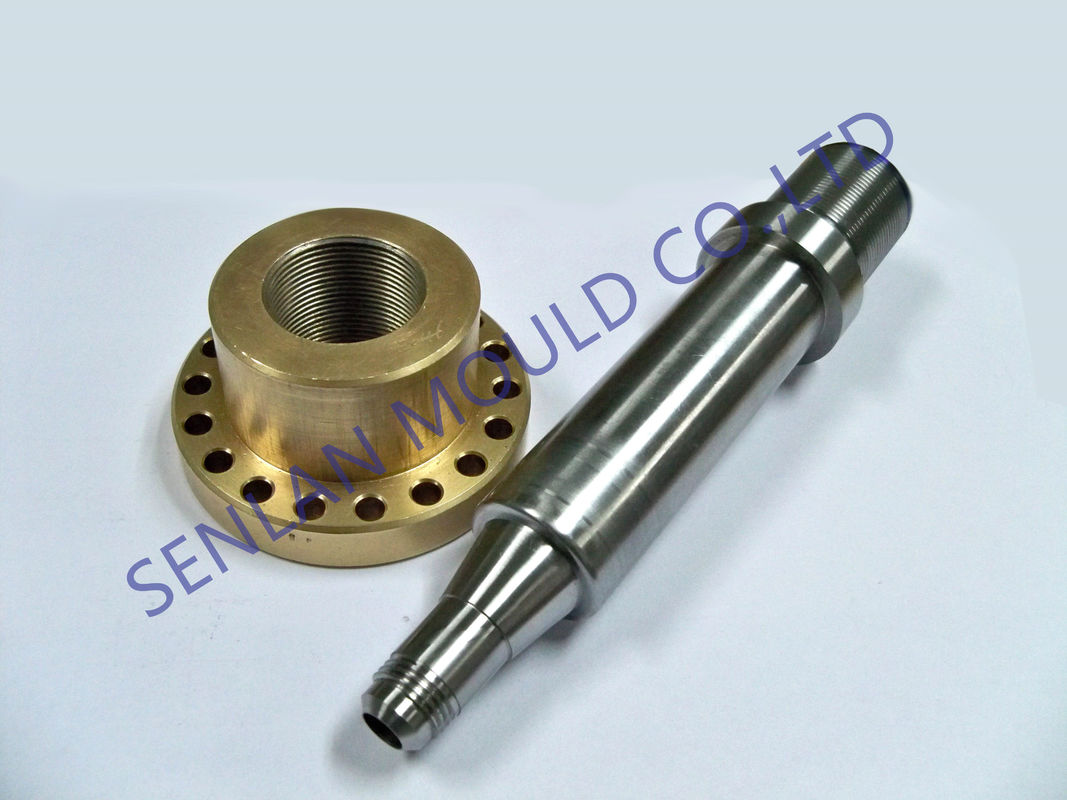

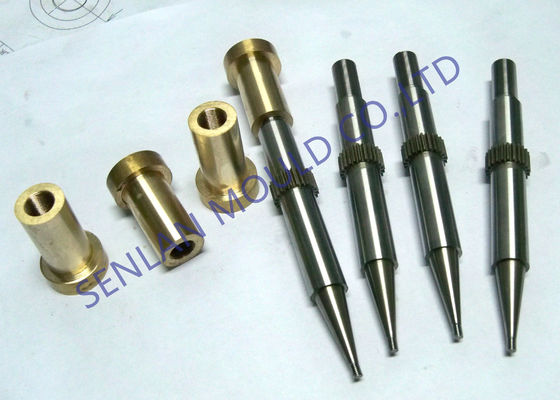

SKD61 and S136 mold guide pins and bushings are precision alignment components used in plastic bottle cap injection moulds. Senlan Precision manufactures these guide components according to customer drawings, ensuring accurate positioning, stable mould movement, and long service life under high-cycle injection molding conditions.

Key Features & Advantages

• Manufactured from SKD61 or S136 tool steel

• High dimensional accuracy for precise mould alignment

• Stable performance under repeated opening and closing cycles

• Controlled hardness and surface finish based on application needs

• Reduced wear between moving mould plates

• Suitable for multi-cavity bottle cap mould systems

• OEM / custom production under built-to-print specifications

Applications / Industry Use

• Plastic bottle cap injection moulds

• Packaging moulds for closures and sealing components

• High-speed, multi-cavity mould systems

• Medical and hygiene-related plastic packaging moulds

• Precision injection mould tooling assemblies

Mould Structure & Design Description

Guide pins and bushings are critical alignment elements within injection mould assemblies. In bottle cap moulds, they ensure accurate positioning between the core and cavity plates during mould opening and closing. Proper material selection and machining accuracy help minimize misalignment, reduce wear, and maintain consistent mould performance throughout extended production runs.

Manufacturing Capability & CNC Machining

Senlan Precision applies advanced machining and inspection processes to guarantee dimensional stability and surface quality. High-precision machining centers from MAKINO and turning and grinding equipment from HARDINGE are used to meet tight tolerance and concentricity requirements.

Manufacturing processes include:

• CNC turning and milling

• Precision grinding of guide surfaces

• Heat treatment and hardness control

• Dimensional and geometric inspection

Custom Development / OEM Cooperation Process

1. Customer provides drawings or technical specifications

2. Material and tolerance review by engineering team

3. Process planning and machining preparation

4. Precision manufacturing and in-process inspection

5. Final quality inspection

6. Export-safe packaging and shipment

All guide pins and bushings are manufactured strictly under a Built-to-Print OEM model.

Quality Control & Export Experience

• Incoming material inspection

• In-process dimensional control

• Final inspection before shipment

• Standardized quality management procedures

• Experience supplying mould components to international customers

Related Products

• Mold core pins and sleeves

• Threaded core inserts for bottle caps

• Multi-cavity mould alignment components

• Custom injection mould parts

• Precision mould wear components

FAQ – Technical & Purchasing

Q1: What is the difference between SKD61 and S136 for guide components?
SKD61 offers good toughness and thermal stability, while S136 provides higher corrosion resistance for specific mould environments.

Q2: Are these guide pins and bushings made to standard sizes?
No. All parts are manufactured according to customer-provided drawings and specifications.

Q3: Can these components be used in high-speed multi-cavity moulds?
Yes. They are suitable for high-cycle, multi-cavity bottle cap mould systems.

Q4: Do you provide mould design services?
No. We focus exclusively on manufacturing based on customer drawings (Built-to-Print).

Request a Quote

For a technical quotation, please provide drawings, material requirements, tolerance details, and application information.
Our engineering team will review your request and respond accordingly.
