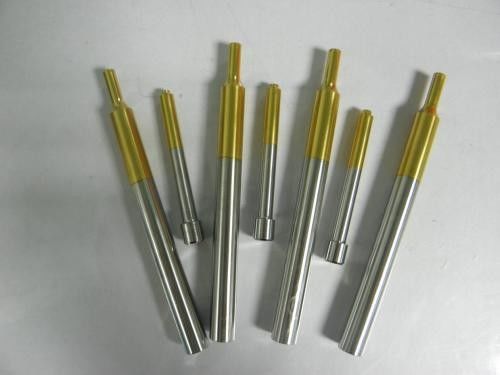

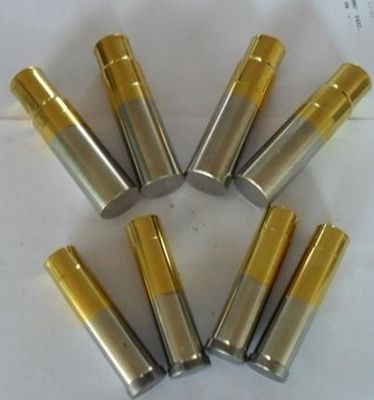

60-62 HRC Hardness Precision Ground Punch Pins with TiN Coating for High Wear Resistance

60-62 HRC Hardness Precision Ground Punch Pins with TiN Coating for High Wear Resistance
60-62 HRC Hardness Precision Ground Punch Pins with TiN Coating for High Wear Resistance 60-62 HRC Hardness Precision Ground Punch Pins with TiN Coating for High Wear Resistance

Large Image :  60-62 HRC Hardness Precision Ground Punch Pins with TiN Coating for High Wear Resistance

Product Details:
Place of Origin: China
Brand Name: SENLAN
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: 1-10USD
Packaging Details: Coated with anticorrosive oil, packed in carton box
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 2000pcs/week
Contact Now

60-62 HRC Hardness Precision Ground Punch Pins with TiN Coating for High Wear Resistance

Description
Material :: SKH9/SKH55/SKH59/ASP23/ASP60 Hardness:: 60 ~ 62 HRC
Coating: Gold And Black Color TiN Coating Stardard: MISUMI ,DIN ,JIS，HASCO，AISI Etc
Highlight:

precision punch pins

,

hss piercing punches

,

62 HRC Precision Ground Pins

60-62 HRC Hardness Precision Ground Pins HSS Carbide Conical Head With Coating
HSS Carbide Conical Head Punch Pins Stepped Round Die Punch Pins With Coating
Material
SKH9(M2) SKH55(M35) SKH59(M42) ASP30 ASP23 ASP60 and more
Hardness
60-62 HRC or depends on processing materials
Specification
  • Standards: MISUMI, HASCO, DME, DAYTON
  • Size tolerance within ±0.001mm
  • Axiality within 0.002mm
  • Roundness within 0.0015mm
  • Polishing: can make close to Ra0.4, standard is R0.8
  • Coating service: TiN (yellow), TiCN and DLC (black)
  • Further dimensions, lengths and materials available on request
  • The punch & die can be replaced when worn
Machinery & Equipment
  • CNC machining center; CNC milling machine, CNC lathe machine
  • Sodick EDM, Sodick Wire-cutting
  • OD Grinding, ID Grinding, Surface grinding machine
Punch Surface Coating
TiN - (Titanium Nitride) PVD Coating
Alteration Order Code: TIN -- Add 3 days to Delivery
TiN is the least expensive and most commonly used PVD (Physical vapor deposition) wear resistant coating offering:
  • Excellent wear resistance on cutting edges and wear surfaces
  • Excellent lubricity
  • Suitable thermal stability for most cold work metalworking applications
  • High microhardness of 2300 Vickers
Note: TiN works best when used with lubricants and is not recommended for uses in stainless steel, nickel, or copper applications
TiCN - (Titanium Carbon Nitride) PVD Coating
Alteration Order Code: TiCN -- Add 4 days to Delivery
TiCN has the broadest range of application use regarding PVD coating including stainless steel, nickel, and copper metal working operations offering:
  • Higher hardness and lower coefficient of friction than TiN coating, resulting in extremely high wear resistance on cutting edges and wear surfaces
  • Improved lubricity
  • Extremely high micro hardness of 3000 Vickers
Note: Suitable for uses in stainless steel, nickel, or copper applications
TiAlN - (Titanium Aluminum Nitride) PVD Coating
Alteration Order Code: TAN -- Add 3 days to Delivery
TiAlN is ideal for applications where surface heat is generated, which converts the aluminum constituent to aluminum oxide for added protection against shear stress and wear resistance on cutting edges.
  • High thermal stability
  • Extremely high micro hardness of 3400 Vickers
Further Information
Testing Machine Digital Height Gauge, caliper, Coordinate measuring machine, projection machine, roughness tester, hardness tester and more
QC 1) Technicians self-check in production
2) Engineer spot check in production
3) QC inspects after mass production finished
4) International sales who were trained the technical know-how spot check before shipping
Main Markets North America, South America, Eastern Europe, West Europe, North Europe, South Europe, South Asia, Africa
Packing & Delivery
Package Coated with anticorrosive oil, packed in carton box with bubble wrap, together with QA report
Express DHL, FedEx, UPS, TNT, by Sea
Main Products
  • Core pin, cavity pin, insert pin etc
  • HSS punch, Precision punch, Special-shaped punch
  • Ejector pins, ejector sleeve, two-stage ejector pins etc
  • Guide pillars, Guide bushings, Guide post set
  • Slide Core Units, Latch locks, locating Series
Spot Light of SENLAN
  • Established in 2006
  • Factory size: 2500 square meters
  • Research & Development Group: 6 people
  • Equipment & Machine: all imported precision ones
  • Good reputation in Mold Components Area
  • One-step service for your time and cost savings
  • Complete quality management system
