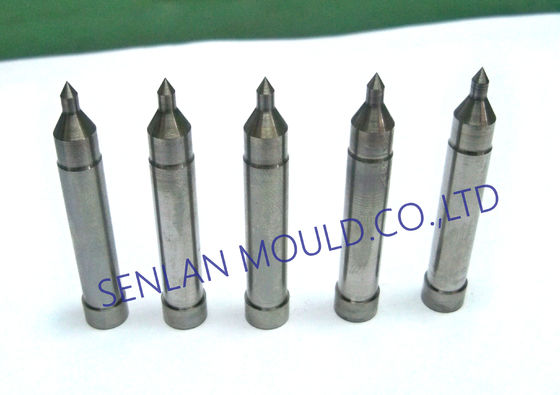

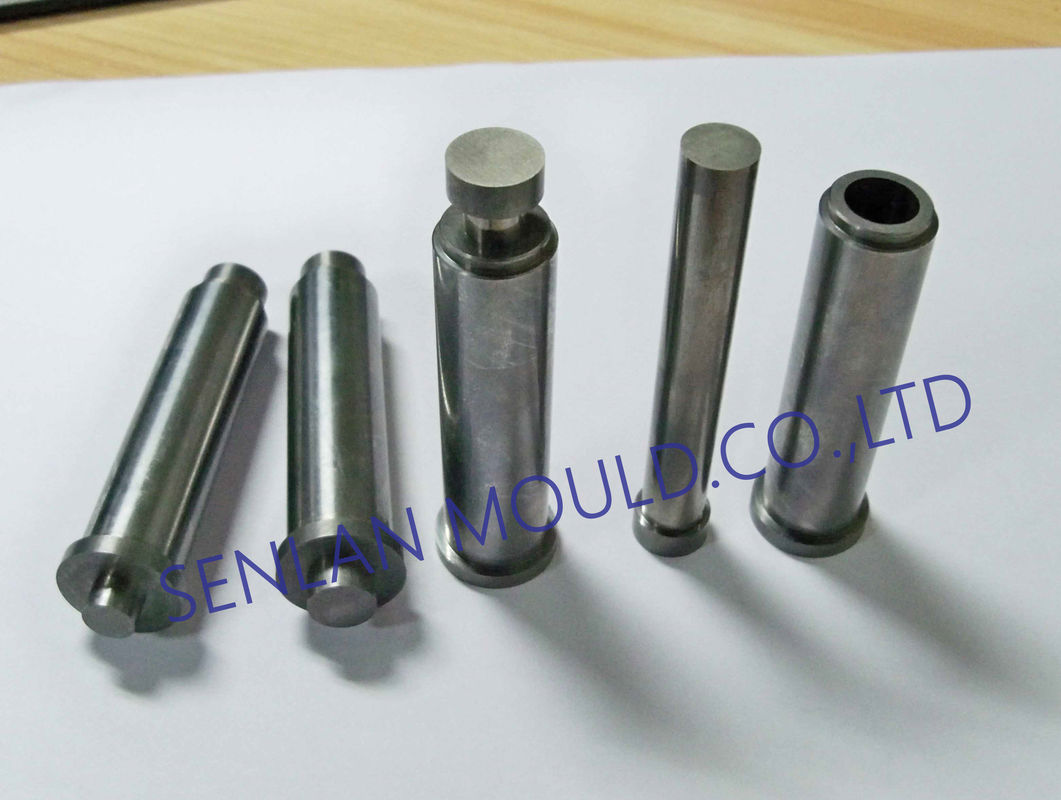

High Polished Runner Lock Pin , Hss Piercing Punches Customized Dimensions

High Polished Runner Lock Pin , Hss Piercing Punches Customized Dimensions
High Polished Runner Lock Pin , Hss Piercing Punches Customized Dimensions High Polished Runner Lock Pin , Hss Piercing Punches Customized Dimensions

Large Image :  High Polished Runner Lock Pin , Hss Piercing Punches Customized Dimensions

Product Details:
Place of Origin: China
Brand Name: SENLAN
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: 1-10USD
Packaging Details: Coated with anticorrosive oil, packed in carton box
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 2000pcs/week
Contact Now

High Polished Runner Lock Pin , Hss Piercing Punches Customized Dimensions

Description
Material :: HSS - High Speed Tool Steel Hardness:: 60 ~ 62 HRC
Stardard: MISUMI ,DIN ,JIS，HASCO，AISI Etc Product:: Vehicle Mould
Shaping Mode:: Punching Mold
Highlight:

hole punch pins

,

hss piercing punches

,

High Polished Runner Lock Pin

High Polished Runner Lock Pin, HSS Piercing Punches
Precision-engineered runner lock pins and HSS material stamping punches with customizable dimensions for industrial applications.
Product Specifications
Material Options
Carbide / ASP23 / M2 / SKH51 / D2 / SKD11
Hardness
60-62 HRC or customized based on processing materials
Technical Specifications
  • Standards: MISUMI, HASCO, DME, DAYTON
  • Size tolerance within ±0.001mm
  • Axiality within 0.002mm
  • Roundness within 0.0015mm
  • Polishing: Close to Ra0.4 (standard is R0.8)
  • Coating services: TiN, TiCN, and DLC available
  • Custom dimensions, lengths, and materials available on request
  • Replaceable punch & die components when worn
Manufacturing Equipment
  • CNC machining centers and milling machines
  • CNC lathe machines
  • Sodick EDM and wire-cutting equipment
  • OD grinding, ID grinding, and surface grinding machines
Punch Surface Coating Options
TiN - Titanium Nitride PVD Coating
Order Code: TIN | Additional 3 days delivery time
  • Excellent wear resistance on cutting edges and wear surfaces
  • Superior lubricity properties
  • Suitable thermal stability for most cold work metalworking
  • High microhardness of 2300 Vickers
TiN works best when used with lubricants and is not recommended for stainless steel, nickel, or copper applications.
TiCN - Titanium Carbon Nitride PVD Coating
Order Code: TiCN | Additional 4 days delivery time
  • Higher hardness and lower coefficient of friction than TiN
  • Extremely high wear resistance on cutting edges and wear surfaces
  • Improved lubricity characteristics
  • Extremely high micro hardness of 3000 Vickers
Suitable for stainless steel, nickel, and copper applications.
TiAlN - Titanium Aluminum Nitride PVD Coating
Order Code: TAN | Additional 3 days delivery time
  • Ideal for applications with surface heat generation
  • Aluminum constituent converts to aluminum oxide for added protection
  • Enhanced resistance against shear stress and wear
  • High thermal stability
  • Extremely high micro hardness of 3400 Vickers
Quality Assurance
Testing Equipment Digital Height Gauge, Caliper, Coordinate Measuring Machine, Projection Machine, Roughness Tester, Hardness Tester
Quality Control Process
1) Technician self-check during production
2) Engineer spot checks during production
3) QC inspection after mass production
4) Technical sales verification before shipping
Main Markets North America, South America, Eastern Europe, Western Europe, Northern Europe, Southern Europe, South Asia, Africa
Packaging & Delivery
Packaging Coated with anti-corrosive oil, packed in carton box with bubble wrap, includes QA report
Shipping Methods DHL, FedEx, UPS, TNT, Sea Freight
Product Range
  • Core pins, cavity pins, insert pins
  • HSS punches, precision punches, special-shaped punches
  • Ejector pins, ejector sleeves, two-stage ejector pins
  • Guide pillars, guide bushings, guide post sets
  • Slide core units, latch locks, locating series
Company Overview
  • Established in 2006
  • Factory size: 2500 square meters
  • Research & Development Team: 6 specialists
  • Equipment: All imported precision machinery
  • Strong reputation in mold components industry
  • One-step service for time and cost efficiency
  • Complete quality management system
