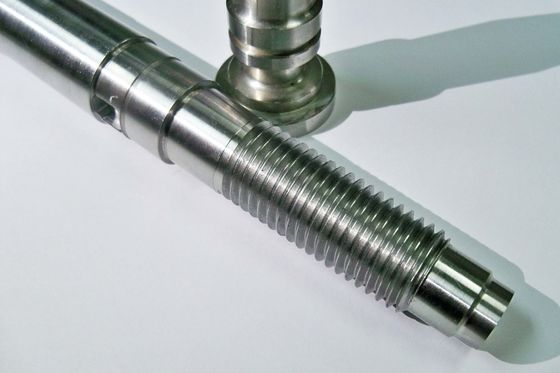

Precision Threaded Mold Cores | Custom Optical Cap Tooling Components

Product Overview

Custom made plastic mould parts with mold thread cores are precision functional components used in injection molds for optical thread cap applications. These thread cores are manufactured strictly according to customer drawings, focusing on dimensional accuracy, thread profile consistency, and surface integrity to ensure reliable demolding and stable performance in high-precision plastic cap molding systems.

Key Features & Advantages

• Built-to-print manufacturing based on customer-provided drawings

• High-precision thread geometry for optical and fine-pitch caps

• Stable dimensional control for repeated molding cycles

• Controlled surface finish to reduce friction and wear

• Suitable for multi-cavity and high-output injection molds

• Compatible with complex unscrewing or thread-release mechanisms

Applications / Industry Use

• Plastic bottle caps and closures with optical or fine threads

• Precision packaging molds for transparent or functional caps

• Medical and pharmaceutical container molding

• Injection molds requiring high thread accuracy and consistency

• Multi-cavity molds for mass production environments

Mold Structure & Design Description

Mold thread cores are critical components used to form internal or external threads in injection-molded caps. For optical thread cap applications, the core design must ensure accurate thread angles, pitch, and concentricity. Senlan Precision manufactures thread cores with optimized structural design to support smooth demolding, stable engagement with mold mechanisms, and consistent thread formation throughout the mold’s service life.

Manufacturing Capability & CNC Machining

Senlan Precision is equipped with advanced CNC machining and finishing systems, including equipment from MAKINO (Japan) and HARDINGE (USA).
Our capabilities include:

• High-precision CNC turning and milling

• EDM and wire-cut processing for complex thread profiles

• Precision grinding and surface finishing

• Tight tolerance control for concentricity and thread accuracy

• Flexible production from prototype to batch manufacturing

Custom Development / OEM Cooperation Process

1. Customer submits drawings, 3D models, or technical specifications

2. Engineering evaluation of tolerances, materials, and thread design

3. Confirmation of manufacturing process and inspection criteria

4. Precision machining and in-process quality control

5. Final inspection and dimensional verification

6. Secure packaging and export shipment

All products are manufactured strictly under a Built-to-Print OEM model.

Quality Control & Export Experience

• Incoming material inspection and traceability

• In-process dimensional monitoring

• Final inspection using calibrated measuring instruments

• Quality documentation aligned with export requirements

• Experience supplying precision mold components to international customers

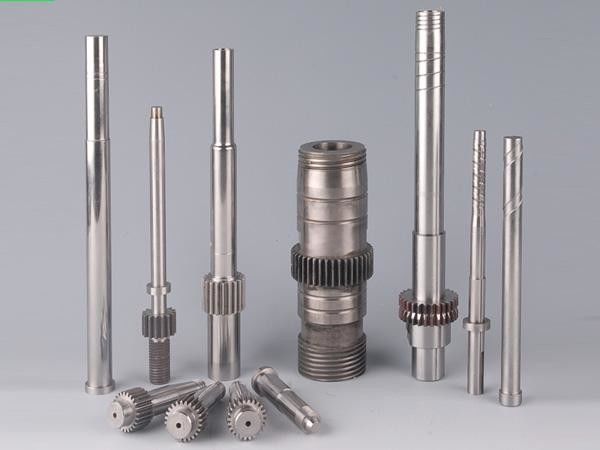

Related Products

• Thread core inserts for plastic caps

• Precision mold core pins and sleeves

• Cavity inserts for packaging molds

• Multi-cavity mold components

• Custom non-standard injection mold parts

FAQ – Technical & Purchasing

Q1: Can you manufacture optical thread cores based only on drawings?
Yes. All products are manufactured strictly according to customer-provided drawings or models.

Q2: Are these thread cores suitable for multi-cavity molds?
Yes. The design and manufacturing process support multi-cavity and high-cycle molding applications.

Q3: How do you control thread accuracy?
Thread geometry and concentricity are controlled through precision machining, EDM processing, and final inspection.

Q4: Do you support prototype orders?
Yes. Prototype, pilot production, and batch orders are all supported.

Request a Quote

To receive a quotation, please provide your drawings, material requirements, surface finish specifications, and expected order quantity.
Our engineering team will review your request and provide a technical and commercial proposal.
