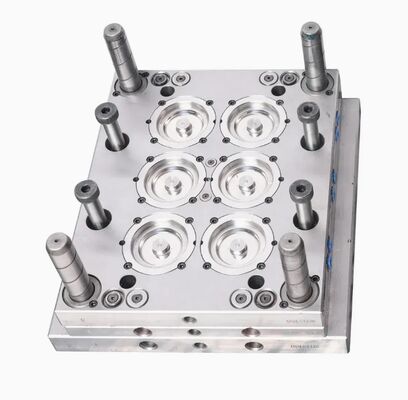

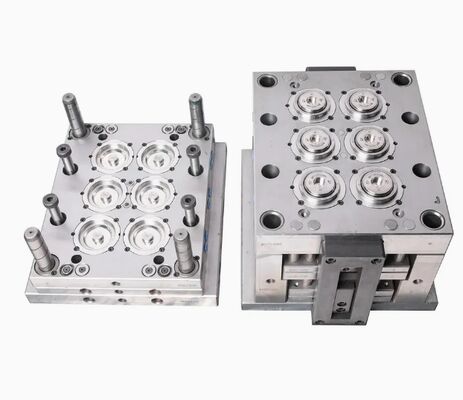

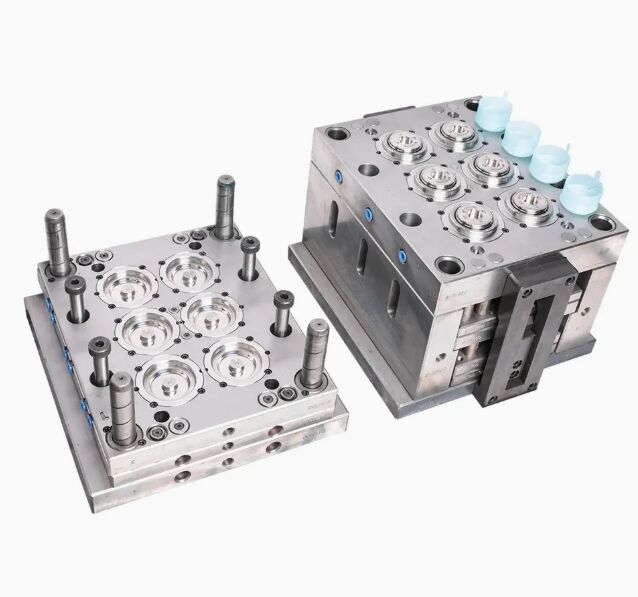

Multi-Cavity Snap Cap Injection Mould for Plastic Bottle Caps

Product Overview

The Multi-Cavity Snap Cap Injection Mould is designed for efficient production of plastic snap-fit bottle caps widely used in packaging industries. Snap caps are closures that lock securely onto containers through a snap-fit mechanism rather than threaded structures, making them ideal for high-speed packaging lines.

This injection mould integrates a multi-cavity structure with optimized mold design to ensure consistent cap geometry, reliable snap locking performance, and stable production cycles. It is suitable for high-volume manufacturing environments where efficiency, precision, and product consistency are essential.

Manufactured with high-grade mold steels and precision machining technologies, this mold solution supports long production runs while maintaining excellent dimensional stability.

Product Description

The snap cap injection mould is engineered to produce plastic closures that attach to containers through a snap-fit locking system. Unlike threaded caps, snap caps rely on precise internal locking rings or beads that secure the cap onto the container neck.

To achieve this, the mould is designed with highly accurate core and cavity structures that ensure proper snap engagement and easy cap removal when required.

Key design features include:

• Precision snap-fit forming cavity design

• Optimized plastic flow distribution

• High-efficiency cooling channels

• Durable core and cavity inserts

• Smooth demolding structures

The mould can be configured with different cavity numbers depending on the production capacity required.

Typical configurations include:

• 8 cavity snap cap mould

• 16 cavity snap cap mould

• 24 cavity snap cap mould

• 32 cavity snap cap mould

These molds are ideal for continuous production where reliable cap locking performance and high productivity are required.

Applications

Snap caps are widely used in packaging industries because they provide quick and convenient sealing for containers.

Typical applications include:

Beverage Packaging

• Drinking bottle snap caps

• Juice bottle caps

Food Packaging

• Yogurt container caps

• Snack container lids

Cosmetic Packaging

• Cream container caps

• Cosmetic jar lids

Household Packaging

• Cleaning product bottle caps

• Household chemical container closures

The mould is suitable for processing common thermoplastic materials such as:

• PP (Polypropylene)

• PE (Polyethylene)

• HDPE

Precision & Manufacturing Capabilities

Our company manufactures high-precision injection moulds using advanced machining equipment and strict quality control standards.

Our manufacturing capabilities include:

• High-precision CNC machining centers

• Wire EDM cutting

• Mirror EDM cavity finishing

• Precision surface grinding and polishing

• Professional heat treatment

• Dimensional tolerance up to ±0.005 mm

Each mould is assembled and inspected carefully, and trial injection tests are conducted before shipment to ensure reliable production performance.

Advantages for Packaging Manufacturers

For manufacturers producing plastic bottle caps, choosing the right mould directly affects productivity and product quality.

Our snap cap moulds provide the following advantages:

Fast Production Cycles

Multi-cavity mold structures enable higher output per injection cycle.

Reliable Snap Lock Performance

Precision cavity design ensures consistent snap engagement between cap and container.

Stable Product Dimensions

Accurate machining guarantees uniform cap thickness and locking structures.

Long Mold Service Life

Premium mold materials and professional heat treatment extend mold durability.

Reduced Maintenance Requirements

Optimized mold structure improves production stability and reduces downtime.

What We Need for Quotation

To prepare an accurate quotation and mold design proposal, please provide the following information:

• Snap cap 3D drawing or product sample

• Cap diameter and locking structure details

• Required number of mold cavities

• Plastic material used (PP / PE / HDPE)

• Expected production capacity

• Injection molding machine specifications (optional)

Our engineering team will analyze your project and recommend the most suitable mould solution.

FAQ

What is a snap cap?

A snap cap is a plastic closure that seals a container through a snap-fit locking mechanism instead of threaded engagement.

What materials are commonly used for snap caps?

Snap caps are usually produced using PP, PE, or HDPE plastics due to their flexibility and durability.

Can the mould be customized for different cap designs?

Yes. All moulds are custom-designed according to customer drawings or product samples.

How many cavities can the mould have?

The number of cavities depends on the cap size and the injection machine capacity. Common configurations include 8, 16, 24, and 32 cavities.

Do you test moulds before shipment?

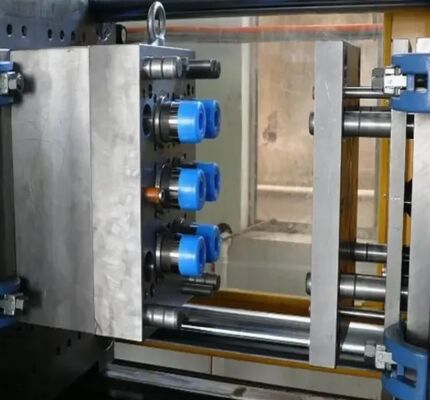

Yes. Every mould undergoes trial injection testing and quality inspection before delivery.

Contact Our Team

Engineering Inquiry

If you have technical drawings or samples of your snap cap product, send them to our engineering team for a professional mold design evaluation.

Purchasing Inquiry

Looking for a reliable snap cap injection mould manufacturer?
Contact us today to receive a competitive quotation and delivery schedule.

General Inquiry

Whether you need custom plastic cap moulds, packaging mould solutions, or precision mold components, our team is ready to assist you.

Send us your drawings today and start your snap cap mould project.
