12-Cavity Valve Gate Bottle Cap Injection Mold for Plastic Closure Production

Product Overview

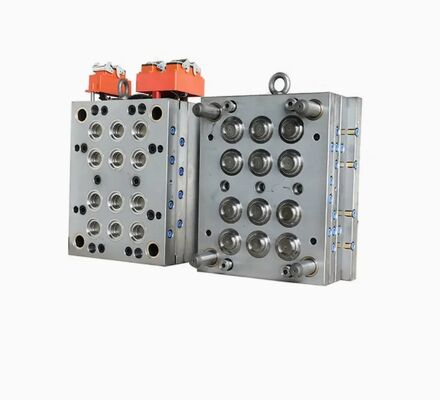

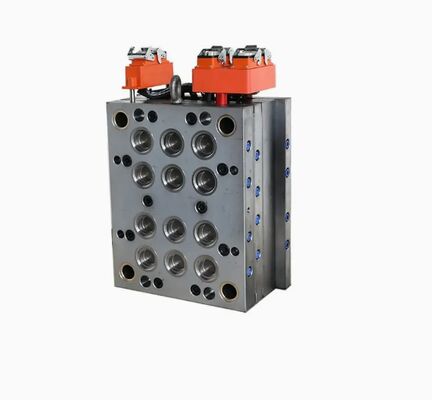

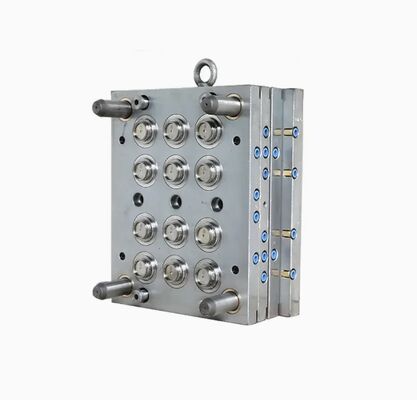

The 12-Cavity Valve Gate Bottle Cap Injection Mold is a precision-engineered mold designed for manufacturing high-quality plastic bottle caps used in packaging industries. Equipped with an advanced valve gate hot runner system, the mold allows precise control of molten plastic flow into each cavity, ensuring consistent product quality and improved surface finish.

Valve gate technology helps eliminate common molding defects such as gate marks, stringing, or uneven filling. This makes the mold especially suitable for high-performance packaging closures where appearance, sealing performance, and dimensional stability are critical.

With a compact 12-cavity configuration, the mold provides an efficient balance between production output, mold stability, and maintenance accessibility, making it suitable for both medium and large-scale manufacturing operations.

Product Description

The 12-cavity bottle cap injection mold is specifically designed for producing threaded plastic closures using a valve gate hot runner system. Unlike standard open gate systems, valve gates use controlled needle mechanisms that regulate the injection flow to each cavity.

This technology enables manufacturers to achieve:

• Cleaner gate appearance

• Precise plastic injection timing

• Balanced cavity filling

• Improved molding consistency

The mold structure incorporates high-precision core and cavity inserts, optimized cooling channels, and durable mold components to ensure stable long-term operation.

Key design features include:

• Valve gate hot runner technology

• Precision cap thread forming cavities

• Optimized cooling layout

• High-polish cavity surfaces

• Durable mold steel components

These features allow the mold to produce bottle caps with consistent dimensions, smooth surfaces, and reliable sealing performance.

Applications

The valve gate bottle cap mold is widely used for manufacturing plastic closures across multiple packaging industries.

Typical applications include:

Beverage Packaging

• Water bottle caps

• Soft drink bottle closures

• Functional beverage caps

Food Packaging

• Sauce bottle caps

• Cooking oil closures

• Condiment packaging caps

Cosmetic Packaging

• Shampoo bottle caps

• Lotion bottle closures

Household Product Packaging

• Detergent bottle caps

• Cleaning product closures

The mold supports commonly used thermoplastic materials, such as:

• PP (Polypropylene)

• HDPE

• PE

These materials are widely used in plastic closure manufacturing due to their durability and chemical resistance.

Precision & Manufacturing Capabilities

Our company manufactures high-precision packaging molds using advanced machining equipment and strict quality control procedures.

Our capabilities include:

• Advanced CNC machining centers

• Wire EDM cutting

• Mirror EDM finishing

• Precision surface grinding and polishing

• Professional heat treatment processes

• Dimensional tolerance control up to ±0.005 mm

Each mold undergoes detailed inspection and mold trial testing before shipment to ensure stable production performance.

Advantages of Valve Gate Cap Molds for Closure Manufacturers

Valve gate systems provide significant advantages for packaging manufacturers seeking improved production performance and product quality.

Superior Gate Appearance

Valve gate systems eliminate gate marks and improve the visual quality of the cap surface.

Balanced Injection Flow

Precise gate control ensures even plastic distribution across all cavities.

Reduced Defects

Controlled valve timing helps reduce common molding defects such as flash or short shots.

Longer Mold Service Life

High-quality mold materials and precision engineering extend the lifespan of the mold.

Higher Production Stability

Optimized mold design ensures reliable performance during continuous production.

What We Need for Quotation

To provide an accurate mold quotation and technical proposal, please send us the following information:

• Bottle cap 3D drawing or physical sample

• Cap diameter and thread specification

• Plastic material used (PP / PE / HDPE)

• Required production capacity

• Injection molding machine specifications (if available)

Our engineering team will evaluate your project and recommend the most suitable mold design.

FAQ

What is a valve gate system in injection molds?

A valve gate system uses a needle-controlled gate mechanism to regulate molten plastic flow into each cavity, improving surface quality and injection accuracy.

Why choose a valve gate cap mold?

Valve gate molds help reduce molding defects, improve cap appearance, and ensure balanced filling across multiple cavities.

Can the cavity number be customized?

Yes. While this mold design features 12 cavities, molds can be customized with different cavity numbers based on production requirements.

What mold steels are commonly used?

Common mold steels include S136, H13, and SKD61, known for their wear resistance and durability.

Do you perform mold testing before delivery?

Yes. All molds undergo trial injection testing and quality inspection before shipment.

Contact Our Team

Engineering Inquiry

Send us your bottle cap design drawings or samples, and our engineers will provide a professional mold design evaluation and technical proposal.

Purchasing Inquiry

Looking for a reliable valve gate bottle cap mold manufacturer?
Contact us today to receive a competitive quotation and production lead time.

General Inquiry

Whether you need plastic cap molds, packaging closure molds, or precision mold components, our team is ready to support your project.

Send us your drawings today and start your bottle cap mold project with confidence.
